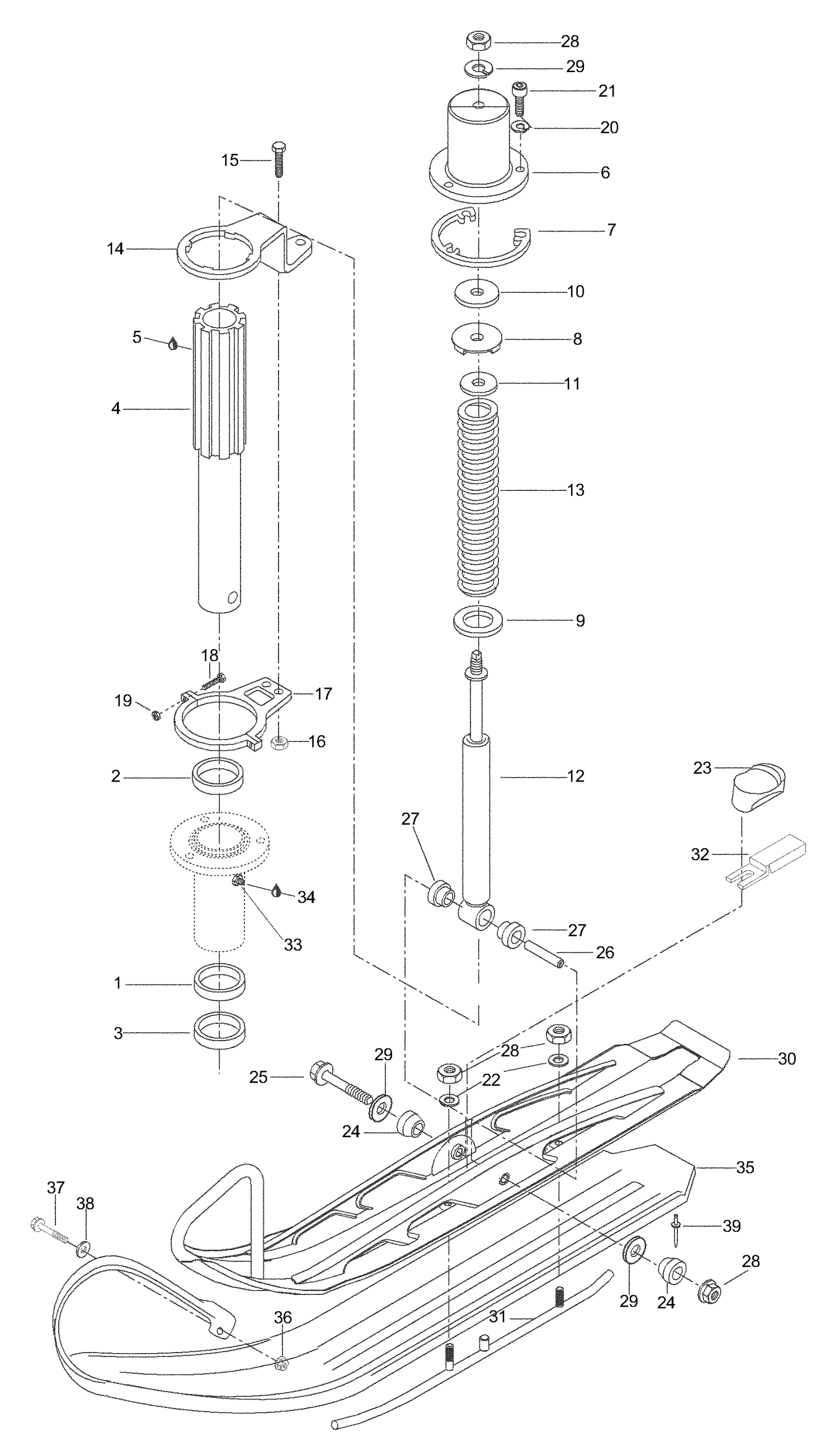

| Ref | Part Number | Description |
|---|
| 1 |
414803200 |
Lower cushion |
| 2 |
414803100 |
Upper cushion |
| 3 |
316373 |
Seal - Call your local BRP dealership |
| 4 |
5245362 |
Skileg 8 GR - Call your local BRP dealership |
| 5 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 6 |
5244225 |
Welded cover |
| 7 |
503145600 |
SPACER - Call your local BRP dealership |
| 8 |
570025800 |
Stopper |
| 9 |
549493 |
Bearingplate |
| 10 |
5440399 |
Plate |
| 11 |
549492 |
Holder plate |
| 12 |
23018 |
Shock |
| 13 |
5241330 |
Spring |
| 14 |
5244182 |
Steering Arm - Call your local BRP dealership |
| 15 |
40031 |
Screw M6x25 |
| 16 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 17 |
619380015 |
Support Ass'Y This part replaces 5344180. |
| 18 |
40146 |
Allen scr. M4 x 20 DIN 912m8.8 Zne(1=10p - Call your local BRP dealership |
| 19 |
33008 |
Nut elastic M4 |
| 20 |
20014 |
Lock washer |
| 21 |
40305 |
Allen screw M8x20 |
| 22 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 23 |
5341750 |
Rubber Absorber - Call your local BRP dealership |
| 24 |
547543 |
Rubber |
| 25 |
40354 |
Screw M10x125 |
| 26 |
549716 |
Sleeve |
| 27 |
572034500 |
Cushion |
| 28 |
33012 |
Nut elastic M10 |
| 29 |
20012 |
Washer A10.5DIN 9021-ST MUP(1=10pcs) - Call your local BRP dealership |
| 30 |
5245338 |
Ski |
| 31 |
5344021 |
Carbide ski runner |
| 32 |
5445639 |
Support plate |
| 33 |
34019 |
Grease Nipple M6 (1=10pcs) - Call your local BRP dealership |
| 34 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
| 35 |
Not |
Available As Spare Part - Skiliner - DOES NOT APPLY TO THIS MODEL |
| 36 |
Not |
Available As Spare Part - Nut elastic M6 - DOES NOT APPLY TO THIS MODEL |
| 37 |
Not |
Available As Spare Part - Screw M6x25 - DOES NOT APPLY TO THIS MODEL |
| 38 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
