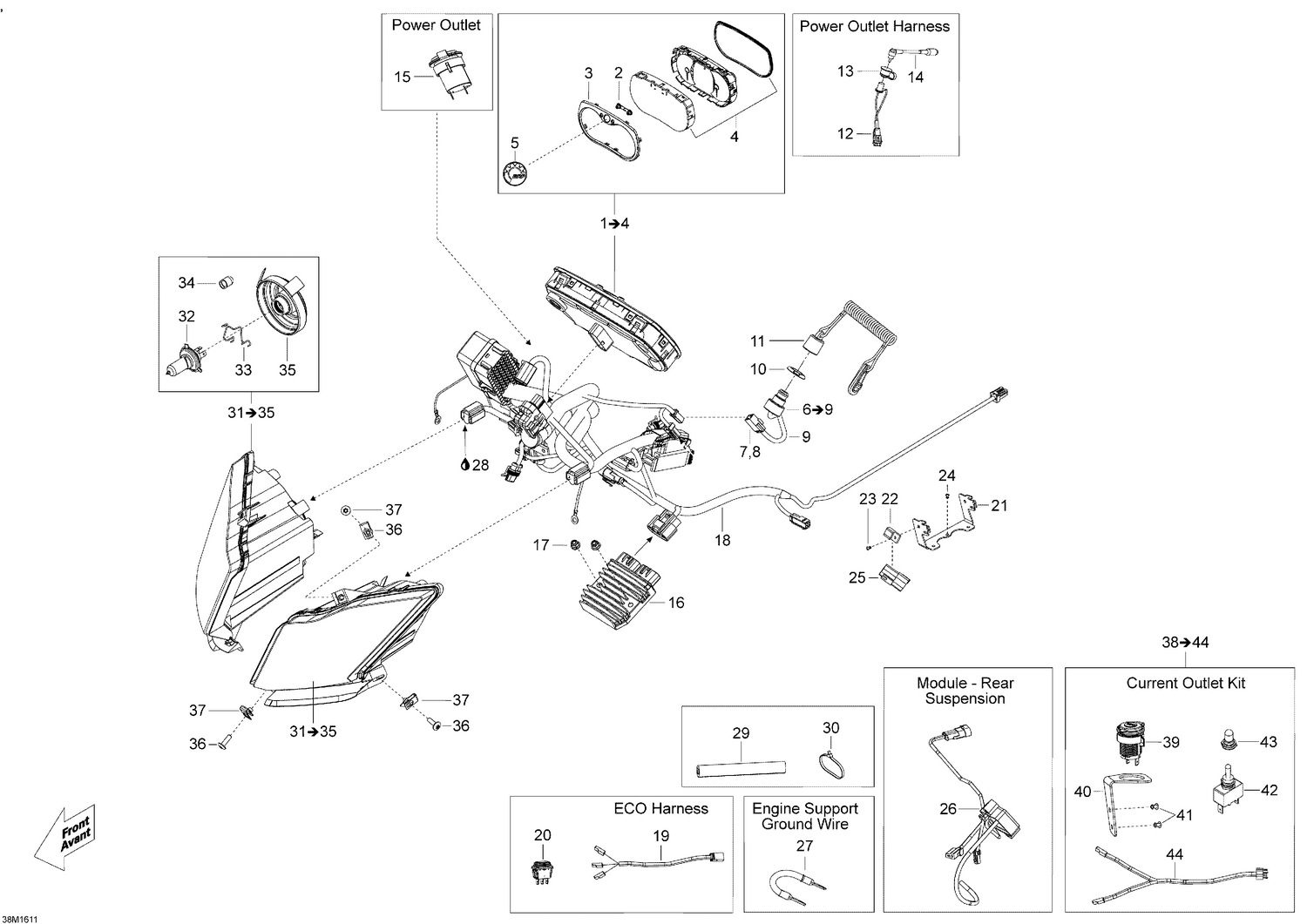

10- Electrical System
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129370 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo 20MM x 2MM |
| 7 | 515175232 | Male Terminal |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 409902000 | Tubing 12 mm |
| 10 | 278002963 | Safety Nut (DESS Switch) |
| 11 | 515178284 | DESS This part replaces 515178146. |
| 11 | 860201162 | Key |
| 12 | 515177837 | Visor Harness |
| 13 | 572103300 | Cap |
| 14 | 515175851 | Extension |
| 15 | 710001248 | DC Outlet |
| 16 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 515179615 | Eco Switch Wiring Harness This part replaces 515177568. |
| 20 | 515177569 | ECO Rocker Switch |
| 21 | 515177073 | FUSEBOX SUPPORT - Call your local BRP dealership |
| 22 | 270000141 | Clip |
| 23 | 293150037 | Avdel Rivet 3/16" |
| 24 | 390402200 | Pop Rivet 3/16" |
| 25 | 710003006 | Housing |
| 27 | 515176883 | Ground Wire |
| 28 | Not | Available As Spare Part - Loctite 8104 (Dielectric Grease) |
| 30 | 293750001 | Tie Wrap 94 mm |
| 30 | 293750002 | Tie Wrap 142 mm |
| 30 | 414115200 | Tie-Rap 180 mm |
| 32 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 33 | Not | Available As Spare Part - Bulb Holder |
| 34 | 515176498 | Cap |
| 35 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 36 | 250000722 | Torx Screw M6 X 20 |
| 37 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
