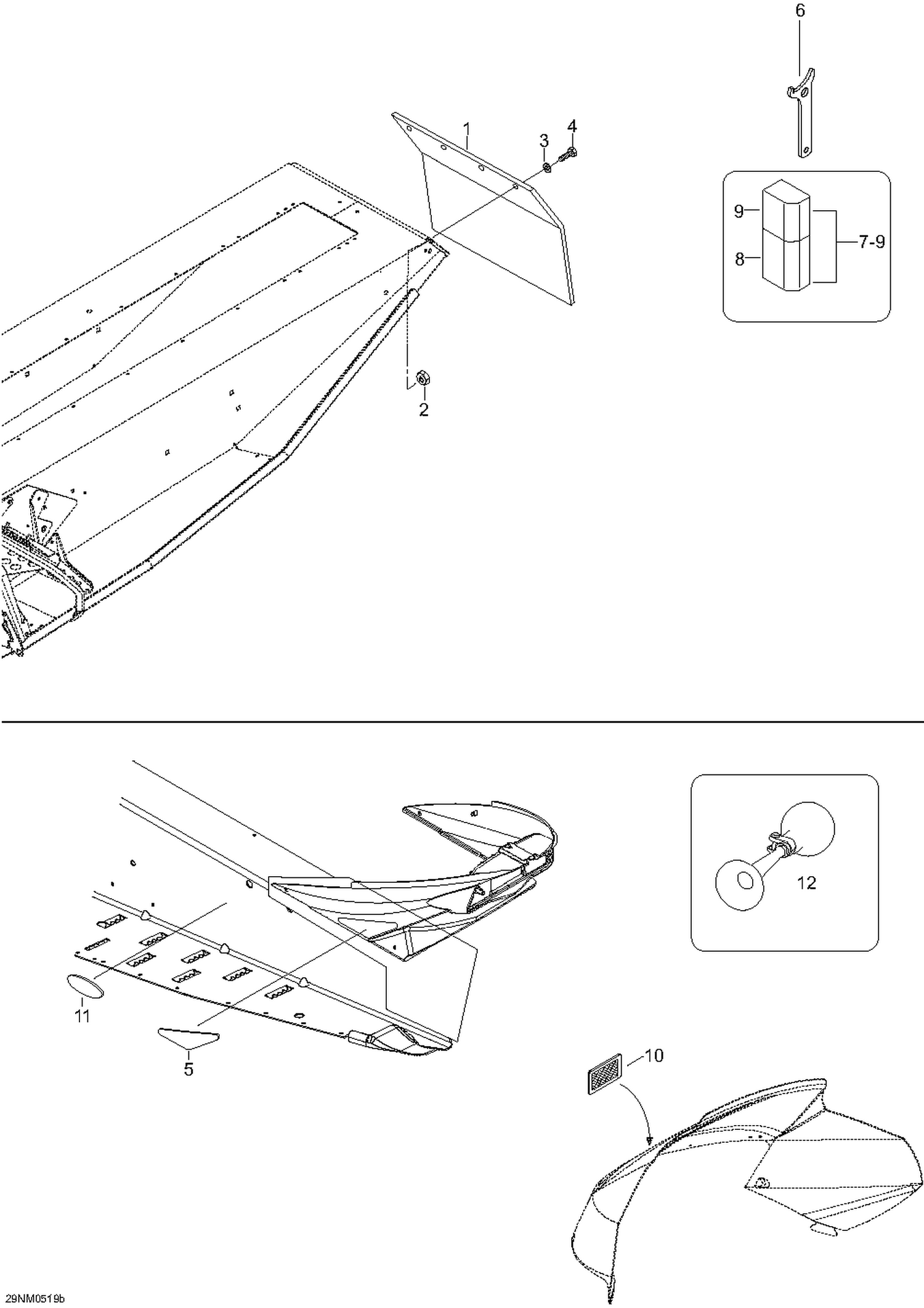

| Ref | Part Number | Description |
|---|
| 1 |
5246131 |
Snow guard |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 3 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 4 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 5 |
520000311 |
Reflector, rear |
| 6 |
529000035 |
Wrench adjuster This part replaces 529032900. |
| 8 |
A50121179000 |
TOOL BOX - Call your local BRP dealership This part replaces 708200041. |
| 9 |
572036400 |
COVER-BOX - Call your local BRP dealership |
| 10 |
21118 |
Reflector, Bright |
| 11 |
21135 |
Reflector, yellow |
