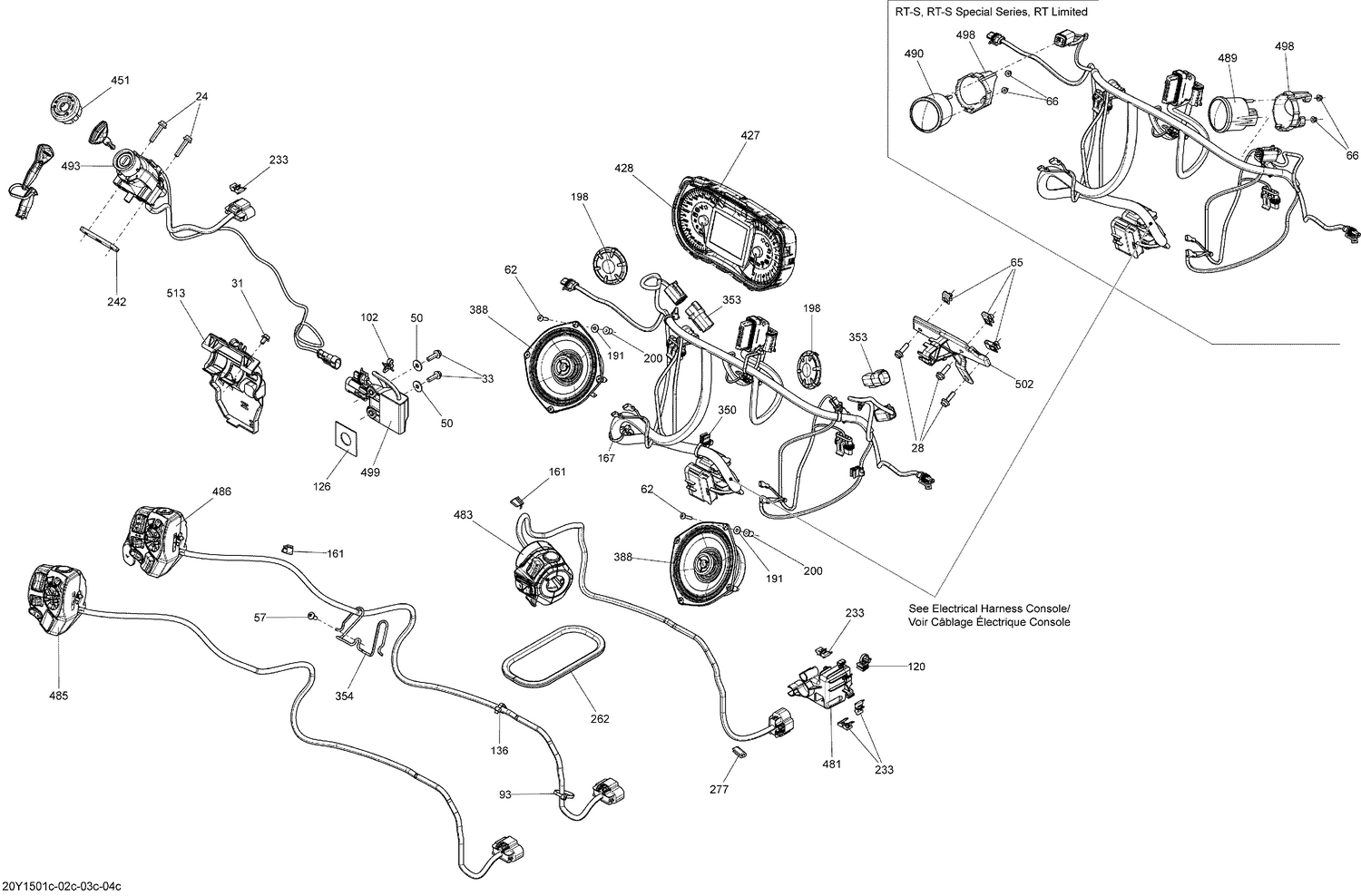

10- Electrical System Front View_20Y1503c
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 24 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 28 | 207662044 | Hex. Flange Screw M6 X 20 |
| 31 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 33 | 210262050 | Hexagonal Head Screw |
| 50 | 234062410 | Flat Washer 6 mm |
| 57 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 62 | 250000405 | TORX SCREW M4 X 20 - Call your local BRP dealership |
| 65 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 66 | 250100142 | Hex. Serrated Flange Nut |
| 93 | 293750008 | Tie Wrap 368 mm |
| 102 | 293750009 | Tie-Rap 173 mm |
| 120 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 126 | 293830091 | Rubber Bumper |
| 136 | 414115200 | Tie-Rap 180 mm |
| 161 | 414227300 | Clip |
| 167 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 191 | 517225900 | Flat Washer |
| 198 | XXX | Not Available As Spare Parts |
| 200 | 705003635 | Well Rubber Nut M4 X 0.7 |
| 233 | 710001222 | Lock |
| 242 | 710001365 | Switch Support |
| 262 | 219704354 | Trim 1000Mm Long |
| 277 | 219704354 | Trim 1000Mm Long |
| 350 | 710002899 | Clip Tie-Rap |
| 353 | XXX | Not Available As Spare Parts |
| 354 | 710003017 | Grommet Spindle |
| 388 | 710003233 | Front Speaker |
| 428 | 415129349 | Lens |
| 451 | 710003594 | Switch Cover |
| 481 | 710004086 | Connector Support |
| 483 | 710004583 | RH Switch Housing This part replaces 710004146. |
| 485 | XXX | Not Available As Spare Parts |
| 489 | 710004210 | Temp Gauge |
| 490 | 710004208 | FUEL GAUGE - Call your local BRP dealership |
| 493a | 219800373 | DESS Antenna |
| 493b | 710004408 | Ignition Key Kit |
| 498 | 710004239 | HOUSING SUPPORT - Call your local BRP dealership |
| 499 | 710004916 | Dess Module This part replaces 710004241. |
| 502 | 710004256 | CONNECTOR SUPPORT - Call your local BRP dealership |
