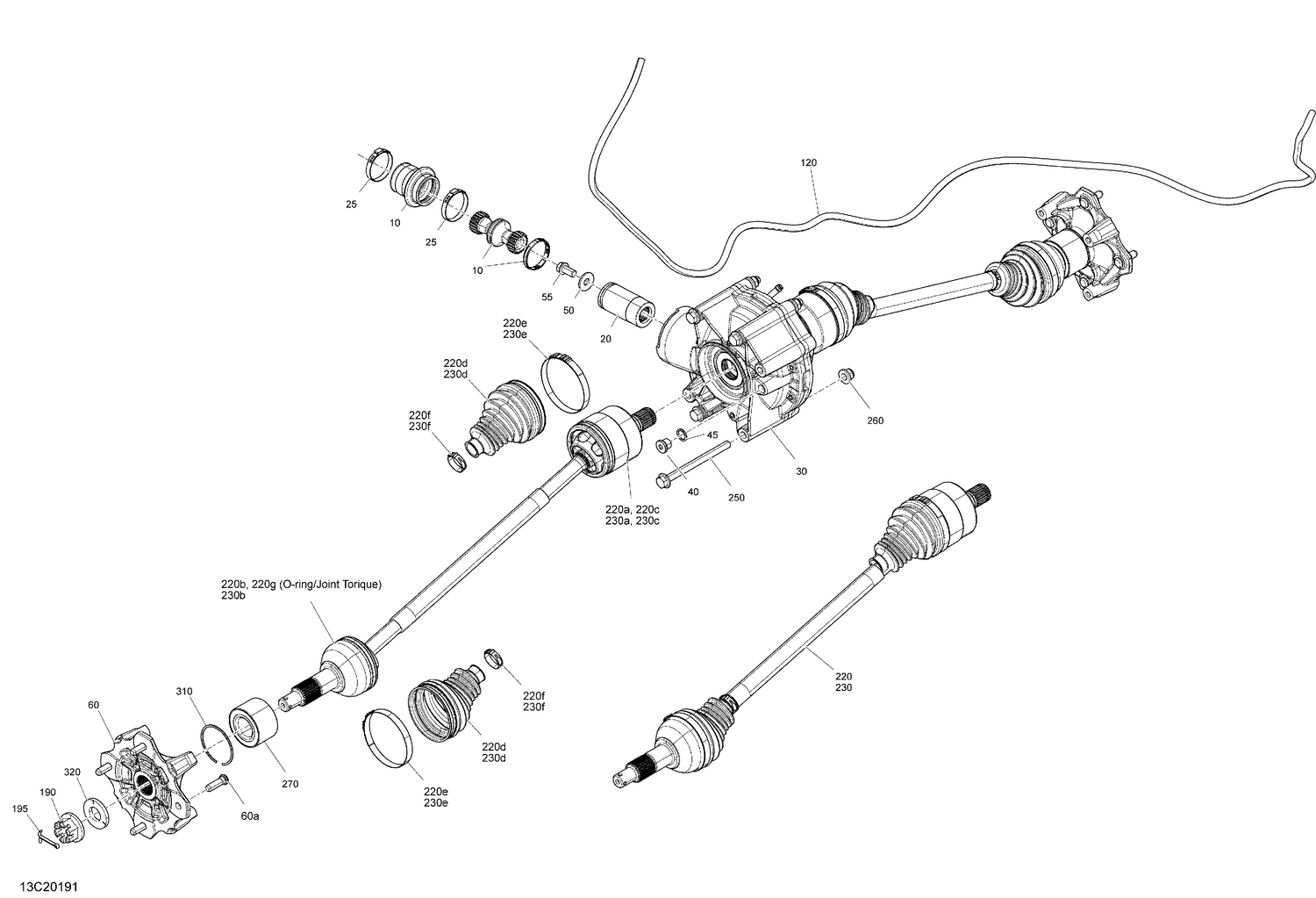

08- Rear Drive - Common Parts
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705401950 | Drive Axle Ass'y |
| 20 | 705401969 | Coupling Sleeve |
| 25 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 30 | 703501019 | Final Drive Unit |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 50 | 250200014 | Flat Washer M10 |
| 55 | 250001046 | Hex Flange Screw M10 X 20 S.Grip |
| 60a | 250300055 | Wheel Stud M10 X 1.25 |
| 120 | 219704389 | Polyurethane Hose 4000MM Long |
| 190 | 250100193 | Castle Nut M20 |
| 195 | 250400084 | Cotter Pin |
| 220a | 715900429 | JOINT_CV EXT - Call your local BRP dealership |
| 220b | 715900444 | Plunging Joint |
| 220c | 705501781 | Circlip |
| 220e | 715900241 | Oetiker Clamp, 82.1 mm |
| 220f | 715900242 | Oetiker Clamp, 27.3 mm |
| 220g | 715900579 | O-Ring |
| 230 | XXX | Not Available As Spare Parts |
| 230a | XXX | Not Available As Spare Parts |
| 230b | XXX | Not Available As Spare Parts |
| 230c | XXX | Not Available As Spare Parts |
| 230d | XXX | Not Available As Spare Parts |
| 230e | XXX | Not Available As Spare Parts |
| 230f | XXX | Not Available As Spare Parts |
| 250 | 230602546 | Hex. Flange Screw M10 X 125 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 270 | 293350150 | Ball Bearing This part replaces 293350118. |
| 310 | 293370019 | Circlip |
