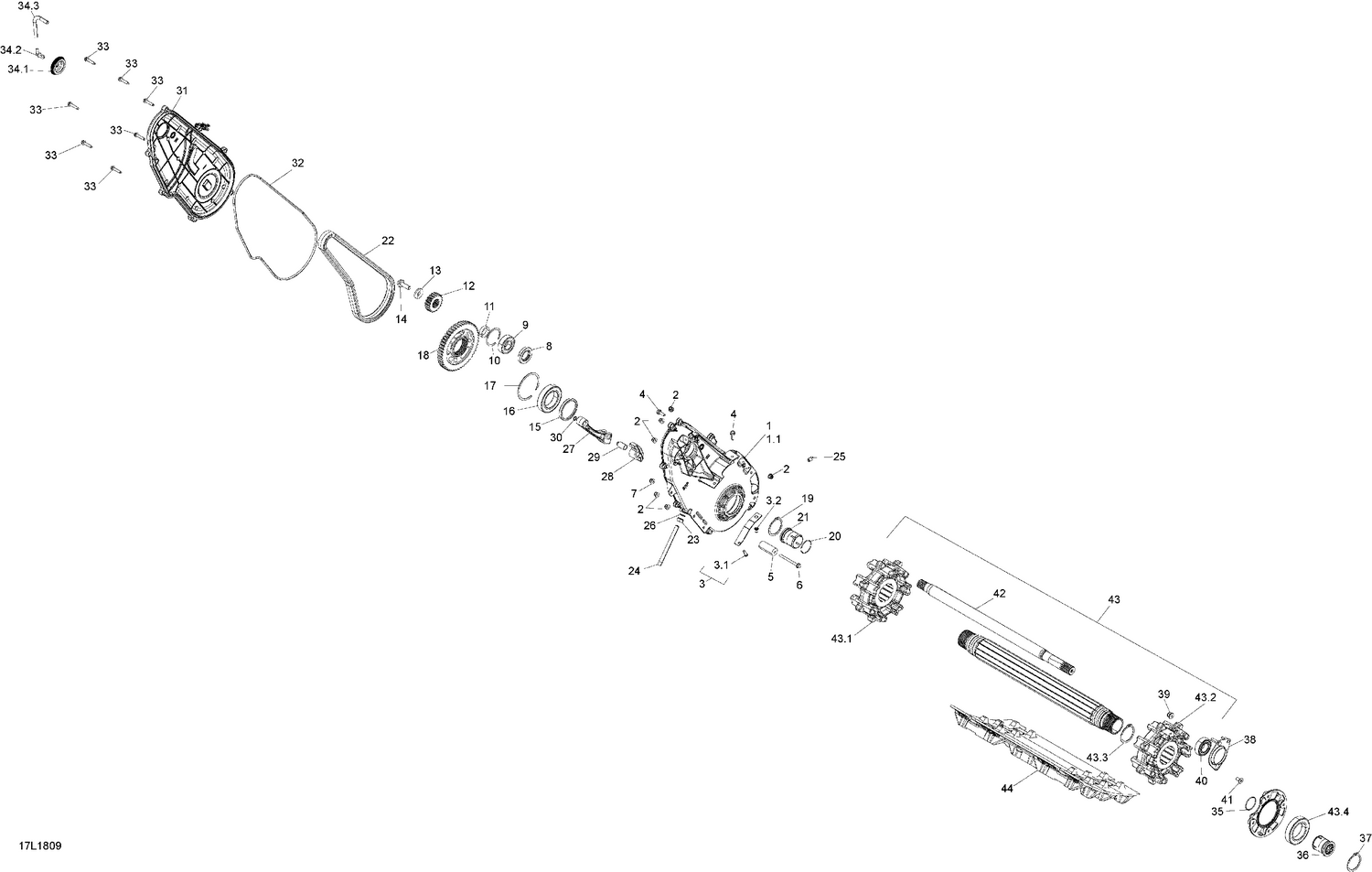

05- Drive Train Tundra - 550F
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4 | 207662056 | Hex. Flange Screw M6 x 20 |
| 5 | 518327966 | Sleeve |
| 6 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 7 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 8 | 293200168 | Oil Seal This part replaces 293250175. |
| 9 | 293350115 | Ball Bearing |
| 10 | 504152576 | Circlip |
| 11 | 504152628 | Shim |
| 12 | 504153783 | Sprocket, 19 Teeth This part replaces 504152030. |
| 13 | 504152784 | Spring Washer M10 |
| 14 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 15 | 293200159 | Oil Seal This part replaces 504152571. |
| 16 | 293350059 | Ball Bearing |
| 17 | 504152582 | Circlip |
| 18 | 861805539 | Kit Sprocket This part replaces 504152581. |
| 19 | 504152572 | Circlip |
| 20 | 293300122 | O-Ring |
| 21 | 504152619 | Magnetic Cap |
| 22 | 504152629 | Drive Chain, 104 Links |
| 23 | 232006414 | Hex. Nut M10 X 1.5 |
| 24 | 504152602 | Adjustment Screw |
| 25 | 504152636 | Magnetic Plug 1/8 - 27 NPTF |
| 26 | 293200128 | Seal Ring |
| 27 | 504153429 | Tensioner chain |
| 28 | 504152739 | Slider Chain |
| 29 | 504152841 | Tensioner Axle |
| 30 | 504152282 | Circlip |
| 31 | 504153147 | Chaincase Cover Ass'y |
| 32 | 293300188 | O-ring |
| 33 | 250000811 | Hex. HD Forming Screw M6 x 30 |
| 35 | 293300122 | O-Ring |
| 36 | 504152619 | Magnetic Cap |
| 37 | 504152572 | Circlip |
| 38 | 504153187 | Bearing Housing |
| 39 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 293350074 | Ball Bearing |
| 41 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 42 | 504153212 | Counter Shaft |
