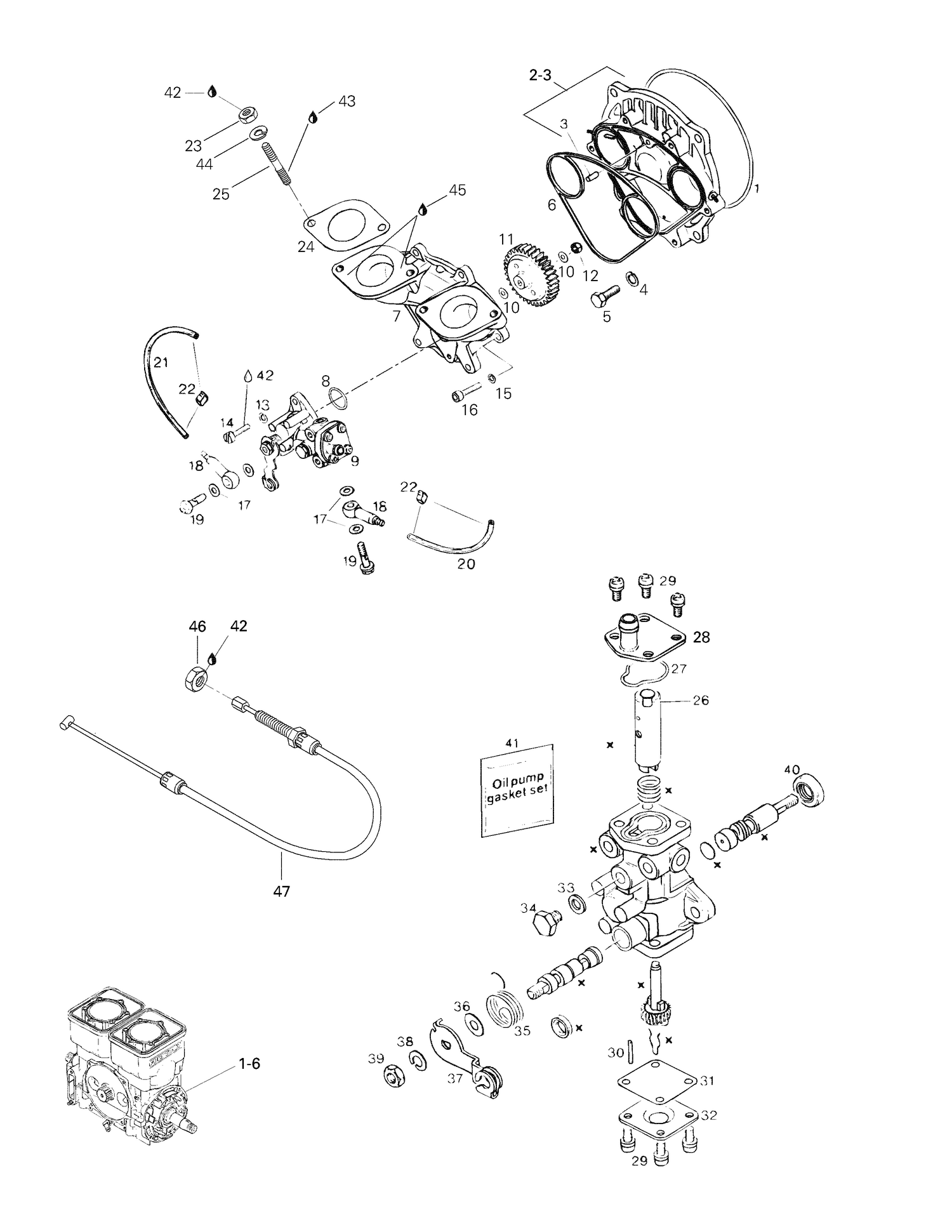

02- Oil Injection System, Oil Pump, Rotary Valve
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293300023 | O-RING - Call your local BRP dealership |
| 2 | 290811126 | Rotary Valve Cover |
| 3 | 420929650 | Drive Pin 5 X 10 This part replaces 290929650. |
| 4 | 234180602 | Lock Spring Washer 8 mm, Stainless This part replaces 217383600. |
| 5 | 207182044 | Hex. Screw M8 X 20 This part replaces 290940593. |
| 6 | 290931440 | O-Ring |
| 7 | 290810781 | Oil Pump Flange |
| 8 | 293300018 | O-RING - Call your local BRP dealership |
| 10 | 420927945 | FLAT WASHER - Call your local BRP dealership This part replaces 290927945. |
| 11 | 290935945 | Oil Pump Gear 41 Teeth |
| 12 | 232561434 | Elastic Stop Nut M6 This part replaces 290842040. |
| 13 | 290845389 | Lock Washer |
| 14 | 215951660 | Cylindrical Slotted Screw M5 x 16 |
| 15 | 290845381 | Lock Washer 6 mm |
| 16 | 205062060 | Socket Head Screw M6 X 20 This part replaces 290240403. |
| 17 | 404146600 | Sealing Washer This part replaces 290227500. |
| 18 | 420956010 | Valve Ass’Y This part replaces 290956010. |
| 19 | 290241830 | Valve Bolt M6 x 16 |
| 20 | 219704404 | Oil Hose 1500Mm Long |
| 21 | 219704404 | Oil Hose 1500Mm Long |
| 22 | 290853843 | Clamp 3.5 mm |
| 23 | 232081600 | Hex. Nut M8 This part replaces 212100001. |
| 24 | 293250134 | Gasket This part replaces 293250042. |
| 25 | 420941014 | Stud M8 x 26 This part replaces 290941013. |
| 26 | 290256085 | Retainer |
| 27 | 293300019 | O-RING - Call your local BRP dealership |
| 28 | 290956340 | Pump Upper Plate |
| 29 | 290241975 | Screw with Lock Washer 4 mm |
| 30 | 290929900 | Stop Pin |
| 31 | 290850200 | Gasket |
| 32 | 290956031 | Pump Lower Plate |
| 33 | 290227505 | Gasket |
| 34 | 290841583 | Hex. Screw M6 x 8 |
| 35 | 290838114 | Spring |
| 36 | 290227665 | Washer 6.2 mm |
| 37 | 290848162 | Lever Control |
| 38 | 290845381 | Lock Washer 6 mm |
| 39 | 290242623 | Hex. Nut M6 |
| 40 | 293200038 | Oil Seal |
| 41 | 290995045 | OIL PUMP GASKET SET - Call your local BRP dealership |
| 42 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 43 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 44 | 290383600 | Lock Washer 8 mm |
| 46 | 232160600 | Hex. Nut M6 This part replaces 212100003. |
| 47 | 270000211 | Injection Cable |
