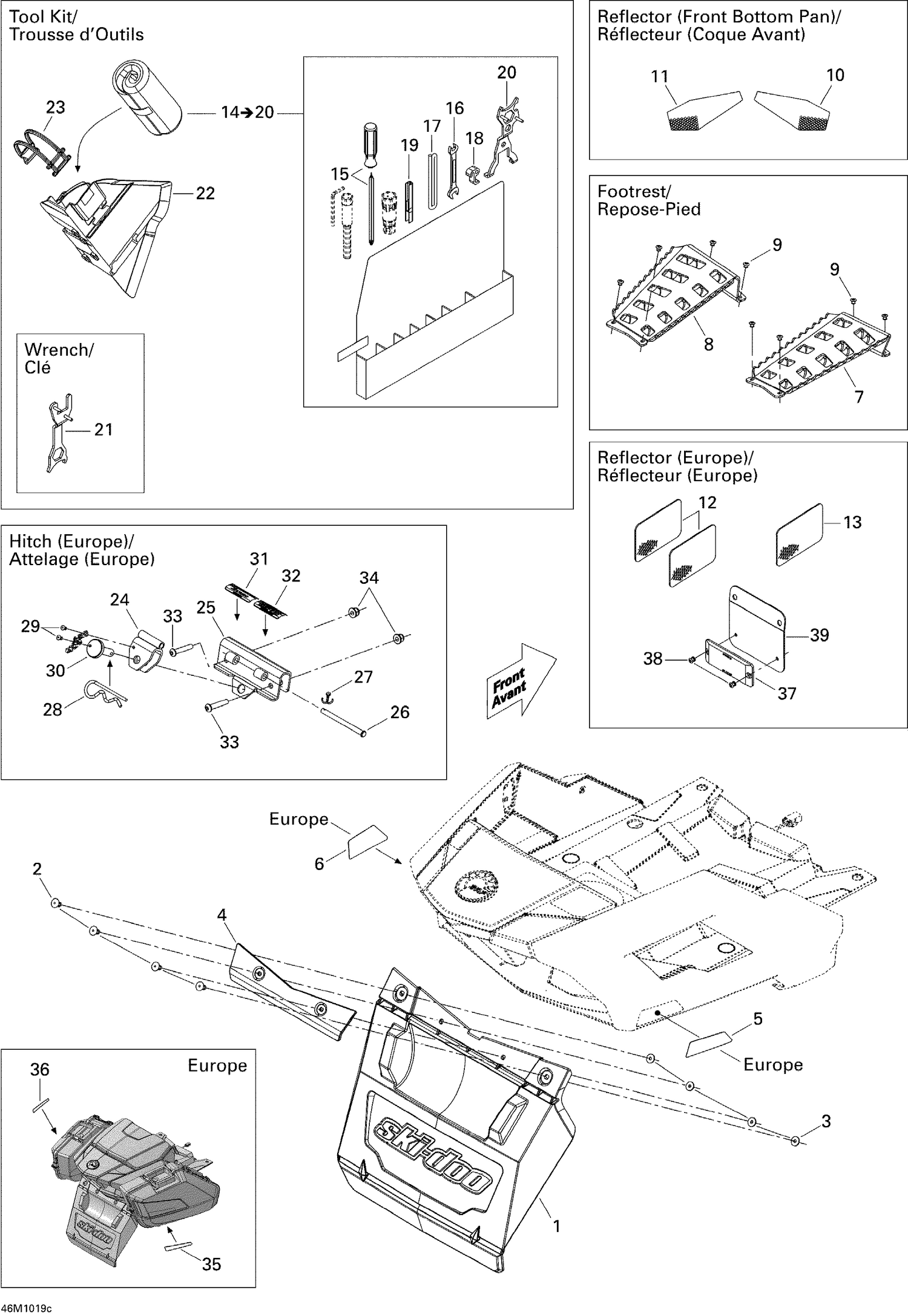

| Ref | Part Number | Description |
|---|
| 1 |
520000659 |
Snow Guard |
| 2 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3 |
517124300 |
Washer |
| 4 |
520000751 |
Reinforcement |
| 7 |
520000768 |
MAT BLACK RH FOOTREST - Call your local BRP dealership |
| 8 |
520000769 |
MAT BLACK LH FOOTREST - Call your local BRP dealership |
| 9 |
293150102 |
Rivet 3/16" |
| 10 |
520000759 |
RH FRONT REFLECTOR - Call your local BRP dealership |
| 11 |
520000760 |
LH FRONT REFLECTOR - Call your local BRP dealership |
| 15 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 16 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 17 |
219704403 |
Was 412500100 Rope-Starter |
| 18 |
529000060 |
Starter Grip This part replaces 529019400. |
| 19 |
529035501 |
Spacing Tool |
| 20 |
520000988 |
WRENCH SUSPENSION - Call your local BRP dealership This part replaces 520000956. |
| 21 |
520000721 |
WRENCH - Call your local BRP dealership |
| 22 |
520000720 |
TOOL KIT RACK - Call your local BRP dealership |
| 23 |
520000528 |
Latch |
