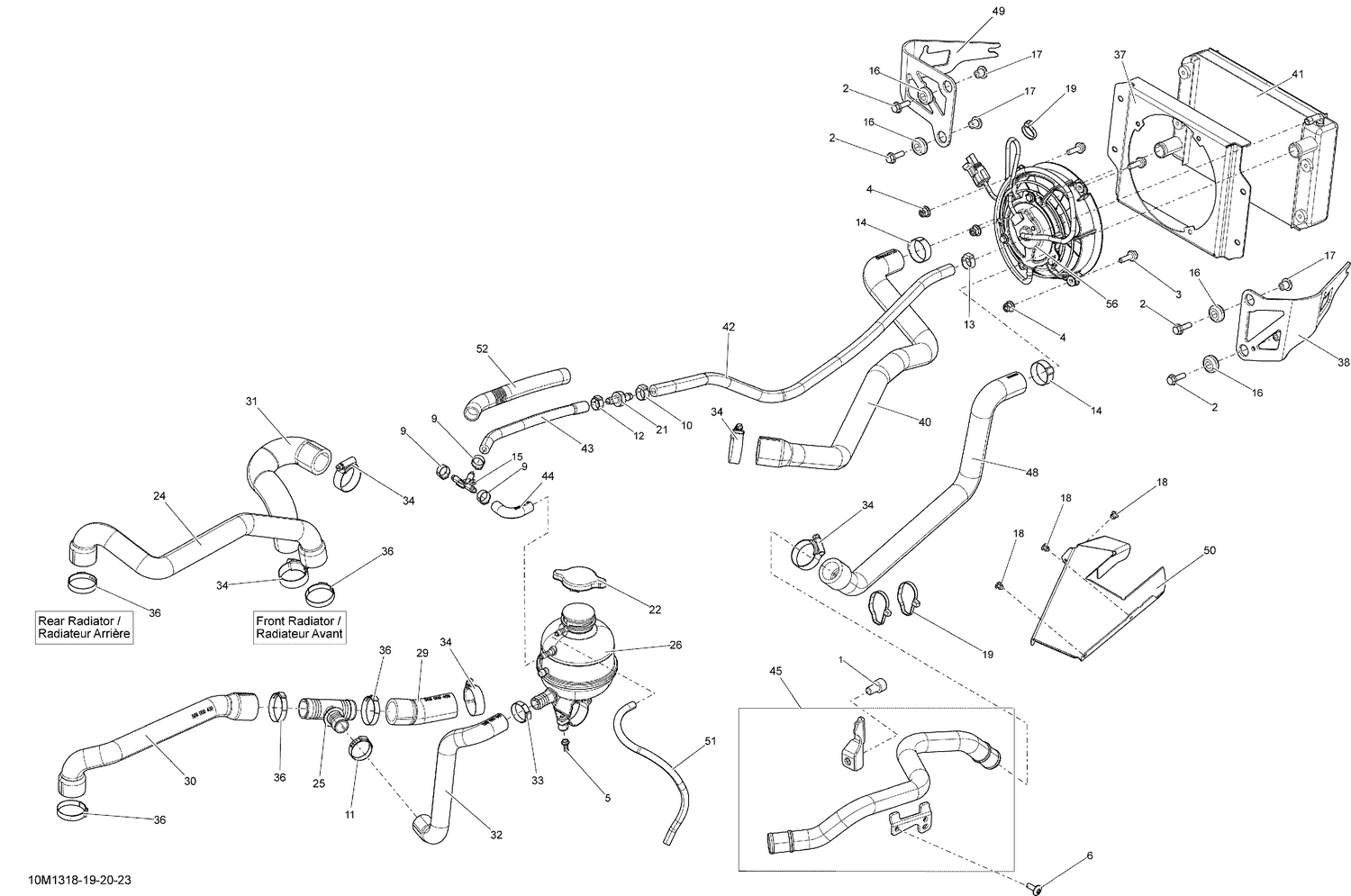

01- Cooling System SE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 11 | 293650099 | Crimp Clamp |
| 22 | 509000180 | Radiator Pressure Cap |
| 24 | 509000370 | RADIATOR HOSE - Call your local BRP dealership |
| 25 | 509000372 | T-Fitting |
| 26 | 509000421 | Coolant Tank |
| 29 | 509000438 | Radiator Hose |
| 30 | 509000439 | Radiator Hose |
| 31 | 509000440 | Outlet Hose |
| 32 | 509000441 | Hose |
| 33 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 34 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 36 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 51 | 219704360 | Hose 6 Mm 15000Mm Long |
