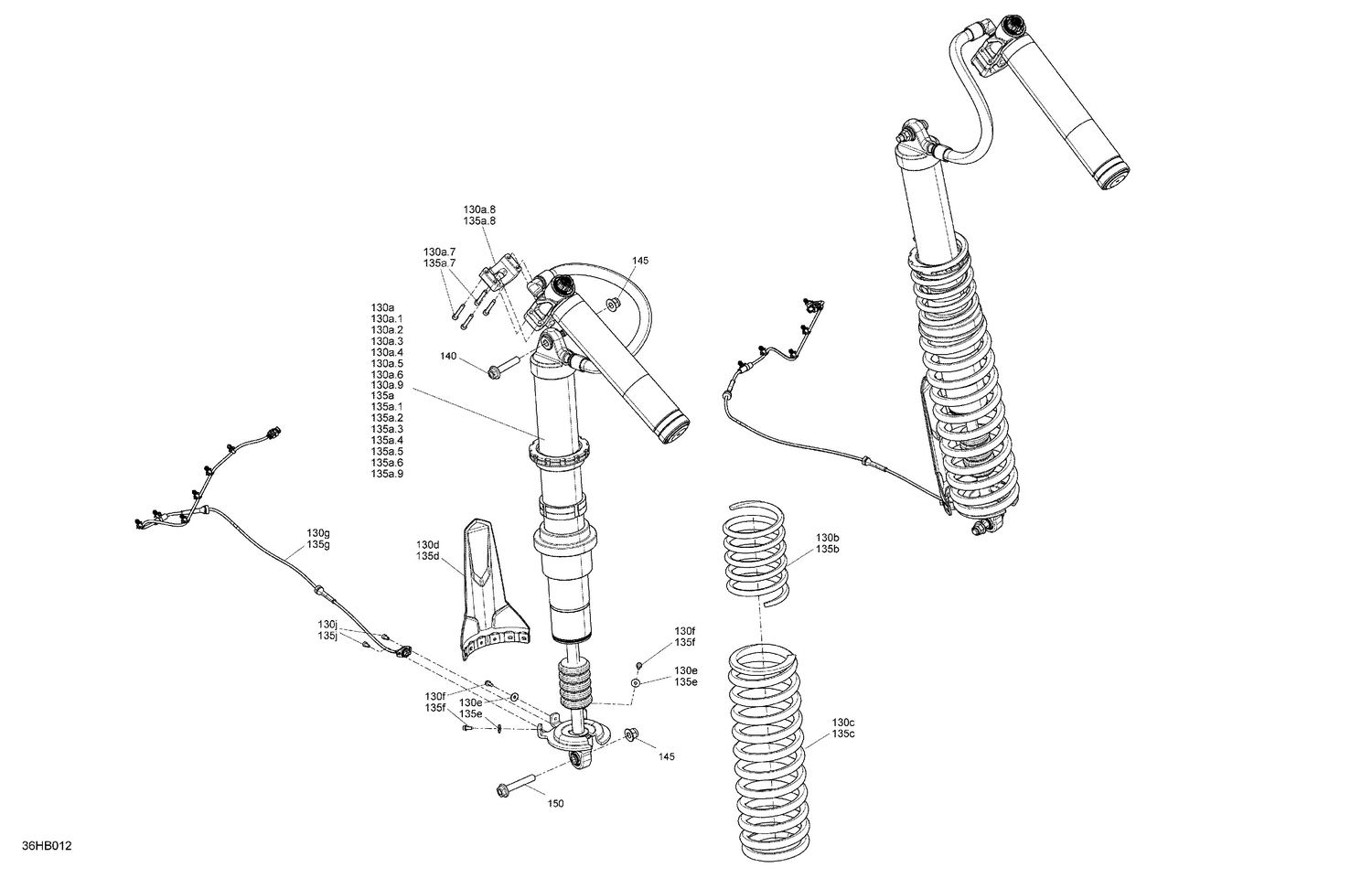

05- Suspension - Rear Shocks - With Smart-ShoX
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 130b | 706004480 | Dazzling Blue, Compression Spring |
| 130c | 706004165 | Dazzling Blue, Compression Spring |
| 130d | 706202215 | Protector |
| 130e | 250200025 | Washer M5 |
| 130f | 210251150 | Hex Flange Screw M5 X 11 |
| 130g | 710006389 | Rear Suspension Wiring Harness Ass'y |
| 130j | 205551060 | Socket Head Screw M5 X 10 |
| 135b | 706004480 | Dazzling Blue, Compression Spring |
| 135c | 706004165 | Dazzling Blue, Compression Spring |
| 135d | 706202215 | Protector |
| 135e | 250200025 | Washer M5 |
| 135f | 210251150 | Hex Flange Screw M5 X 11 |
| 135g | 710006389 | Rear Suspension Wiring Harness Ass'y |
| 135j | 205551060 | Socket Head Screw M5 X 10 |
| 140 | 250000857 | Flange Screw M12 X 60 |
| 145 | 250001195 | Elastic Flange Nut M12 |
