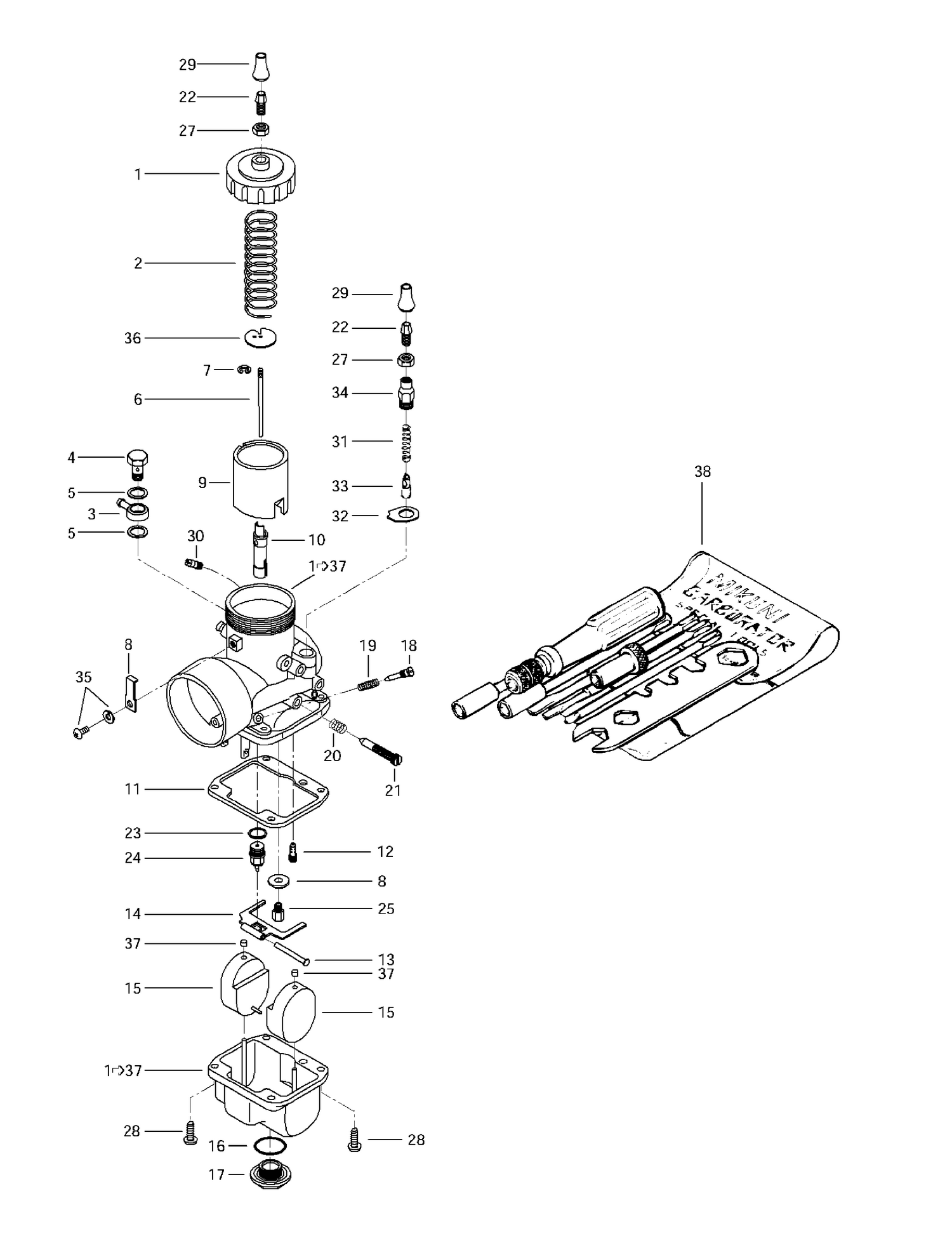

02- Carburetors
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 404129600 | Cover |
| 2 | 404152700 | Throttle Valve Spring |
| 3 | 404130000 | BANJO FITTING - Call your local BRP dealership |
| 4 | Not | Available As Spare Part - Bolt-Banjo Fitting |
| 5 | 404158200 | Washer-Banjo Fitting |
| 6 | 404124400 | Jet Needle J8 6DH8 |
| 7 | 404102400 | E-Ring |
| 8 | Not | Available As Spare Part - Plate |
| 9 | 404158400 | Valve Piston 3.0 |
| 10 | 404130200 | Needle Jet |
| 11 | 404117900 | Gasket pan |
| 12 | 404110300 | Pilot Jet PJ 25 |
| 13 | 404103300 | Lever Pin |
| 14 | 404107800 | Main Jet MJ 310 (MAG) |
| 15 | Not | Available As Spare Part - Float |
| 16 | 404107300 | O-Ring |
| 17 | 404107400 | Drain Plug Screw |
| 18 | 404102300 | Air Screw |
| 19 | 404101800 | Spring |
| 20 | 404101700 | Spring |
| 21 | 404102800 | IDLE SPEED SCREW - Call your local BRP dealership |
| 22 | Not | Available As Spare Part - Cable Adjuster |
| 23 | 404117600 | Washer |
| 24 | 404117700 | Needle valve |
| 25 | 404102200 | WASHER - Call your local BRP dealership |
| 26 | 404118900 | MAIN JET, MJ 230 - Call your local BRP dealership |
| 27 | 404121600 | Nut |
| 28 | 404118500 | Screw |
| 29 | Not | Available As Spare Part - Rubber Cap |
| 30 | 404127600 | NIPPLE - Call your local BRP dealership |
| 31 | 404127400 | SPRING - Call your local BRP dealership |
| 32 | 404158300 | Washer |
| 33 | 404127500 | Plunger Ass'y |
| 34 | 404129200 | Support-Guide |
| 35 | Not | Available As Spare Part - Screw with Washer |
| 36 | 404103800 | PLATE - Call your local BRP dealership |
| 37 | 404105800 | Cap |
| 38 | 404112000 | TOOL KIT - Call your local BRP dealership |
