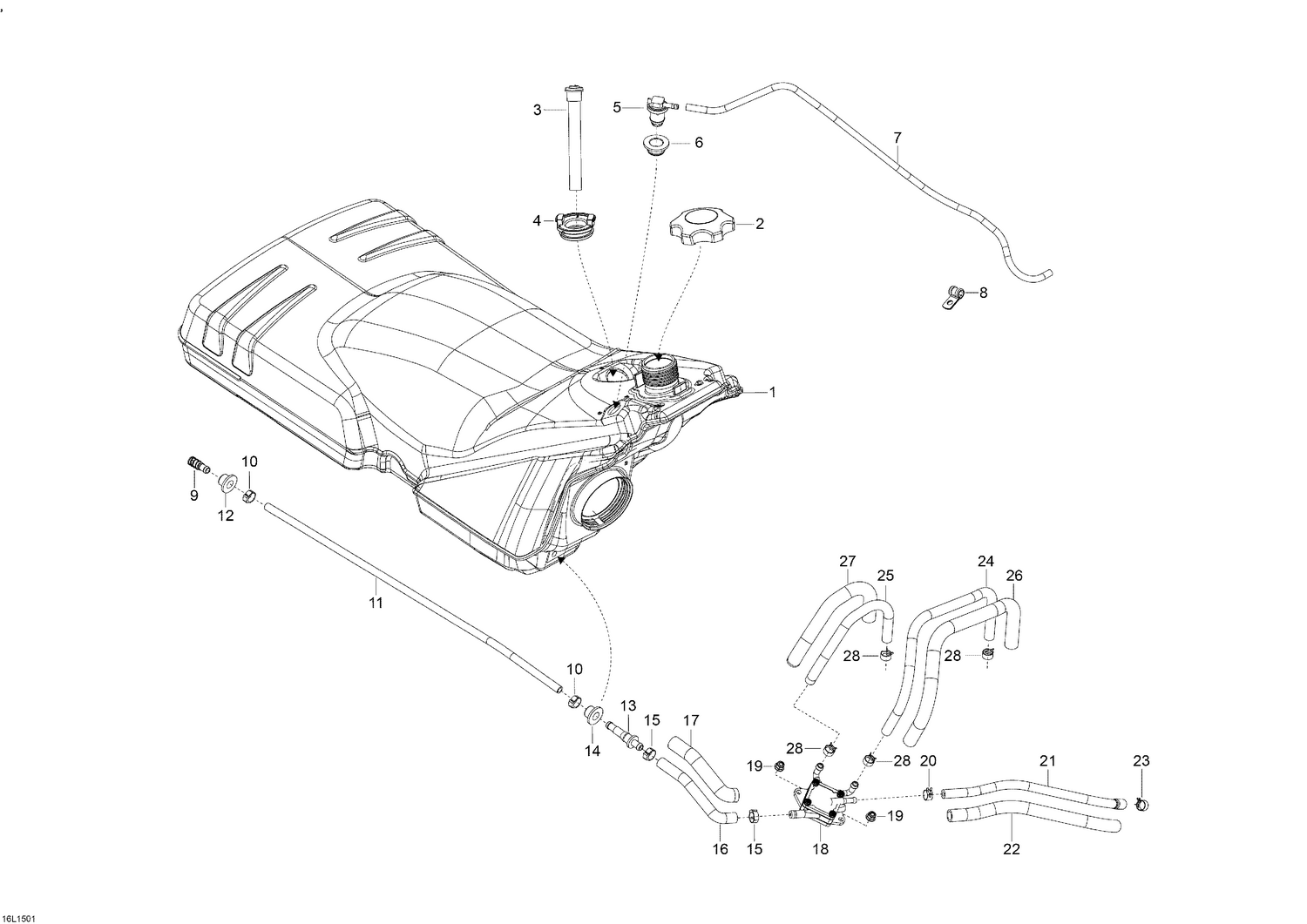

02- Fuel System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033632 | FUEL TANK - Call your local BRP dealership |
| 2 | 513033723 | Fuel Tank Cap |
| 3 | 513033538 | Fuel Sensor |
| 4 | 293720058 | Grommet |
| 5 | 513033842 | Check Valve This part replaces 513033188. |
| 6 | 513033596 | Grommet |
| 7 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 8 | 293650256 | Clamp This part replaces 715900250. |
| 9 | 414872100 | Fuel Filter |
| 10 | 513033010 | Clamp |
| 11 | 219704391 | POLYURETHANE HOSE 1000MM LONG This part replaces 513033332. |
| 12 | 293300184 | O Ring |
| 13 | 414872700 | Male Connector |
| 14 | 513033435 | Grommet |
| 15 | 293650053 | Crimp Clamp |
| 16 | 513033626 | Formed Hose |
| 17 | 415080000 | Protector Tube 125mm |
| 18 | 403901813 | Fuel Pump |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 414415200 | Universal Spring Clamp |
| 21 | 513033553 | Formed Hose |
| 22 | 415080000 | Protector Tube 250mm |
| 23 | 513033029 | Spring Clamp |
| 24 | 415129492 | Hose 410mm |
| 25 | 415129492 | Hose 260mm |
| 26 | 415080000 | Protector Tube 390mm |
| 27 | 415080000 | Protector Tube 230mm |
