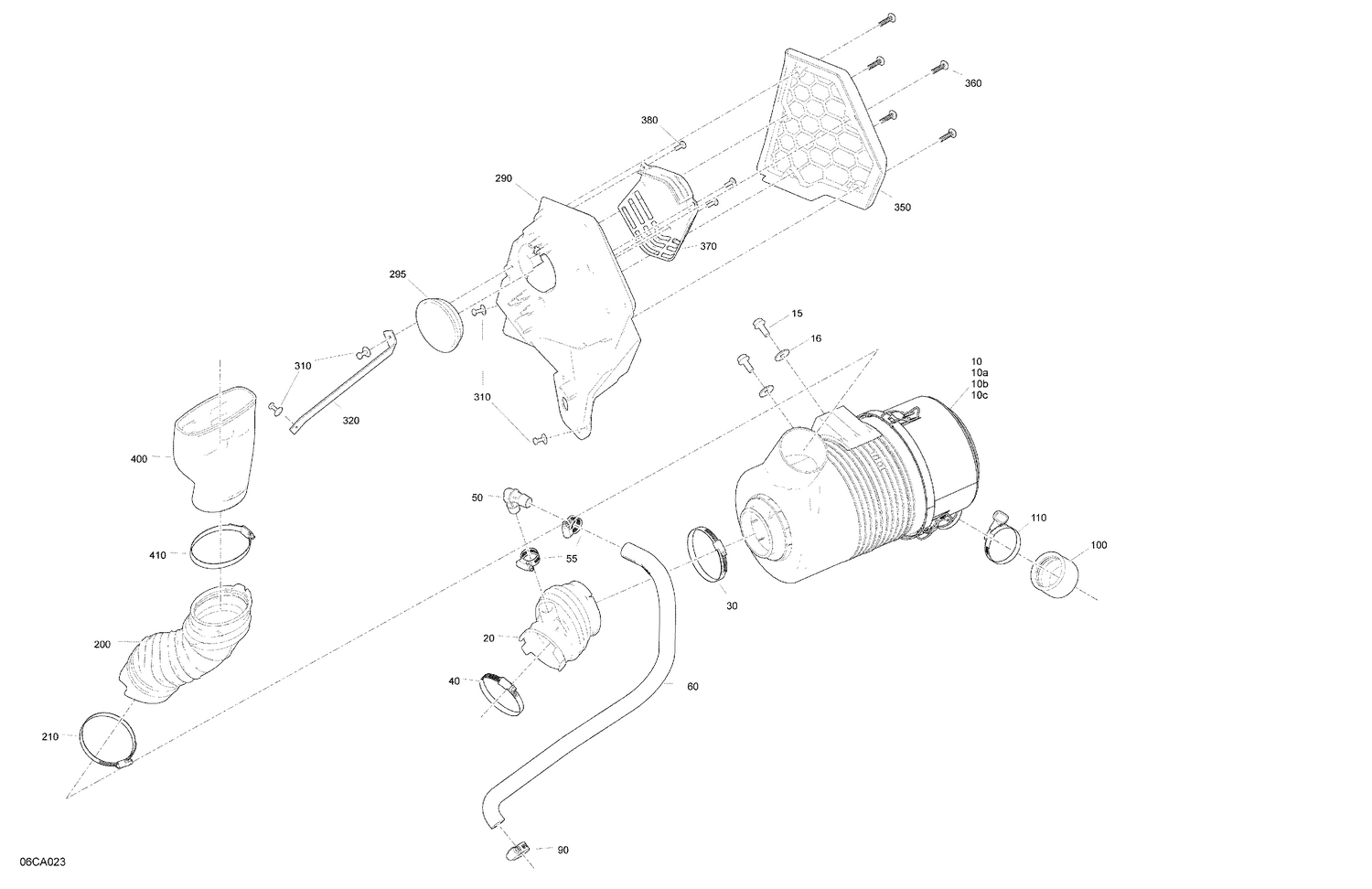

02- Engine - Air Intake
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900528 | Silencer-Air Cover |
| 10b | 715900422 | Premium Air Filter |
| 10c | 707800844 | Intake Silencer Gasket |
| 15 | 207682044 | Hex. Flange Screw M8 X 20 |
| 16 | 234082410 | Flat Washer 8 mm |
| 20 | 707800754 | Air Intake Adapter |
| 30 | 293650096 | Norma Clamp |
| 40 | 293650091 | Norma Clamp |
| 50 | 293710155 | Elbow Fitting 90 |
| 55 | 293650173 | Tridon Gear Clamp |
| 60 | 707800755 | Blow-By Hose |
| 90 | 293650173 | Tridon Gear Clamp |
| 100 | 707800769 | Vacuator Cap |
| 110 | 293650269 | Turn Key Clamp |
| 200 | 707800791 | Inlet Hose |
| 210 | 293650096 | Norma Clamp |
| 290 | 707800865 | Air Intake Box |
| 295 | 707002217 | Plug |
| 310 | 293150104 | Pop Rivet 3/16" |
| 320 | 707800784 | Support |
| 350 | 707800818 | Air Intake Grid |
| 360 | 250000980 | Hex. Screw Pt K60 X 25 |
| 370 | 707800762 | Baffle |
| 380 | 250000720 | Torx Screw K50 X 16 |
| 400 | 707800792 | Air Inlet Fitting |
