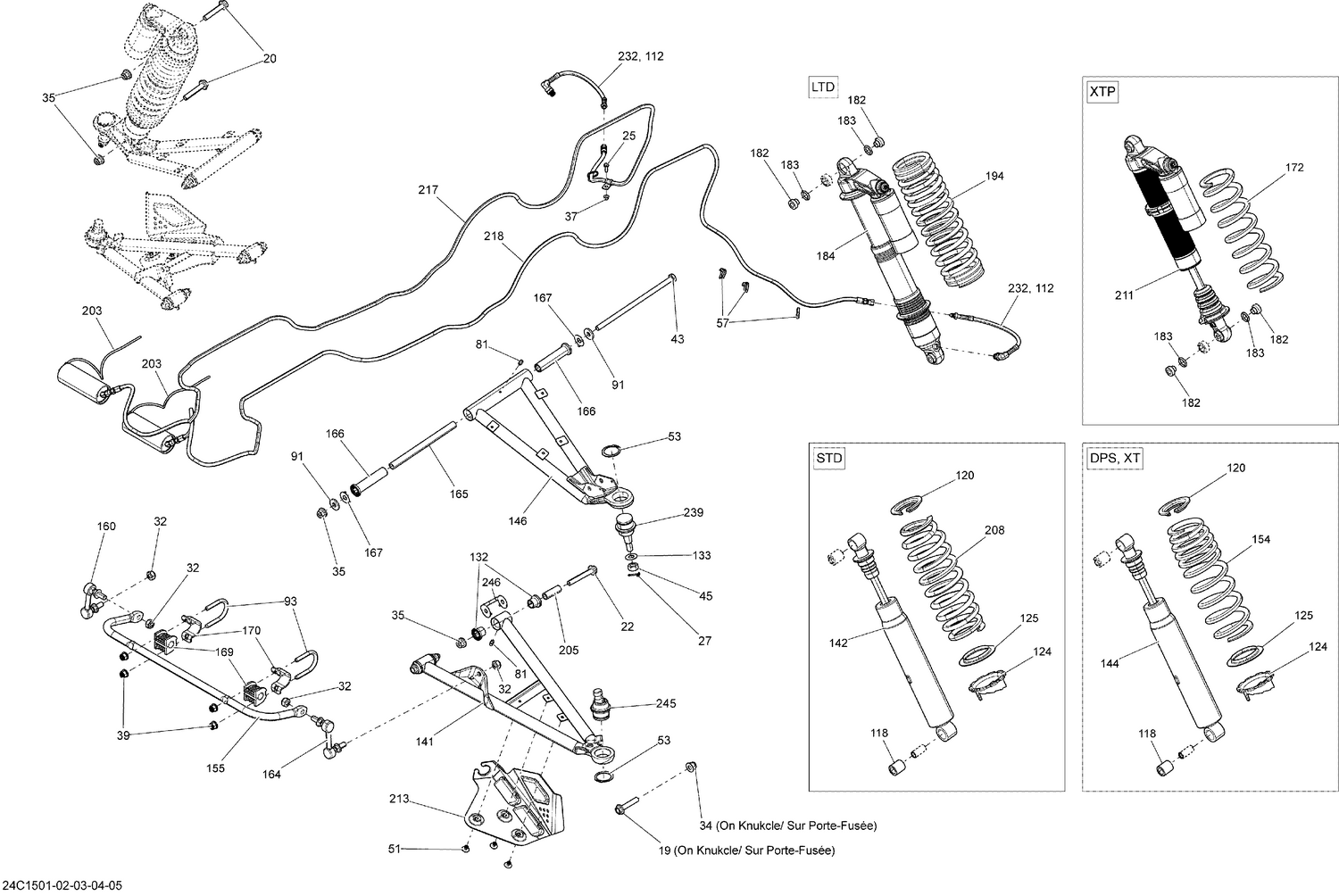

07- Front Suspension _24C1502
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 19 | 207605044 | Hex. Flange Screw M10 X 50 |
| 22 | 207607046 | Hex. Flange Screw M10 X 70 |
| 25 | XXX | Not Available As Spare Parts |
| 27 | 211400017 | Cotter Pin |
| 34 | 233201414 | Hex. Flange Elastic Nut M10 |
| 35 | 233201436 | Hex. Flange Elastic Nut M10 |
| 37 | XXX | Not Available As Spare Parts |
| 43 | 250001032 | Hex. Cap Screw M10 X 225 This part replaces 250000510. |
| 45 | 250100099 | Nut M12 |
| 51 | 293150104 | Pop Rivet 3/16" |
| 53 | 293370035 | Circlip |
| 57 | XXX | Not Available As Spare Parts |
| 81 | 408200700 | Grease Fitting |
| 91 | 503190439 | Washer |
| 112 | XXX | Not Available As Spare Parts |
| 118 | 715900122 | Bushing |
| 120 | 706000567 | Spring Stopper |
| 124 | 706000910 | Adjustment Ring |
| 125 | 706000911 | Protector Ring |
| 133 | 706200281 | Hardened Washer This part replaces 250200086. |
| 141 | 706200742 | LH Lower Suspension Arm |
| 141 | 706200744 | RH Lower Suspension Arm |
| 142 | XXX | Not Available As Spare Parts |
| 146 | 706200796 | Suspension Upper Arm |
| 165 | 706202445 | Bushing This part replaces 706201061. |
| 166 | 706201062 | Cushion |
| 167 | 706201063 | Wear Plate |
| 184 | XXX | Not Available As Spare Parts |
| 194 | XXX | Not Available As Spare Parts |
| 203 | XXX | Not Available As Spare Parts |
| 208 | XXX | Not Available As Spare Parts |
| 213 | 706201669 | LH Protector |
| 213 | 706201670 | RH Protector |
| 217 | XXX | Not Available As Spare Parts |
| 218 | XXX | Not Available As Spare Parts |
| 232 | XXX | Not Available As Spare Parts |
| 239 | 706202044 | Ball Joint |
| 245 | 706202045 | Ball Joint |
