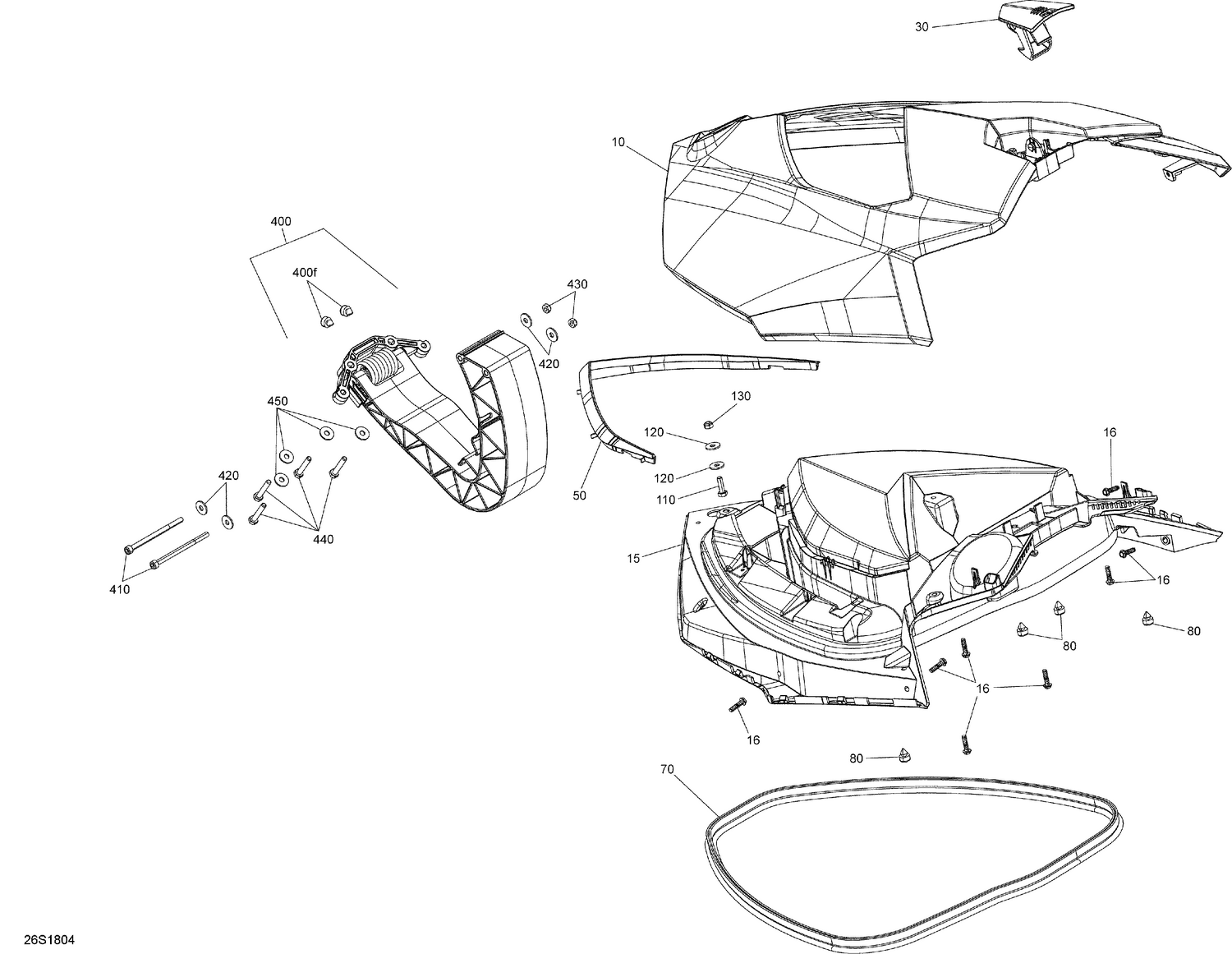

09- Front Cover WAKE - 155
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 269502355 | Black, Storage Cover |
| 15 | 269502196 | Deep Black, Storage Cover Lower |
| 16 | 241152060 | Hex. Flange Screw K50 X 20 |
| 30 | 269700142 | Deep Black, Latch Lever |
| 50 | 269502008 | Dragon Red Front Moulding |
| 70 | 219704371 | Neoprene Seal 3000 mm Long |
| 80 | 293830005 | Rubber Bumper |
| 110 | 207162060 | Hex. Forming Screw M6 X 20 |
| 120 | 234062600 | Flat Washer M6, Stainless |
| 130 | 232561200 | Brass Elastic Stop Nut M6 |
| 400f | 293830005 | Rubber Bumper |
| 410 | 205069060 | Socket Head Screw M6 X 90 |
| 420 | 234062600 | Flat Washer M6, Stainless |
| 430 | 232561200 | Brass Elastic Stop Nut M6 |
