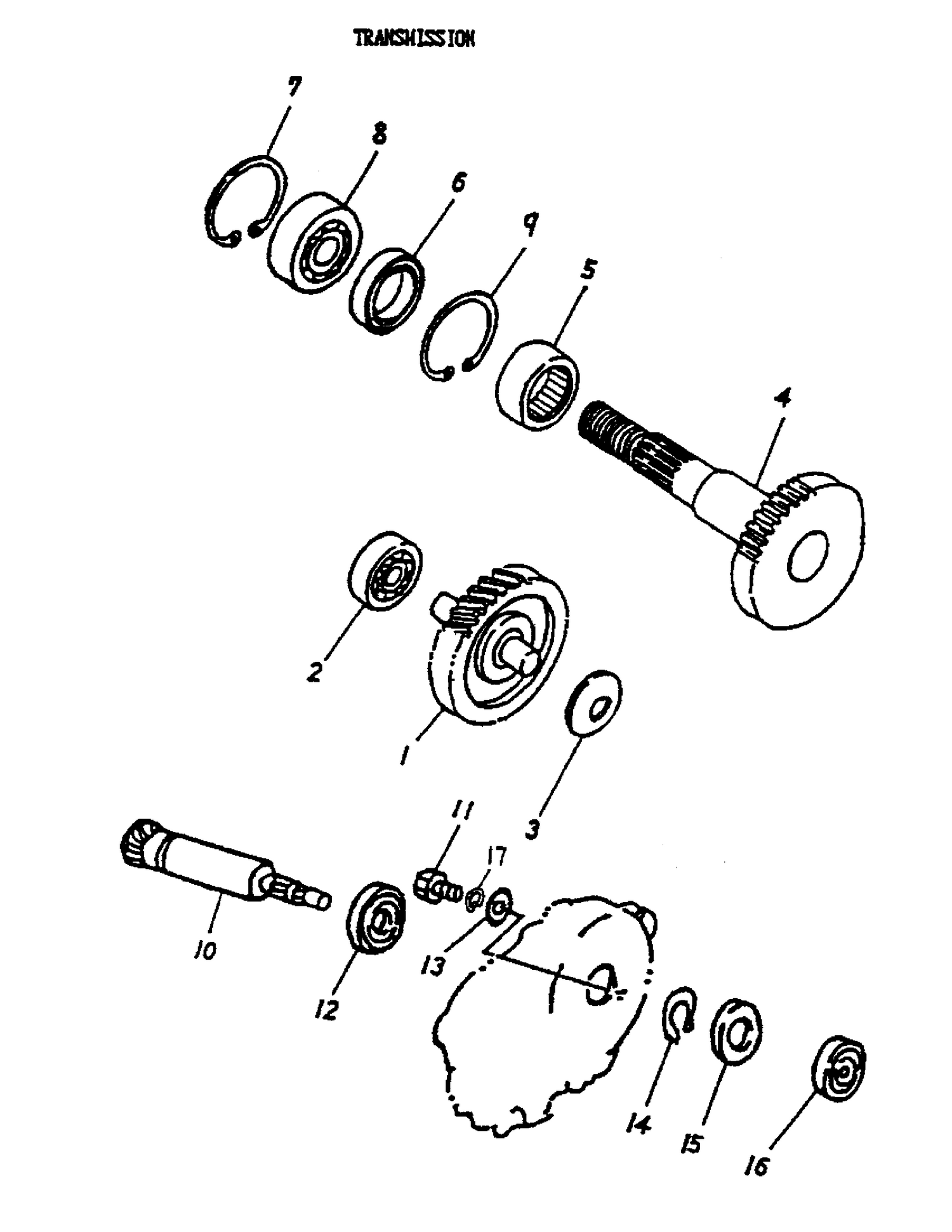

05- Transmission 170a-11
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A23420117000 | MAIN AXLE COMP. - Call your local BRP dealership |
| 2 | A9610062010 | Radial Ball Bearing, 6201 |
| 3 | A941011229016 | Plain Washer, 12.2 X 29 X 1.6 |
| 4 | A23430117000 | Drive Axle |
| 5 | A96200253315 | Needle Bearing, HMK2515 |
| 6 | A9650025356 | OIL SEAL, 25 X 35 X 6 - Call your local BRP dealership |
| 7 | A945124300R | INTERNAL CIRCLIP - Call your local BRP dealership |
| 8 | A961006004U | RADIAL BALL BEARING, 6004LU - Call your local BRP dealership |
| 9 | A945123400R | INTERNAL CIRCLIP - Call your local BRP dealership |
| 10 | A23411117000 | Primary Drive Gear |
| 11 | A920000601010 | Hex. Bolt M6 X 10 |
| 12 | A9610060030 | Radial Ball Bearing, 6003 |
| 13 | A941010620005 | Plain Washer, 6 X 20 X 0.5 |
| 14 | A945111700S | External CirClip |
| 15 | A9650017285 | OIL SEAL, 17 X 28 X 5.5 - Call your local BRP dealership |
| 16 | A96100638RD | RADIAL BALL BEARING, 638RD - Call your local BRP dealership |
