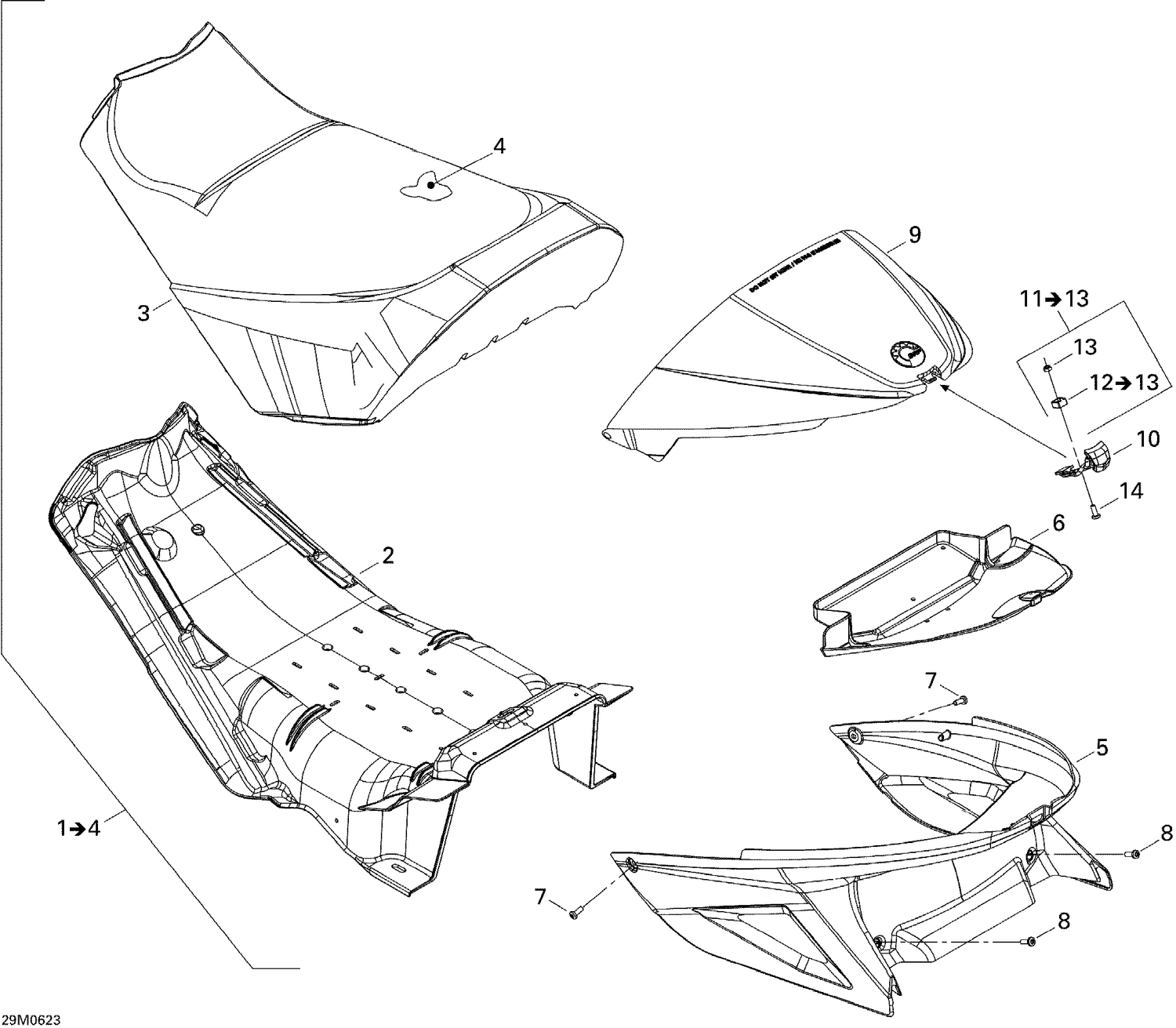

| Ref | Part Number | Description |
|---|
| 2 |
510004575 |
SEAT BASE - Call your local BRP dealership |
| 3 |
510004596 |
SEAT COVER - Call your local BRP dealership |
| 4 |
510004275 |
SEAT FOAM - Call your local BRP dealership |
| 5 |
510004628 |
TRUNK, BLACK - Call your local BRP dealership |
| 6 |
510004600 |
BOX LINER - Call your local BRP dealership |
| 7 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 8 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 9 |
510004631 |
COVER, BLACK - Call your local BRP dealership |
| 10 |
510003917 |
Bracket |
| 13 |
232561414 |
Elastic Stop Nut M6 |
