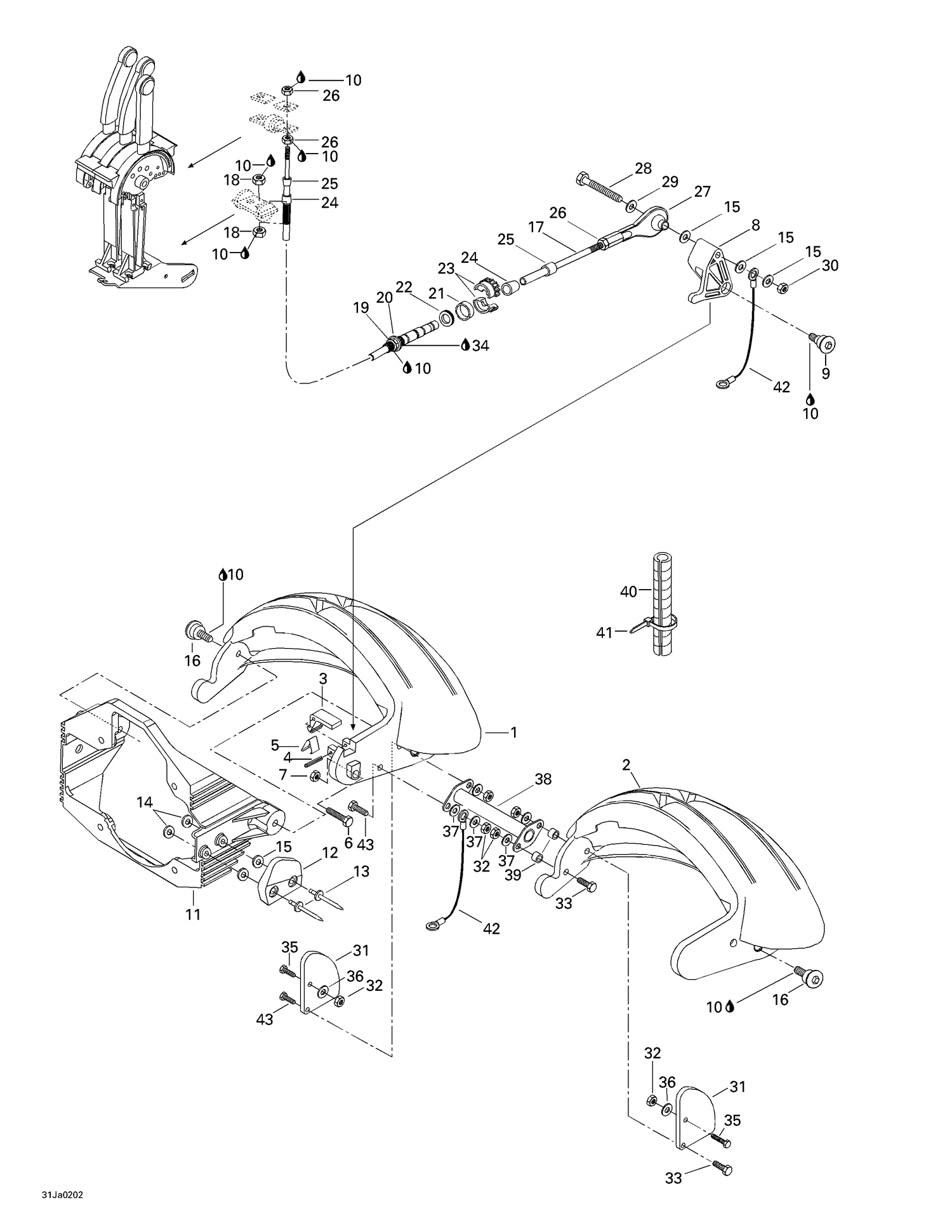

05- Reverse — Parts Catalog

Parts (43)

Ref	Part Number	Description
1	204170148	Reverse Gate R.H
2	204170149	Reverse Gate L.H
3	271000430	HOOK LEVER - Call your local BRP dealership
4	211400009	Pin
5	271000431	Spring
6	207162060	Hex. Forming Screw M6 X 20
7	232561600	Hex. Elastic Stop Nut M6
8	271000583	CABLE LEVER - Call your local BRP dealership
9	211000077	SCREW-SHOULDER M8 - Call your local BRP dealership
10	293800060	Loctite 243, 10 ml
11	204170051	Reverse Gate Support
12	204170031	PAWL STOP - Call your local BRP dealership
13	293150005	Pop Rivet 3/16"
14	211200035	Flat Washer
15	234061600	Stainless Flat Washer M6
16	211000007	Screw
17	204170045	REVERSE CABLE R.H - Call your local BRP dealership
18	212100006	Hex. Jam Nut
19	211100011	Hex. Jam Nut 1/2-20
20	211200006	FLAT WASHER, STAINLESS - Call your local BRP dealership
21	211100010	Retaining Ring
22	211100009	RUBBER WASHER - Call your local BRP dealership
23	277000168	Half-Ring
24	277000473	Boot, Large
25	277000466	Boot, Small
26	212100005	Hex. Nut
27	277000153	BALL JOINT - Call your local BRP dealership
28	207066560	Hex. Screw M6 x 65
29	234062600	Flat Washer M6, Stainless
30	232561600	Hex. Elastic Stop Nut M6
31	204170010	Reverse Gate Shutter (Starboard)
32	232541600	Elastic Stop Nut M4
33	207143060	Hex. Screw M4 x 30
34	296000309	Silicone Sealant 51388, 300 ml
35	207141660	Hex. Screw M4 X 16
36	234040600	Flat Washer 4 mm
37	234042600	Flat Washer 4 mm, Stainless
38	204170064	Tie Rod - Reverse
39	204170026	SPACER BUSHING - Call your local BRP dealership
40	204550015	SLIT CONDUIT, METER - Call your local BRP dealership
41	293750002	Tie Wrap 142 mm
42	204170067	Retainer Cable
293200046	Reverse	Gate Shutter (Port Side) 293200046
