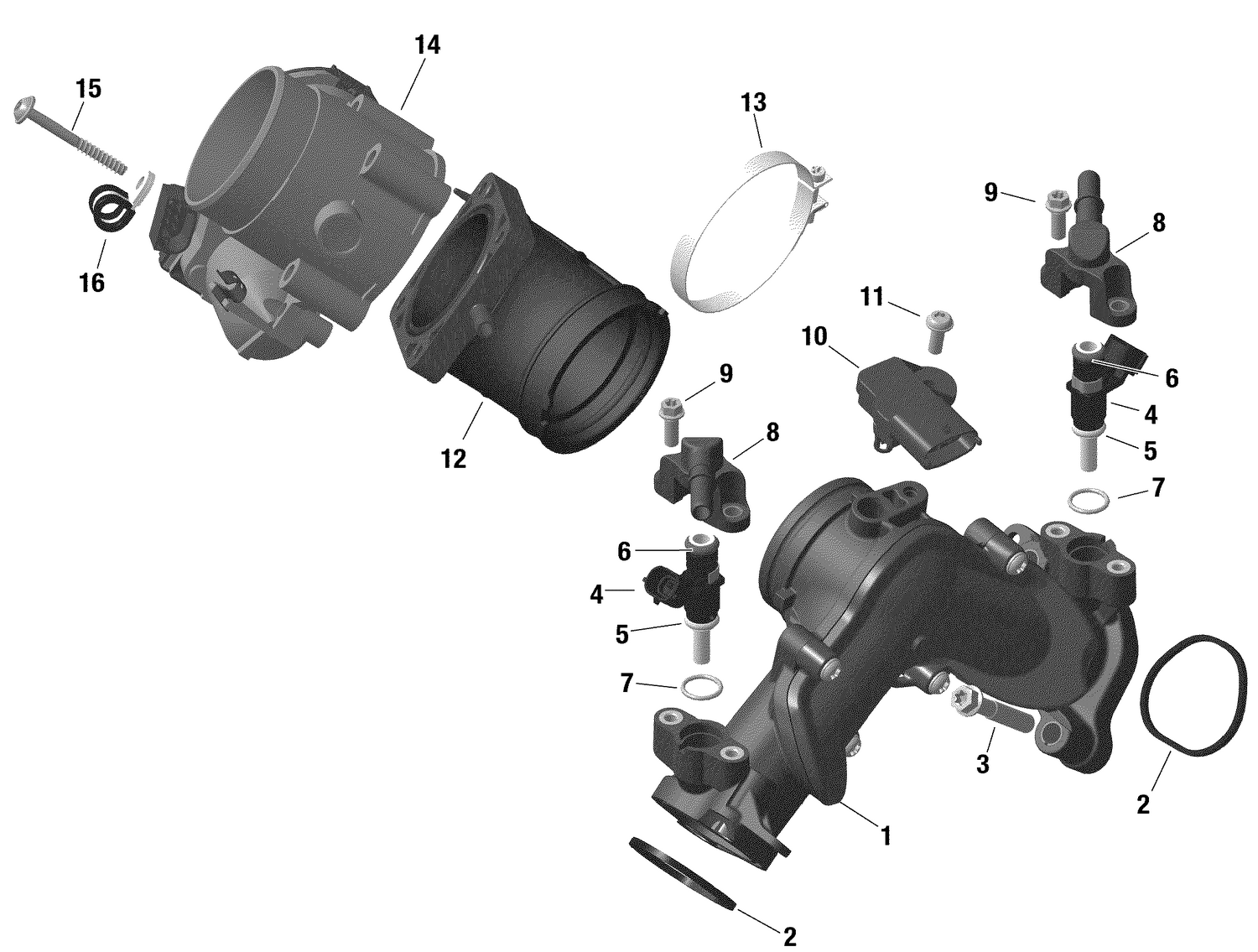

01- Engine - Air Intake Manifold And Throttle Body - 1010 TSS
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420867941 | Air Inlet Manifold Ass'y |
| 2 | 420630644 | Gasket |
| 3 | 420641208 | Hex. Flange Screw M8 X 45 |
| 5 | 420431890 | O-Ring |
| 6 | 420631220 | O-Ring |
| 7 | 420631296 | O-Ring |
| 8 | 420874901 | Fuel Rail |
| 9 | 420440164 | Torx Flange Screw M6 X 16 |
| 10 | 707000995 | Pressure And Temperature Sensor |
| 11 | 420641588 | Torx Flange Screw M6 X 16 |
| 12 | 420267214 | Air Intake Socket This part replaces 420267177. |
| 13 | 420251209 | Clamp |
| 14 | 420892596 | Throttle Body Socket Ass'y |
| 15 | 420441588 | Torx Flange Screw M6 X 50 |
