Parts Catalog

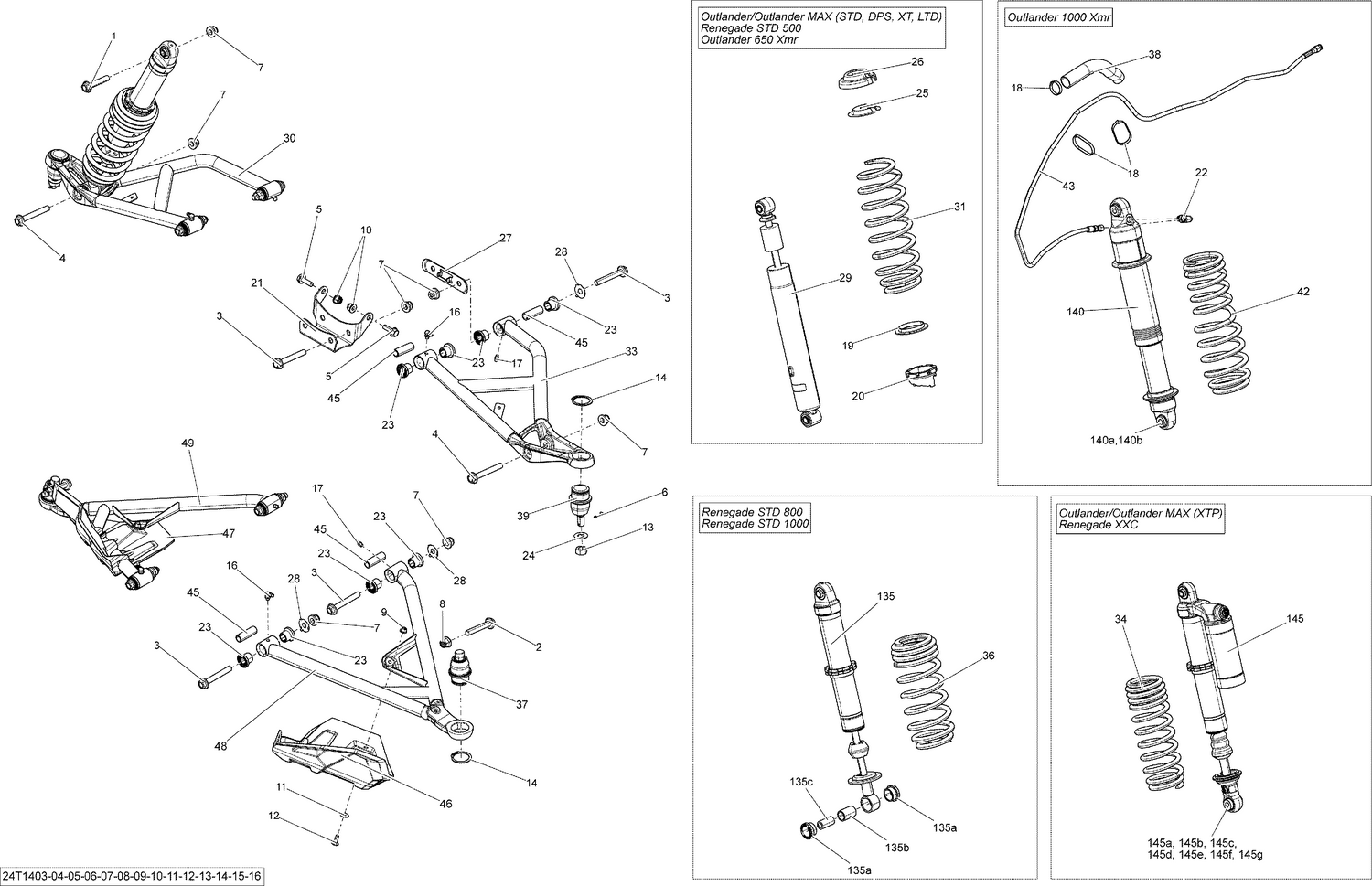

07- Front Suspension

Parts (44)

Ref	Part Number	Description
1	207605546	Hex. Flange Screw M10 X 55
2	207606044	Hex. Flange Screw M10 X 60
3	207607046	Hex. Flange Screw M10 X 70
4	250001038	Hex. Flange Screw M10 X 75 This part replaces 207607587.
5	207682544	Hex. Flange Screw M8 X 25
6	211400017	Cotter Pin
7	233201436	Hex. Flange Elastic Nut M10
8	233201434	Hex. Flange Elastic Nut M10
9	233261494	Hex. Flange Elastic Nut M6
10	233281414	Hex. Flange Elastic Nut M8
11	234062670	Stainless Steel Flat Washer
12	250000721	Torx Truss Screw M6 X 16 This part replaces 250000129.
13	250100099	Nut M12
14	293370035	Circlip
16	293550056	Grease Fitting 90°
17	408200700	Grease Fitting
18	XXX	Not Available As Spare Parts
21	705203247	Upper Front Holder
22	XXX	Not Available As Spare Parts
24	706200281	Hardened Washer This part replaces 250200086.
27	706200998	Front Suspension Cross Plate
28	XXX	Not Available As Spare Parts
30	706201797	Black RH Upper Arm
33	706201796	Black LH Upper Arm
36	XXX	Not Available As Spare Parts
37	706202045	Ball Joint This part replaces 706201393.
38	XXX	Not Available As Spare Parts
39	706202044	Ball Joint This part replaces 706201394.
42	XXX	Not Available As Spare Parts
43	XXX	Not Available As Spare Parts
46	706202808	LH Joint Protector This part replaces 706201829.
47	706202809	RH Joint Protector This part replaces 706201830.
48	706204639	LH Lower Suspension Arm This part replaces 706201874.
49	706202870	Black, RH Lower Arm This part replaces 706201875.
135	XXX	Not Available As Spare Parts
135a	XXX	Not Available As Spare Parts
135b	XXX	Not Available As Spare Parts
135c	XXX	Not Available As Spare Parts
140	XXX	Not Available As Spare Parts
140a	XXX	Not Available As Spare Parts
140b	XXX	Not Available As Spare Parts
145d	XXX	Not Available As Spare Parts
145e	XXX	Not Available As Spare Parts
145f	XXX	Not Available As Spare Parts
