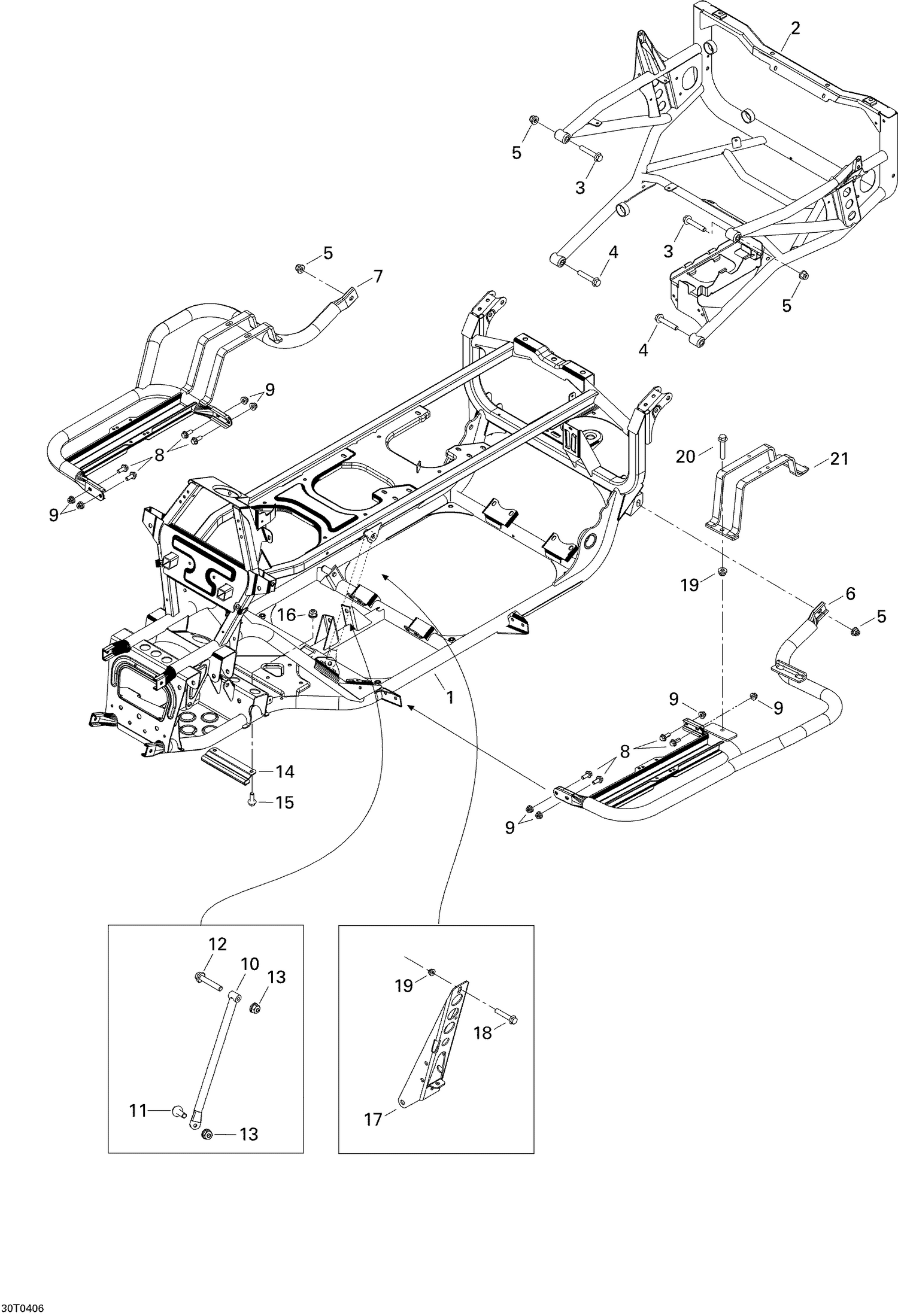

09- Frame
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705200759 | Frame (Black) |
| 2 | 705200864 | Frame Extension |
| 3 | 207605544 | Hex. Flange Screw M10 X 55 |
| 4 | 207608044 | HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership |
| 5 | 233201414 | Hex. Flange Elastic Nut M10 |
| 6 | 705200847 | LH Footrest, Black |
| 7 | 705200653 | RH Footrest, Black |
| 8 | 207682044 | Hex. Flange Screw M8 X 20 |
| 9 | 233281414 | Hex. Flange Elastic Nut M8 |
| 10 | 705200404 | RH Removable Brace |
| 10 | 705200405 | LH Removable Brace |
| 11 | 207682544 | Hex. Flange Screw M8 X 25 |
| 12 | 207685044 | Hex. Flange Screw M8 X 50 |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 705200575 | Bracket, Black |
| 15 | 207661644 | Hex. Flange Screw M6 X 16 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 705200803 | Brake Cab Support |
| 18 | 207682044 | Hex. Flange Screw M8 X 20 |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 207682544 | Hex. Flange Screw M8 X 25 |
