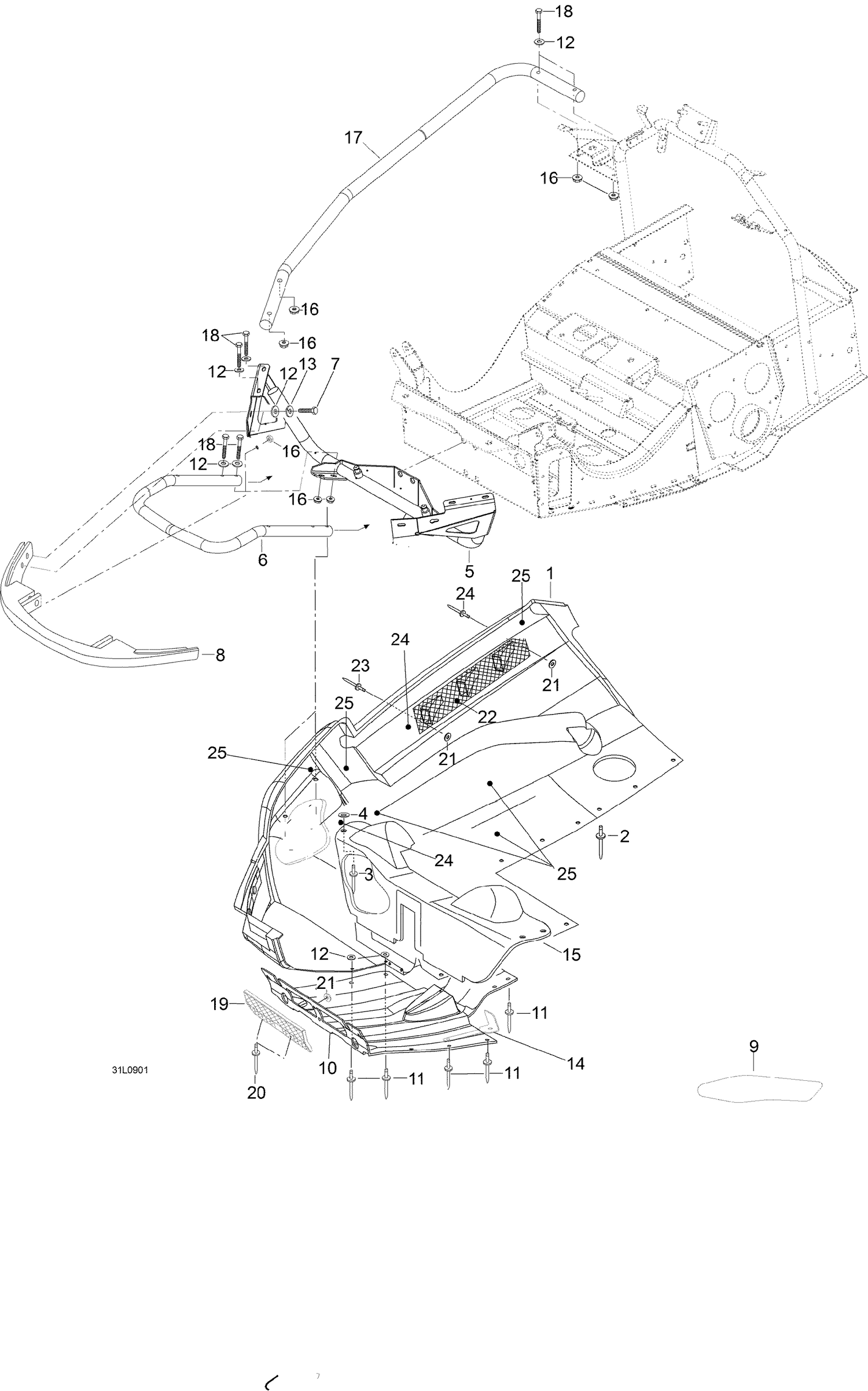

| Ref | Part Number | Description |
|---|
| 1 |
605155679 |
BOTTOM PAN ASS'Y, LH - Call your local BRP dealership |
| 1 |
605355655 |
Bottom Pan Ass'y |
| 2 |
36037 |
Black Rivet |
| 3 |
36108 |
Rivet |
| 4 |
20008 |
Washer 5,3 mm |
| 5 |
605255398 |
WELDED FRONT BUMPER SUPPORT - Call your local BRP dealership |
| 6 |
605351509 |
BUMPER FRONT - Call your local BRP dealership |
| 7 |
40029 |
Hex. screw M6 x 16 |
| 8 |
502006719 |
Bumper, Black |
| 9 |
605355681 |
Bottom Isolation LH |
| 10 |
605154930 |
Central Front Pottom Pan |
| 11 |
36072 |
Rivet |
| 12 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 13 |
20052 |
Spring Washer |
| 14 |
605355617 |
BOTTOM PAN RIVETING PLATE - Call your local BRP dealership |
| 15 |
605355606 |
SHOCK COVER - Call your local BRP dealership |
| 17 |
605255395 |
SIDE BUMPER - Call your local BRP dealership |
| 18 |
40002 |
Hex. screw M6 x 40 |
| 19 |
605255513 |
FRONT GRILL - Call your local BRP dealership |
| 20 |
36071 |
Rivet |
| 21 |
20008 |
Washer 5,3 mm |
| 22 |
605354968 |
RH SIDE GRILL - Call your local BRP dealership |
| 22 |
605354969 |
LH SIDE GRILL - Call your local BRP dealership |
| 23 |
36009 |
Rivet |
| 24 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
