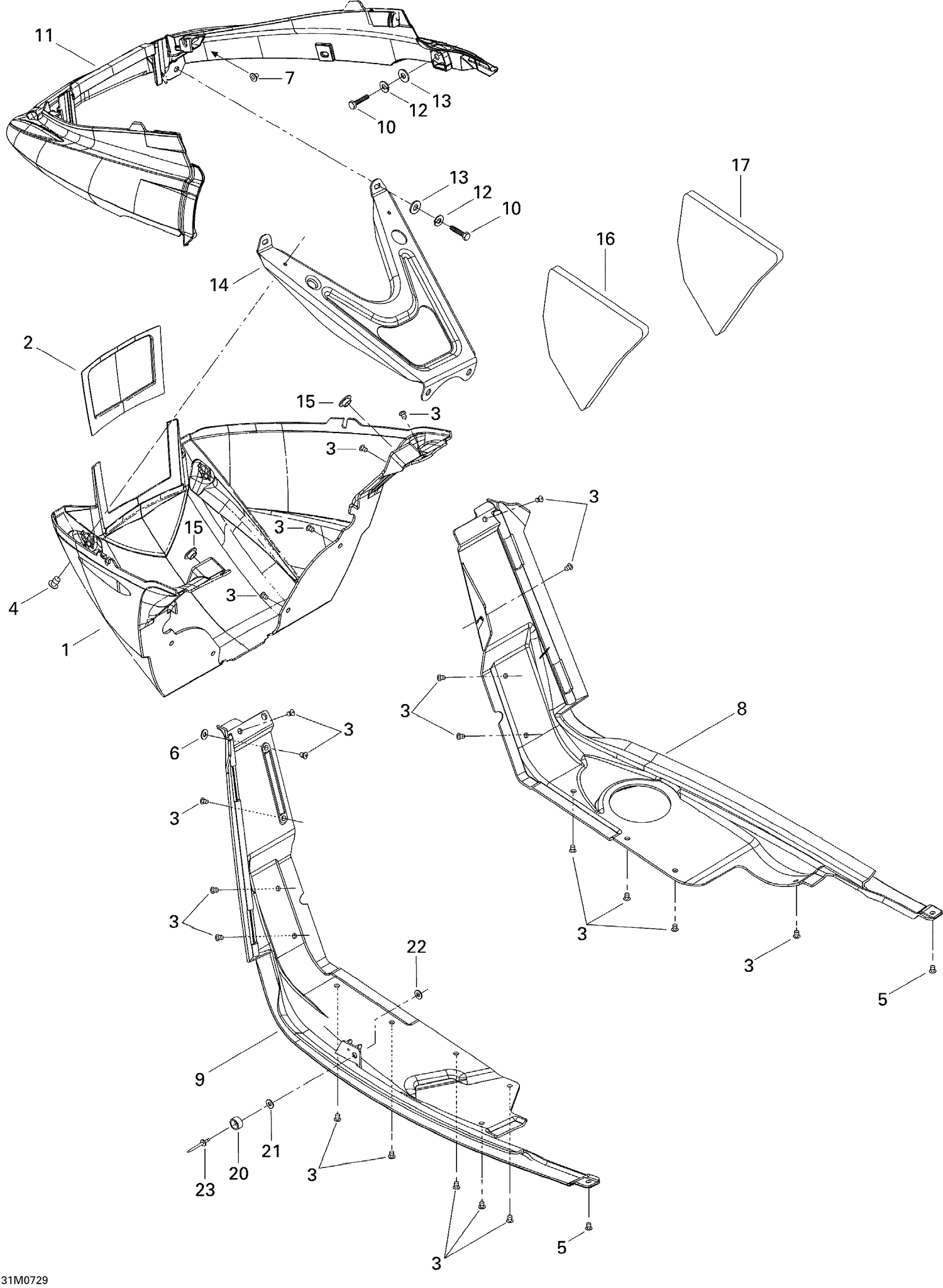

09- Bottom Pan RENX
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502006681 | FRONT BOTTOM PAN, BLACK - Call your local BRP dealership |
| 2 | 502006687 | BOTTOM PAN GRILL - Call your local BRP dealership |
| 3 | 293150104 | Pop Rivet 3/16" |
| 4 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 5 | 293150103 | Pop Rivet 3/16" |
| 6 | 517124300 | Washer |
| 7 | 293100003 | Nut Welded, M6 |
| 8 | 502006702 | RH BOTTOM PAN - Call your local BRP dealership |
| 9 | 502006703 | LH BOTTOM PAN - Call your local BRP dealership |
| 10 | 207161444 | Hex. Screw M6 X 14 |
| 11 | 502006679 | Bumper, Black |
| 12 | 234161471 | Lock Washer M6, Black |
| 13 | 224061121 | Flat Washer |
| 14 | 502006772 | Support |
| 15 | 414916600 | Black, Nylon Cap |
| 16 | 502006722 | LH FOAM - Call your local BRP dealership |
| 17 | 502006721 | RH FOAM - Call your local BRP dealership |
| 20 | 415018100 | Rubber Stopper |
| 21 | 250200024 | Rubber Washer 5 mm |
| 22 | 293150007 | WASHER - Call your local BRP dealership |
