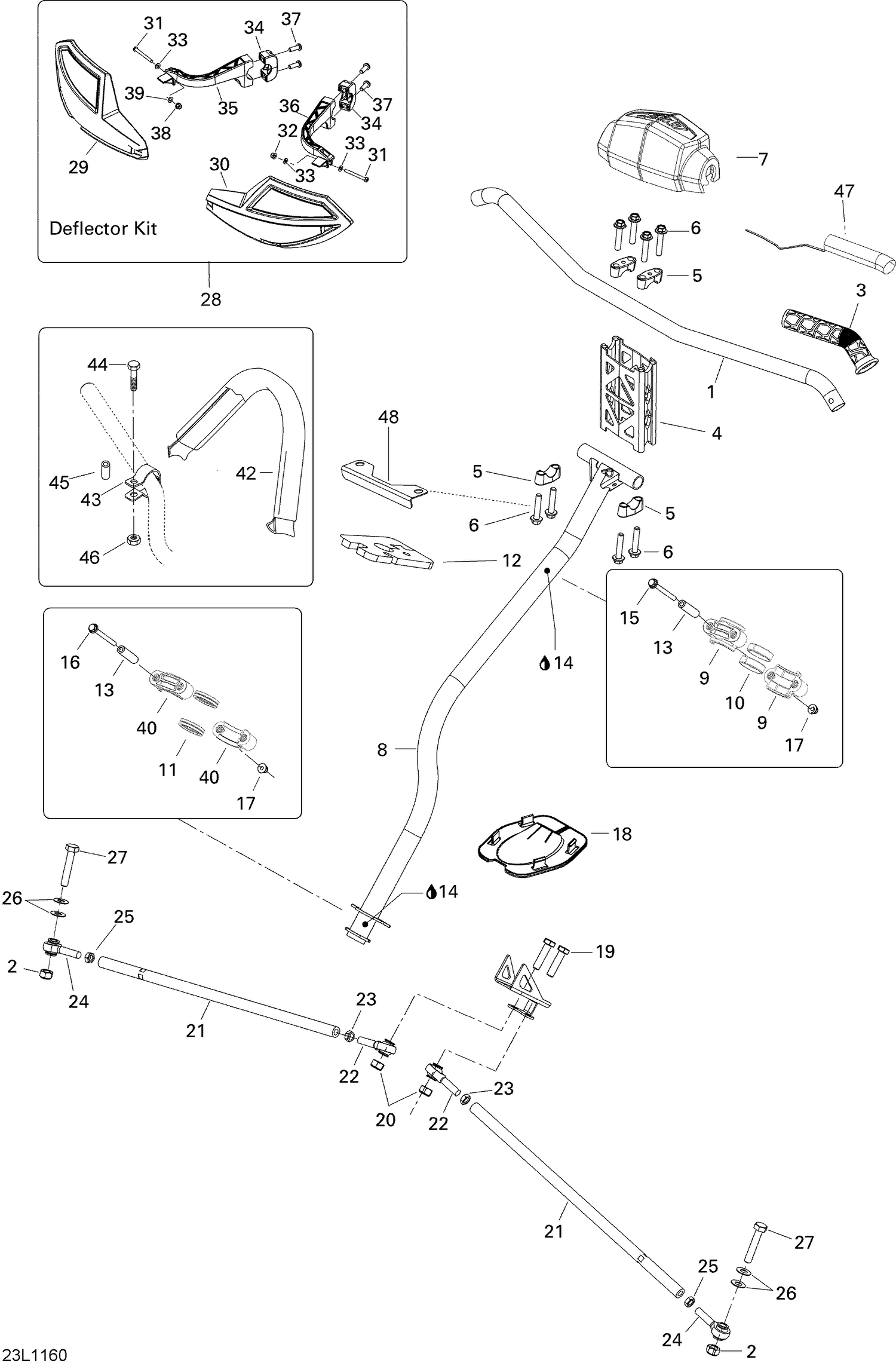

07- Steering System
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152709 | Clear Handle Bar This part replaces 506152458. |
| 2 | 232500416 | Elastic Stop Nut M10 |
| 3 | 506152486 | Grip This part replaces 506152226. |
| 4 | 860603800 | Extension 130mm |
| 5 | 506152751 | Steering Support This part replaces 506152395. |
| 6 | 250000285 | Hex. Flanged Screw M8 x 40 |
| 7 | 506152265 | Steering Pad |
| 8 | 506152964 | Main Tube This part replaces 506152469. |
| 9 | 506152508 | Upper Half-Housing |
| 10 | 506152509 | Upper Anti-Vibration Gasket |
| 11 | 506152518 | Lower Vibration Ring |
| 12 | 506152521 | Cushion |
| 13 | 506152297 | Housing Bushing |
| 14 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 15 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 16 | 207667044 | Hex Flange Screw M6 x 65 |
| 17 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 18 | 506152163 | Plate |
| 19 | 207004044 | Hex. Screw M10 X 40 |
| 20 | 232500416 | Elastic Stop Nut M10 |
| 21 | 506152496 | Tie-Rod |
| 22 | 506152081 | LH Ball Joint |
| 23 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 24 | 506152019 | RH Ball Joint |
| 25 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 26 | 506152194 | Washer |
| 27 | 207005544 | Hex. Screw M10 X 55 |
| 28 | 517304606 | Deflector pack white (Opt.) |
| 29 | Not | Available As Spare Part - RH deflector |
| 30 | Not | Available As Spare Part - LH deflector |
| 31 | 205444086 | Socket Head Screw M4 X 40 |
| 32 | 232541484 | Elastic Stop Nut M4 |
| 33 | 234041480 | Flat Washer 4 mm |
| 34 | 517303264 | U-Clamp |
| 35 | 715001379 | KIT SUPPORT - Call your local BRP dealership This part replaces 715000513. |
| 36 | 715001379 | KIT SUPPORT - Call your local BRP dealership This part replaces 715000513. |
| 37 | 250000172 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 38 | 232541484 | Elastic Stop Nut M4 |
| 39 | 234041480 | Flat Washer 4 mm |
| 40 | 506152217 | Lower Half-Housing |
| 42 | 506152115 | Strap Ass'y |
| 43 | 506152536 | Black Support Plate This part replaces 506151792. |
| 44 | 207662084 | Hex. Flanged Screw M6 X 20 |
| 45 | 506152156 | Bushing |
| 46 | 233261494 | Hex. Elastic Flanged Nut M6 |
| 47 | 506152467 | Heated film |
