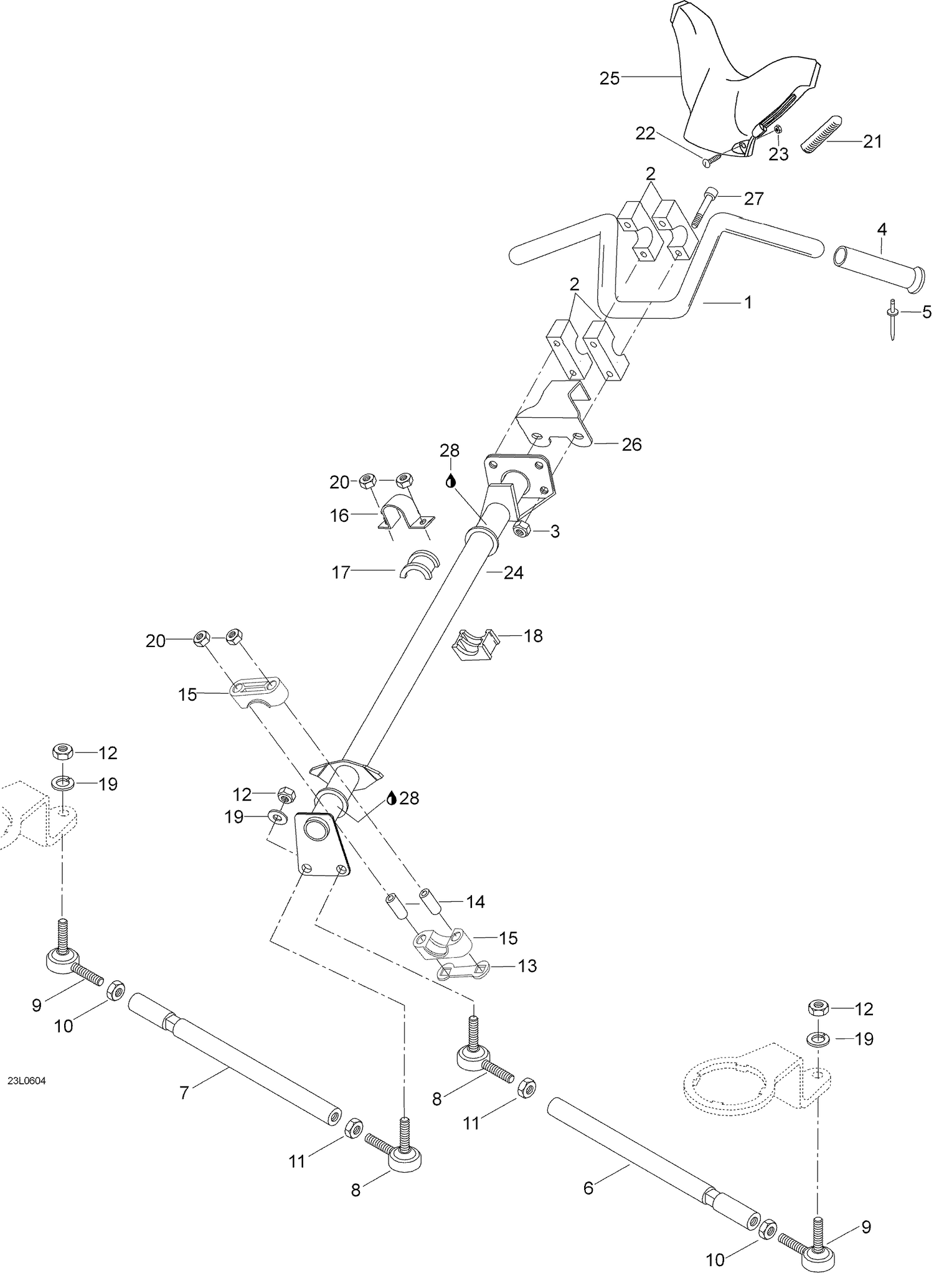

| Ref | Part Number | Description |
|---|
| 1 |
529751 |
Steering Bar - Call your local BRP dealership |
| 2 |
548448 |
Support of Bar - Call your local BRP dealership |
| 3 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 4 |
5340464 |
Grip |
| 5 |
36005 |
Rivet |
| 6 |
5441066 |
TIE ROD - Call your local BRP dealership |
| 7 |
548983 |
Tie Rod. - Call your local BRP dealership |
| 8 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 9 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 10 |
33019 |
Nut M10 R.H. |
| 11 |
33017 |
Nut M10x1.25VASDIN934 m8 ZNe(1=10pcs) - Call your local BRP dealership |
| 12 |
33023 |
Nut elastic M10 |
| 13 |
506150600 |
Stopper plate |
| 14 |
506150500 |
Housing bushing |
| 15 |
506150400 |
Half housing |
| 16 |
5343381 |
Retaining support - Call your local BRP dealership |
| 17 |
572064500 |
BUSHING - Call your local BRP dealership |
| 18 |
572064400 |
Half housing |
| 19 |
20015 |
Lock washer 10mm |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 21 |
572023900 |
Key |
| 22 |
40156 |
Slot sc. M5 x 20DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 23 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 24 |
5244297 |
Main tube |
| 25 |
572023800 |
Steering padding |
| 26 |
5444196 |
Support |
| 27 |
40286 |
Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
