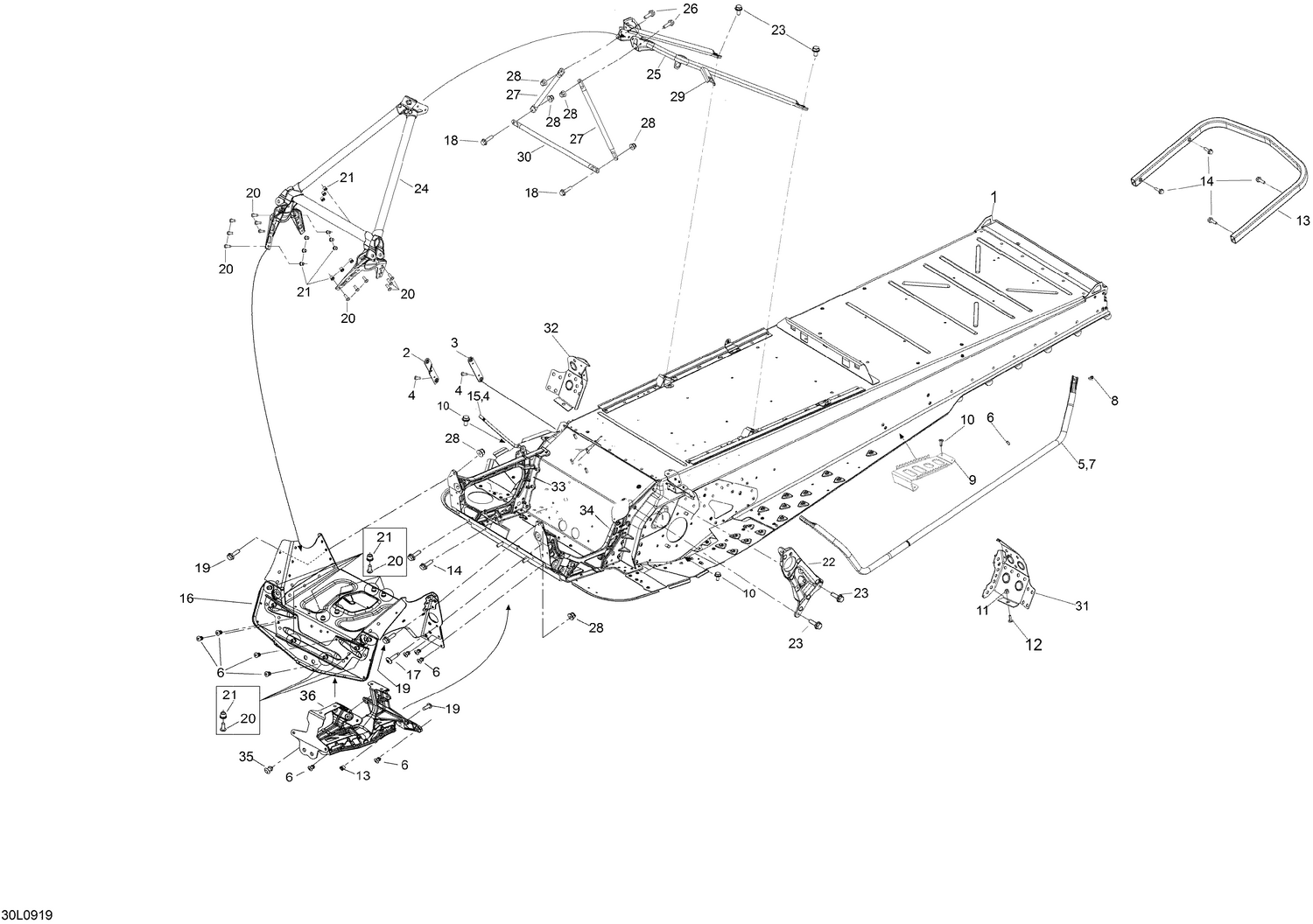

| Ref | Part Number | Description |
|---|
| 1 |
518326073 |
Frame |
| 2 |
518326123 |
GEARBOX FRONT PLATE - Call your local BRP dealership |
| 3 |
518326124 |
Gearbox Rear Plate |
| 4 |
390402200 |
Pop Rivet 3/16" |
| 5 |
518326963 |
LH Footboard Support Tube This part replaces 605254999. |
| 6 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 7 |
518326964 |
RH Footboard Support Tube This part replaces 605255000. |
| 8 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 9 |
605354068 |
FOOTREST - Call your local BRP dealership |
| 10 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 12 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 13 |
511000563 |
Black, Rear Bumper |
| 14 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 15 |
514054616 |
SPRING BRACKET - Call your local BRP dealership |
| 16 |
518328320 |
Cross Member S Module This part replaces 518325924. |
| 17 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 18 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 19 |
293150179 |
MONOBOLT RIVET 4.8 - Call your local BRP dealership This part replaces 293150175. |
| 20 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
518327460 |
Driven Pulley Support This part replaces 518325933. |
| 23 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 24 |
518326970 |
Front Member This part replaces 518325929. |
| 25 |
518329107 |
UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 26 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 27 |
518325114 |
Upper Lateral Column Support |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 29 |
414227300 |
Clip |
| 30 |
518325115 |
Center Column Support |
| 31 |
518325528 |
TOE HOOK LH - Call your local BRP dealership |
| 32 |
518325529 |
RH Footrest |
| 33 |
518326795 |
RH Member This part replaces 518325922. |
| 34 |
518326796 |
LH Member This part replaces 518325923. |
| 35 |
Not |
Available As Spare Part - Pop Rivet |
