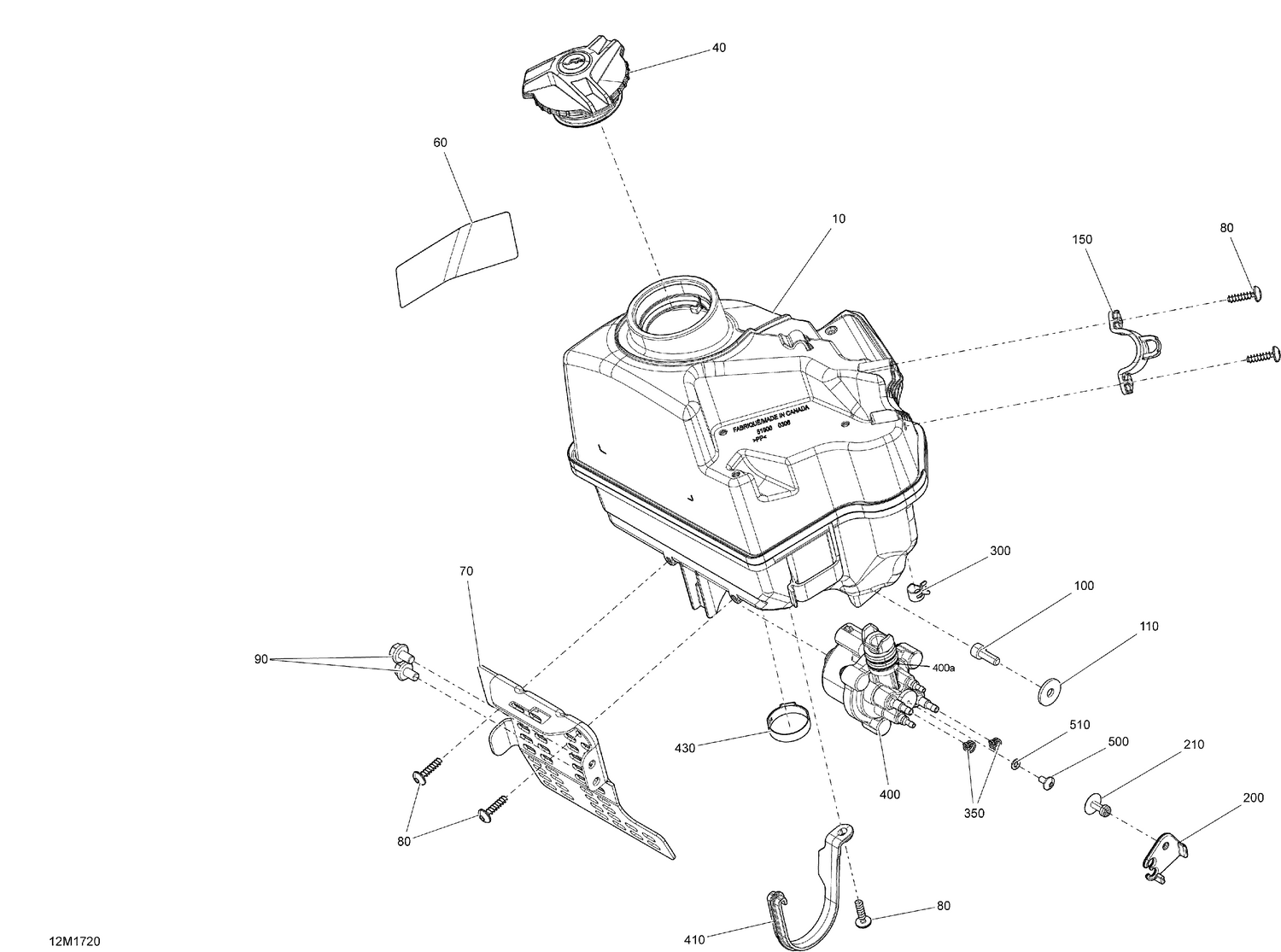

02- Oil System - All Models
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 519000346 | Oil Tank This part replaces 519000306. |
| 40 | 519000358 | Cap Ass'y This part replaces 519000315. |
| 60 | 516008439 | Oil Warning Decal This part replaces 516007443. |
| 65 | 516008206 | Oil Level Decal |
| 70 | 519000350 | Support This part replaces 519000319. |
| 80 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 90 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 100 | 205561644 | Socket Screw M6 X 16, Scotch Grip |
| 110 | 224061201 | Flat Washer |
| 150 | 519000320 | Clamp |
| 200 | 519000322 | Hose Protector |
| 210 | 293150104 | Pop Rivet 3/16" |
| 300 | 414420700 | Spring Clamp |
| 350 | 293650252 | Hose Clamp |
| 400a | 415130335 | O-Ring |
| 410 | 519000318 | Bracket |
| 430 | 293650099 | Crimp Clamp |
| 500 | 250000741 | Screw-Torx Button Head M4 X 8 |
