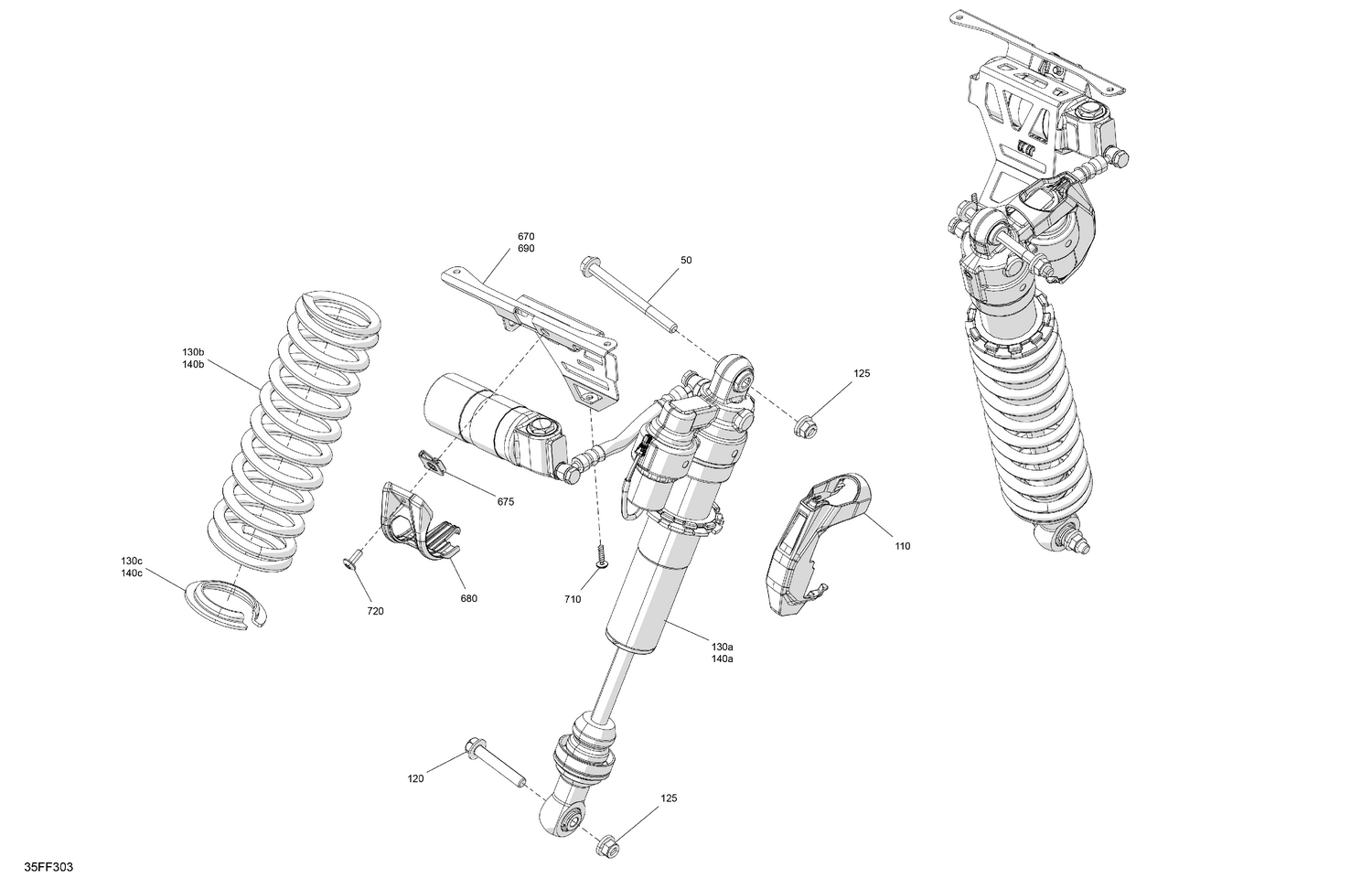

05- Suspension - Front Shocks
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 230601046 | Hex Flange Screw DIN.6921 |
| 120 | 207606046 | Hex. Flange Screw M10 X 6 |
| 125 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 130a | 706205627 | LH Front Shock Absorber |
| 130b | 706205628 | Orange Crush, Front Compression Spring |
| 130c | 706206701 | Spring Guide |
| 140a | 706205413 | RH Front Shock Absorber |
| 140b | 706205628 | Orange Crush, Front Compression Spring |
