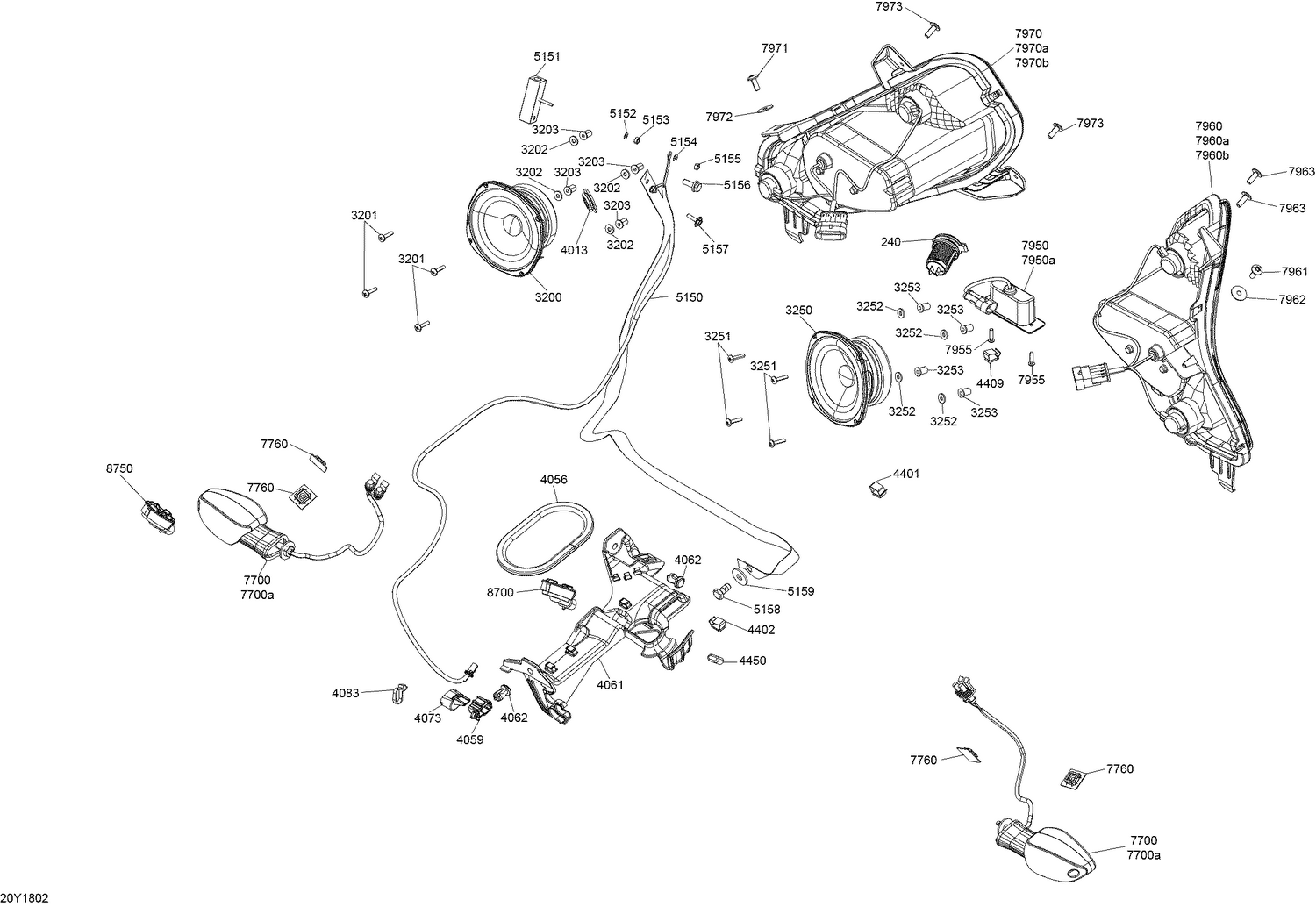

10- Electrical Cargo
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 240 | 219400510 | USB Outlet |
| 3200 | 710005433 | Haut-Parleur 4.5" |
| 3201 | 250000783 | Torx-Truss M/S M4 X 20 |
| 3202 | 517225900 | Flat Washer |
| 3203 | 705003635 | Well Rubber Nut M4 X 0.7 |
| 3250 | 710005433 | Haut-Parleur 4.5" |
| 3251 | 250000783 | Torx-Truss M/S M4 X 20 |
| 3252 | 517225900 | Flat Washer |
| 3253 | 705003635 | Well Rubber Nut M4 X 0.7 |
| 4013 | 708400166 | Cap |
| 4056 | 219704354 | Trim 1000Mm Long |
| 4059 | 710004903 | Connector Plug |
| 4061 | 710002860 | Rear Support |
| 4062 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 4073 | 710004902 | Connector Plug |
| 4083 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4401 | 414227300 | Clip |
| 4402 | 414227300 | Clip |
| 4409 | 414227300 | Clip |
| 4450 | 710002212 | Rubber Plug, 16.65 X 5.35 mm |
| 5150 | 710005506 | Antenna Cable Ass'y |
| 5151 | 710001532 | Antenna Support |
| 5152 | 234140602 | Curved Stainless Lock Washer DIN.128A |
| 5153 | 232041200 | Brass Hex Nut M4 DIN.934 |
| 5154 | 234040200 | Brass Flat Washer DIN.433 M4 |
| 5155 | 232041200 | Brass Hex Nut M4 DIN.934 |
| 5156 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 5157 | 250000725 | Screw M4 X 16 |
| 5158 | 207381660 | Hex. Screw M8 X 16, Scotch Grip |
| 5159 | 234082600 | Flat Washer 8 mm, Stainless |
| 7700a | 219800039 | Bulb 12V/10W, Amber |
| 7950a | 219800128 | Bulb |
| 7955 | 250000287 | Flange Torx Screw K40 X 16 |
| 7960a | 520000758 | Bulb |
| 7961 | 250000881 | Torx Truss M8 X 16 |
| 7962 | 224060201 | Flat Washer |
| 7963 | 250000881 | Torx Truss M8 X 16 |
| 7970a | 520000758 | Bulb |
| 7971 | 250000881 | Torx Truss M8 X 16 |
| 7972 | 224060201 | Flat Washer |
| 7973 | 250000881 | Torx Truss M8 X 16 |
| 8700 | 710002349 | LH Housing |
