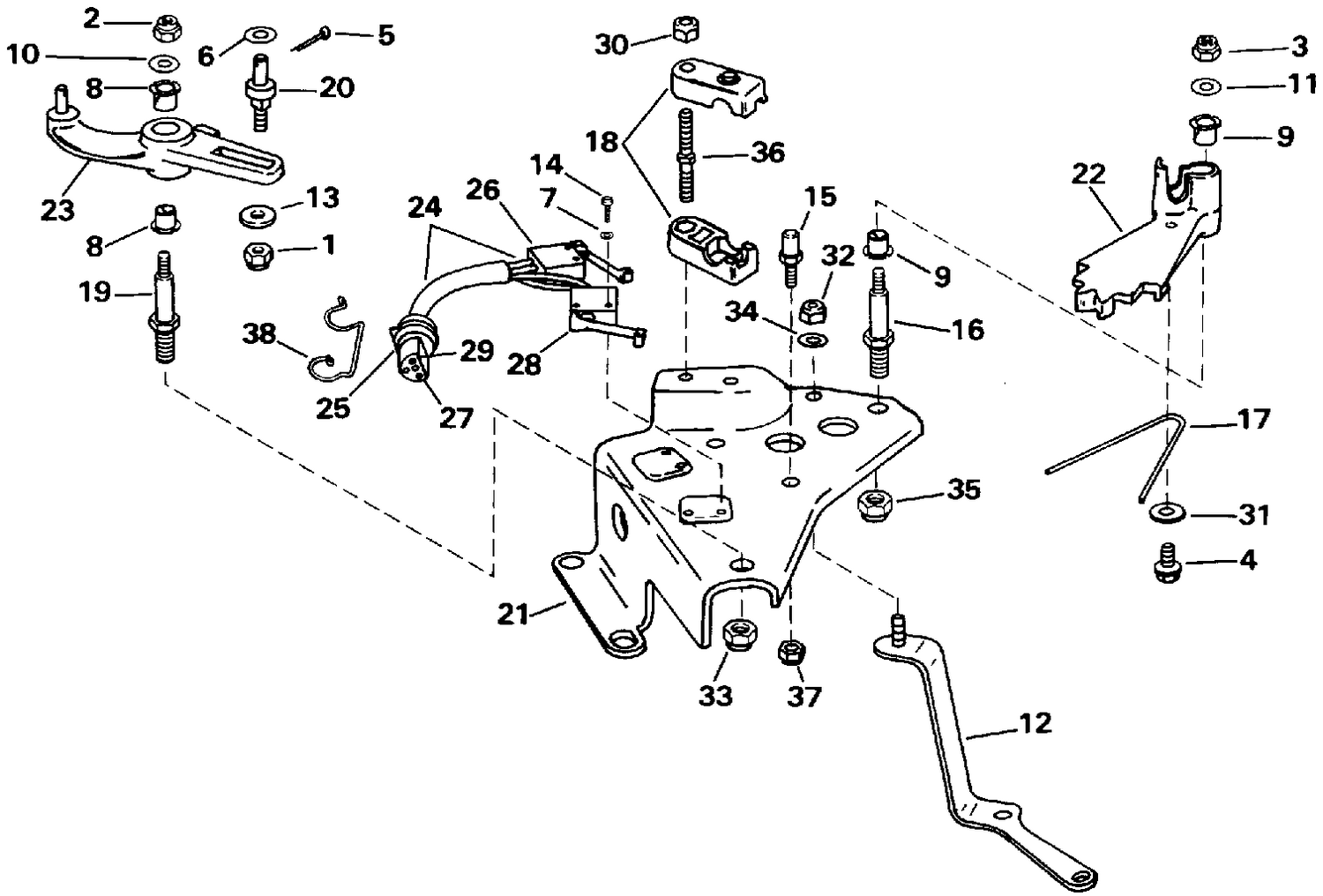

SHIFT BRACKET
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0915042 | SCREW, Shift interrupter spring |
| 10 | 0328738 | LOCKWASHER |
| 11 | 0328738 | LOCKWASHER |
| 12 | 0987933 | BRACKET & STUD |
| 12 | 0987934 | BRACKET & STUD |
| 15 | 0987715 | PIN & BUSHING, Stop |
| 16 | 0912094 | SHAFT Pivot |
| 17 | 0912686 | SPRING, Shift interrupter |
| 18 | 3852836 | ANCHOR BLOCK This part replaces 0913795. |
| 19 | 0914616 | SHAFT, Shift lever |
| 20 | 3853314 | PIN, Shift cable This part replaces 0914727. |
| 21 | 0916193 | BRACKET, Shift assist |
| 22 | 0914924 | HOUSING, Shift interrupter |
| 23 | 0987758 | LEVER ARM & PIN |
| 24 | 0987757 | SWITCH & CONNECTOR |
| 26 | 0984148 | SWITCH & TERMINAL |
| 28 | 0987756 | SWITCH, Neutral drive |
| 31 | 0328738 | LOCKWASHER |
| 36 | 3850682 | STUD, Anchor block This part replaces 0914682. |
