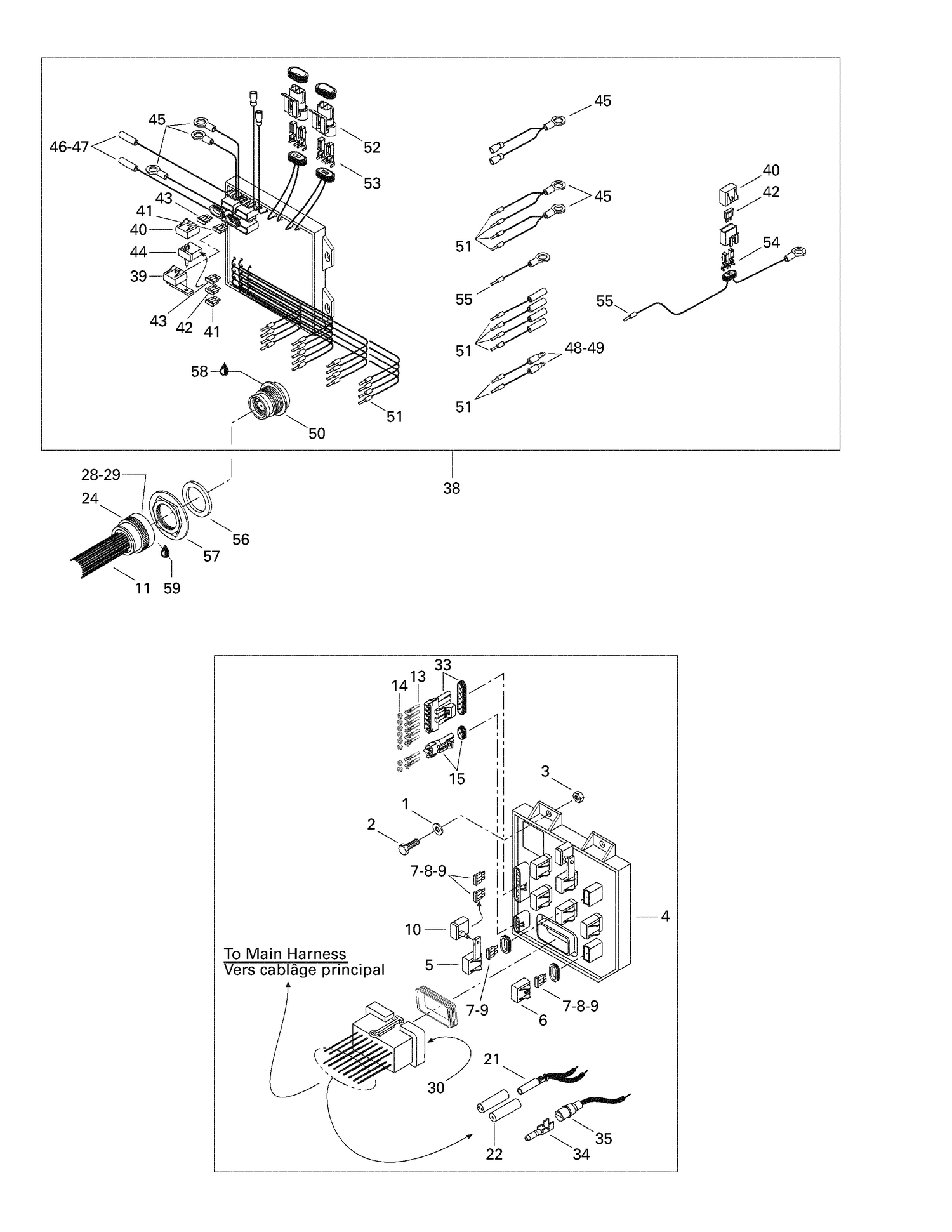

| Ref | Part Number | Description |
|---|
| 1 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 2 |
208562560 |
Phillips Screw M6 X 25 This part replaces 216362560. |
| 3 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 5 |
278001326 |
Fuse Holder Cap This part replaces 278000345. |
| 6 |
278000378 |
FUSE CAP - Call your local BRP dealership |
| 7 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 8 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 9 |
278001197 |
Fuse, 10 Amperes |
| 10 |
278000379 |
Fuse Holder |
| 13 |
409007300 |
Female Terminal |
| 14 |
278000218 |
Wire Seal |
| 15 |
278000220 |
Male Connector, 2 Circuits |
| 21 |
278001009 |
Female Terminal |
| 22 |
278001007 |
Insulated Sheath |
| 24 |
278000870 |
Male Housing(Canon) |
| 28 |
278000871 |
Female Terminal(Canon) |
| 29 |
278000872 |
Female terminal(Canon) |
| 30 |
278000995 |
FEMALE TERMINAL - Call your local BRP dealership |
| 33 |
278000221 |
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 34 |
278000230 |
Male Terminal |
| 35 |
278001008 |
Insulated Sheath |
| 39 |
278001326 |
Fuse Holder Cap This part replaces 278000345. |
| 40 |
278000378 |
FUSE CAP - Call your local BRP dealership |
| 41 |
278000344 |
Fuse, 5 Amperes |
| 42 |
409003900 |
Fuse, 20 Amperes This part replaces 278001143. |
| 43 |
278000343 |
Fuse, 15 Amperes |
| 44 |
278000379 |
Fuse Holder |
| 45 |
278000992 |
Open Barrel |
| 46 |
278001009 |
Female Terminal |
| 47 |
278001007 |
Insulated Sheath |
| 48 |
278000230 |
Male Terminal |
| 49 |
278001007 |
Insulated Sheath |
| 50 |
278000867 |
Female Housing(Canon) |
| 51 |
278000868 |
Male Terminal(Canon) |
| 52 |
278001113 |
Male Connector, 2 Circuits |
| 53 |
278001114 |
Female Terminal |
| 54 |
Not |
Available As Spare Part - Female Terminal |
| 55 |
278000869 |
Male Terminal |
| 56 |
293250053 |
Gasket(Canon) |
| 57 |
211100029 |
Nut(Canon) |
| 58 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
