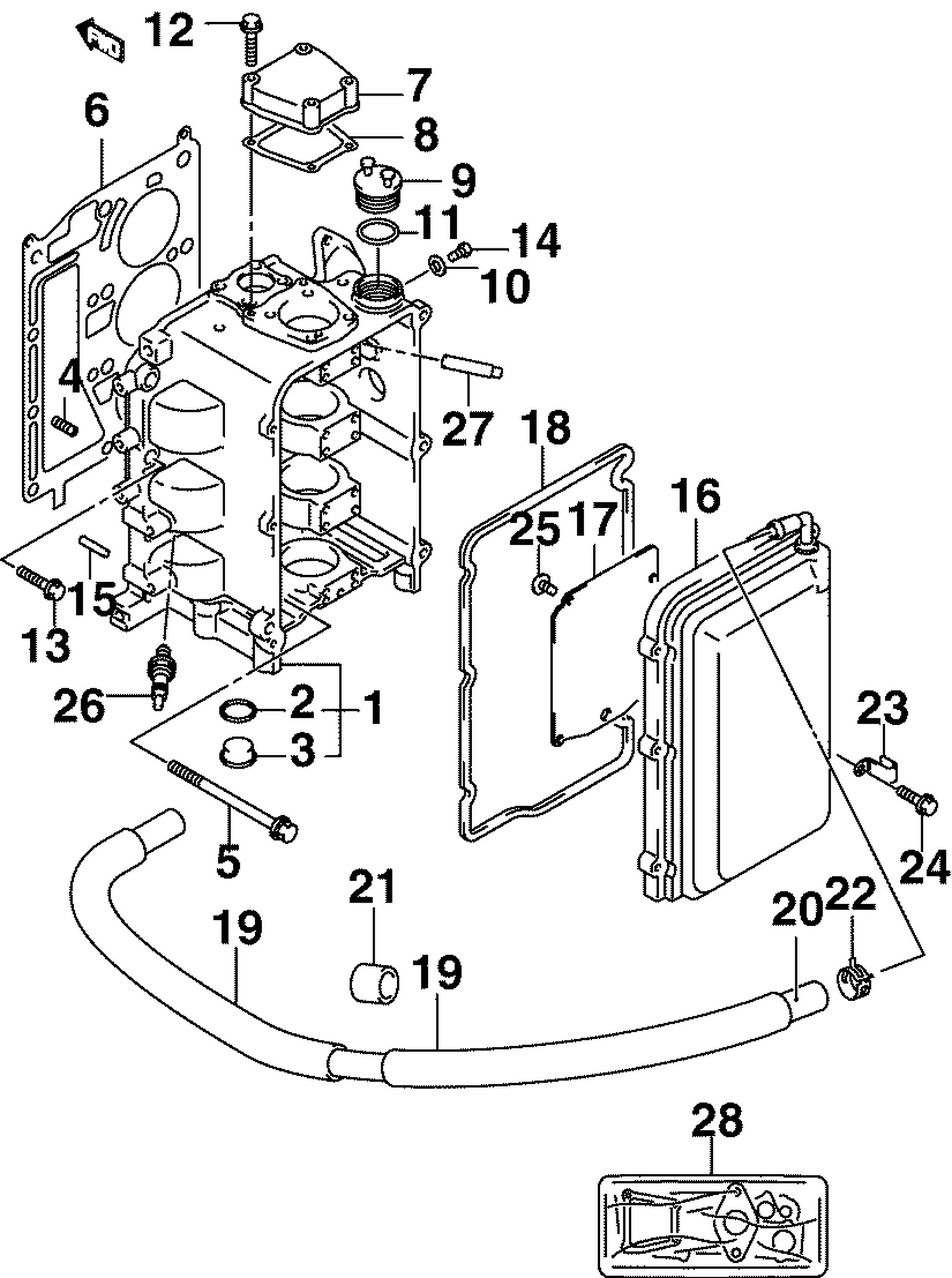

CYLINDER HEAD
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034735 | HEAD ASSY, CYLINDER |
| 5 | 5031915 | BOLT, Cylinder head |
| 6 | 5031916 | GASKET, CYLINDER HEAD |
| 7 | 5031919 | COVER, CYL HEAD UPPER |
| 8 | 5031920 | GASKET, CYL HEAD COVER |
| 9 | 5030633 | CAP, OIL FILLER |
| 10 | 5031862 | GASKET |
| 11 | 5030541 | O RING |
| 13 | 5030996 | BOULON |
| 14 | 5032273 | SCREW |
| 15 | 5031014 | PIN |
| 16 | 5034734 | COVER, CYLINDER HEAD |
| 17 | 5031918 | PLATE, Breather |
| 18 | 5031921 | GASKET, Cylinder head cover |
| 21 | 5032455 | CUSHION |
| 23 | 5031903 | CLAMP |
| 26 | 5031287 | PLUG, SPARK (DCPR6E) |
