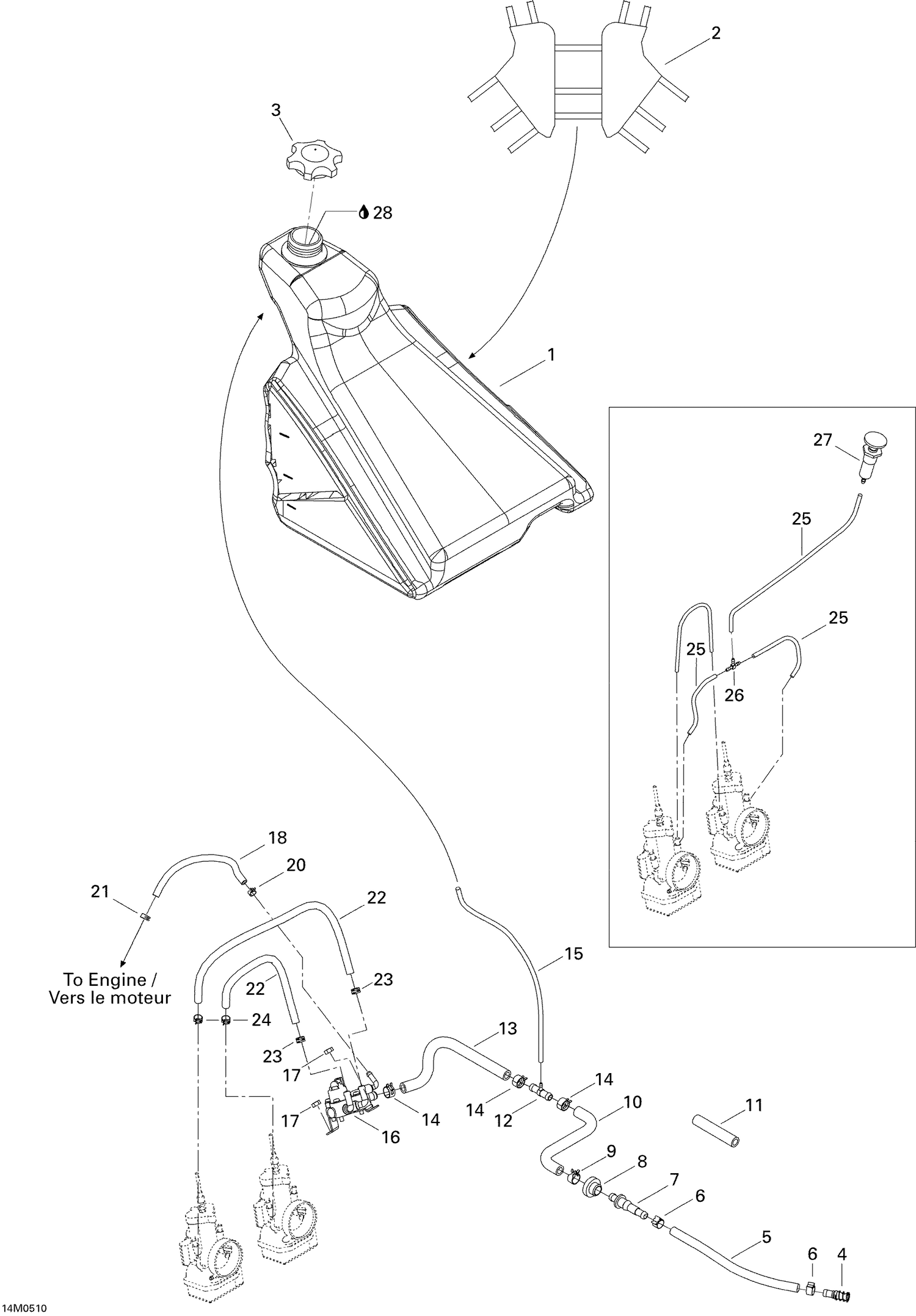

| Ref | Part Number | Description |
|---|
| 1 |
513033099 |
Fuel Tank |
| 2 |
513033075 |
TANK COVER, BLACK - Call your local BRP dealership |
| 3 |
513033752 |
Fuel Tank Cap This part replaces 513033103. |
| 4 |
414872100 |
Fuel Filter Strainer |
| 5 |
415097800 |
POLYURETHANE HOSE 7.6MM - Call your local BRP dealership |
| 6 |
513033010 |
Norma Spring Clamp |
| 7 |
414872700 |
Male Connector |
| 8 |
707800347 |
Grommet This part replaces 570273900. |
| 9 |
513032979 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 10 |
513033072 |
Formed Hose |
| 11 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 12 |
415119300 |
T-Fitting |
| 13 |
513033031 |
FORMED HOSE - Call your local BRP dealership |
| 14 |
513032979 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 15 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 16 |
403901810 |
FUEL PUMP - Call your local BRP dealership |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
513033035 |
HOSE - Call your local BRP dealership |
| 20 |
414415200 |
Spring Clamp |
| 21 |
513033029 |
Universal Spring Clamp |
| 22 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 23 |
414554800 |
Spring Clamp |
| 24 |
414420700 |
Spring Clamp |
| 25 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 26 |
414222400 |
T-Fitting |
| 27 |
415060500 |
Primer |
| 28 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 28 |
779120 |
Huile minérale 2T Premium pour motoneige This part replaces 413803000. |
