Home / BRP / EVINRUDE / 1999 / 6 / E6R4EEM 1999 / 10- Electrical Accessories 2

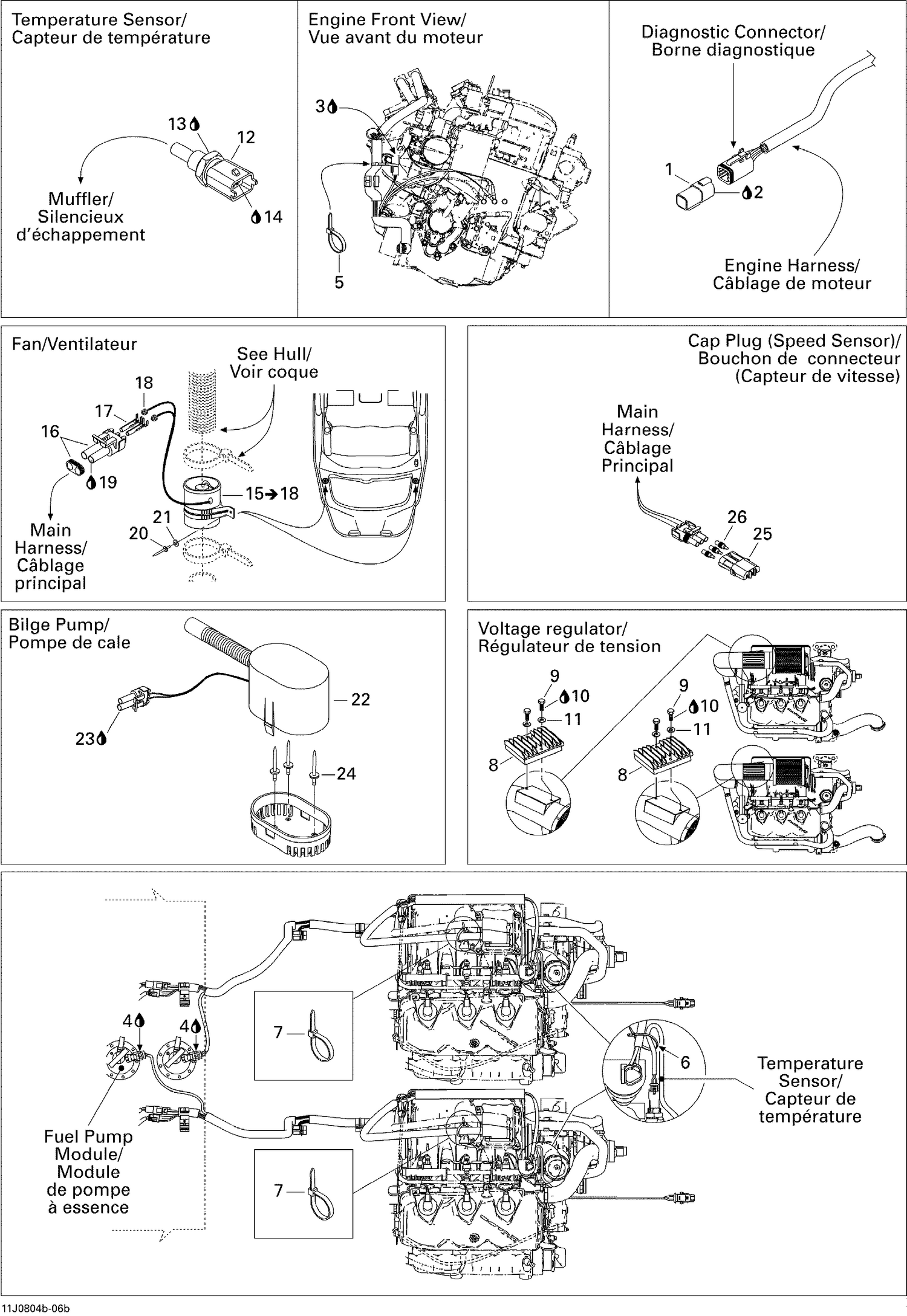

10- Electrical Accessories 2

10- Electrical Accessories 2

Parts (23)

RefPart NumberDescription
1 278002704 Diagnostic Connector This part replaces 278002148.
2 219704453 Was 293550004 Dielectric Grease, 150 g
3 219704453 Was 293550004 Dielectric Grease, 150 g
4 219704453 Was 293550004 Dielectric Grease, 150 g
5 414115200 Tie-Rap 180 mm
6 293750002 Tie Wrap 142 mm
7 293750002 Tie Wrap 142 mm
8 710001103 Voltage Regulator
9 204100226 HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership
10 293800060 Loctite 243, 10 ml
11 211200025 Lock Washer 1/4”
12 278002895 Temperature Sensor This part replaces 278001016.
14 219704453 Was 293550004 Dielectric Grease, 150 g
16 278000220 Male Connector, 2 Circuits
17 278000223 Female Terminal
18 278000218 Wire Seal
19 219704453 Was 293550004 Dielectric Grease, 150 g
20 293150008 Pop Rivet 3/16" This part replaces 293150011.
21 234052600 Flat Washer 5 mm, Stainless
22 204471431 Bilge Pump
23 219704453 Was 293550004 Dielectric Grease, 150 g
24 293150029 RIVET_POP 5/32 - Call your local BRP dealership
25 278000281 Female Terminal Housing, 3 Circuits
