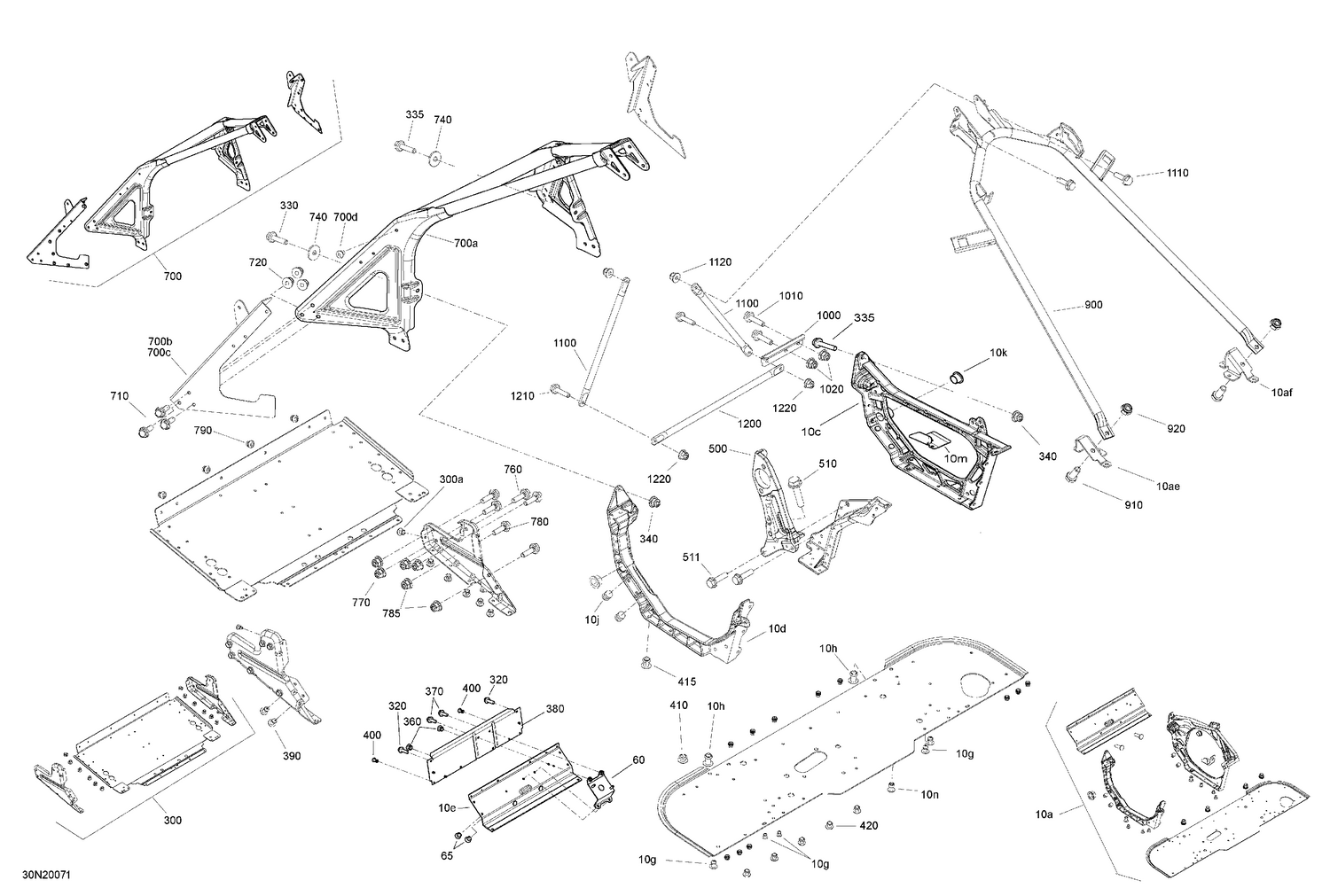

09- Frame - System - Front Section
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10ae | 518329109 | LH Support Tube Bracket |
| 10af | 518329110 | RH Support Tube Bracket |
| 10c | 518326795 | RH Member |
| 10d | 518326796 | LH Member |
| 10e | 518326198 | Front Member |
| 10g | 390909100 | Avex Rivet |
| 10h | 293150120 | Hemlock Rivet 6.5 mm |
| 10j | 293150119 | Hemlock Rivet, 6.5 mm |
| 10k | 505072690 | Leg Bushing |
| 10m | 518328194 | Muffler Support |
| 10n | 293150163 | Rivet Hucklok |
| 60 | 518325943 | MAG Engine Support |
| 65 | 293150119 | Hemlock Rivet, 6.5 mm |
| 300a | 390909200 | Avex Rivet |
| 320 | 210262050 | Hexagonal Head Screw |
| 330 | 207662544 | Hex. Flange Screw M6 X 25 |
| 335 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 340 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 360 | 293150119 | Hemlock Rivet, 6.5 mm |
| 370 | 207661644 | Hex. Flange Screw M6 X 16 |
| 380 | 518325620 | SUPPORT PLATE - Call your local BRP dealership |
| 390 | 390909100 | Avex Rivet |
| 400 | 293150163 | Rivet Hucklok |
| 410 | 293150119 | Hemlock Rivet, 6.5 mm |
| 415 | 293150183 | Rivet |
| 420 | 390909200 | Avex Rivet |
| 500 | 518328434 | Pulley Support |
| 510 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 511 | 250001073 | Hex. Flange Screw M8 X 30 Scotch Grip |
| 700a | 518326558 | Front Member, S Module |
| 700b | 502007077 | LH Bumper Fastener |
| 700c | 502007078 | RH Bumper Fastener |
| 700d | 390909200 | Avex Rivet |
| 710 | 207662044 | Hex. Flange Screw M6 X 20 |
| 720 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 740 | 224061201 | Flat Washer |
| 760 | 207662044 | Hex. Flange Screw M6 X 20 |
| 770 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 780 | 207662044 | Hex. Flange Screw M6 X 20 |
| 785 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 790 | 390909200 | Avex Rivet |
| 900 | 518329105 | Upper Support Tube |
| 910 | 207182044 | Hex. Screw M8 X 20 |
| 920 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1000 | 518330343 | Extension Plate |
| 1010 | 207662544 | Hex. Flange Screw M6 X 25 |
| 1020 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1100 | 518325114 | Upper Lateral Column Support |
| 1110 | 207662056 | Hex. Flange Screw M6 x 20 |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1200 | 518325115 | Center Column Support |
| 1210 | 207662556 | Hex. Flange Screw M6 X 25 |
