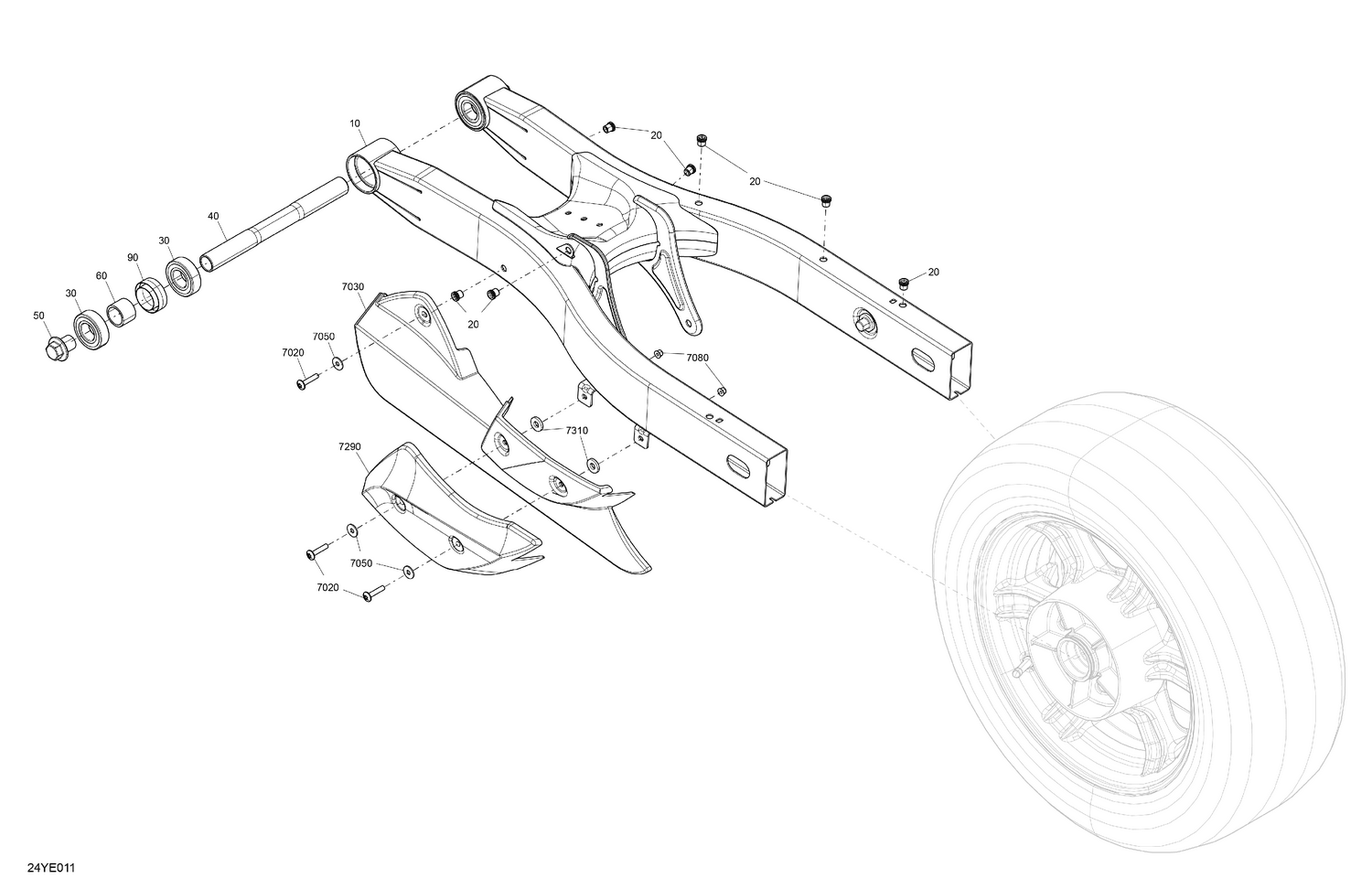

05- Suspension - Rear
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706001574 | Swing Arm |
| 20 | 293450275 | Insert |
| 30 | 293350153 | Ball Bearing |
| 40 | 706001182 | Swing Arm Axle |
| 50 | 706001579 | Bolt M20 |
| 60 | 706001152 | Spacer |
| 90 | 706001366 | Sleeve |
| 7020 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 7030 | 705002092 | Lower Belt Guard |
| 7050 | 234062670 | Stainless Steel Flat Washer |
| 7080 | 233261494 | Hex. Flange Elastic Nut M6 |
| 7290 | 705009446 | Belt Guard Moulding |
