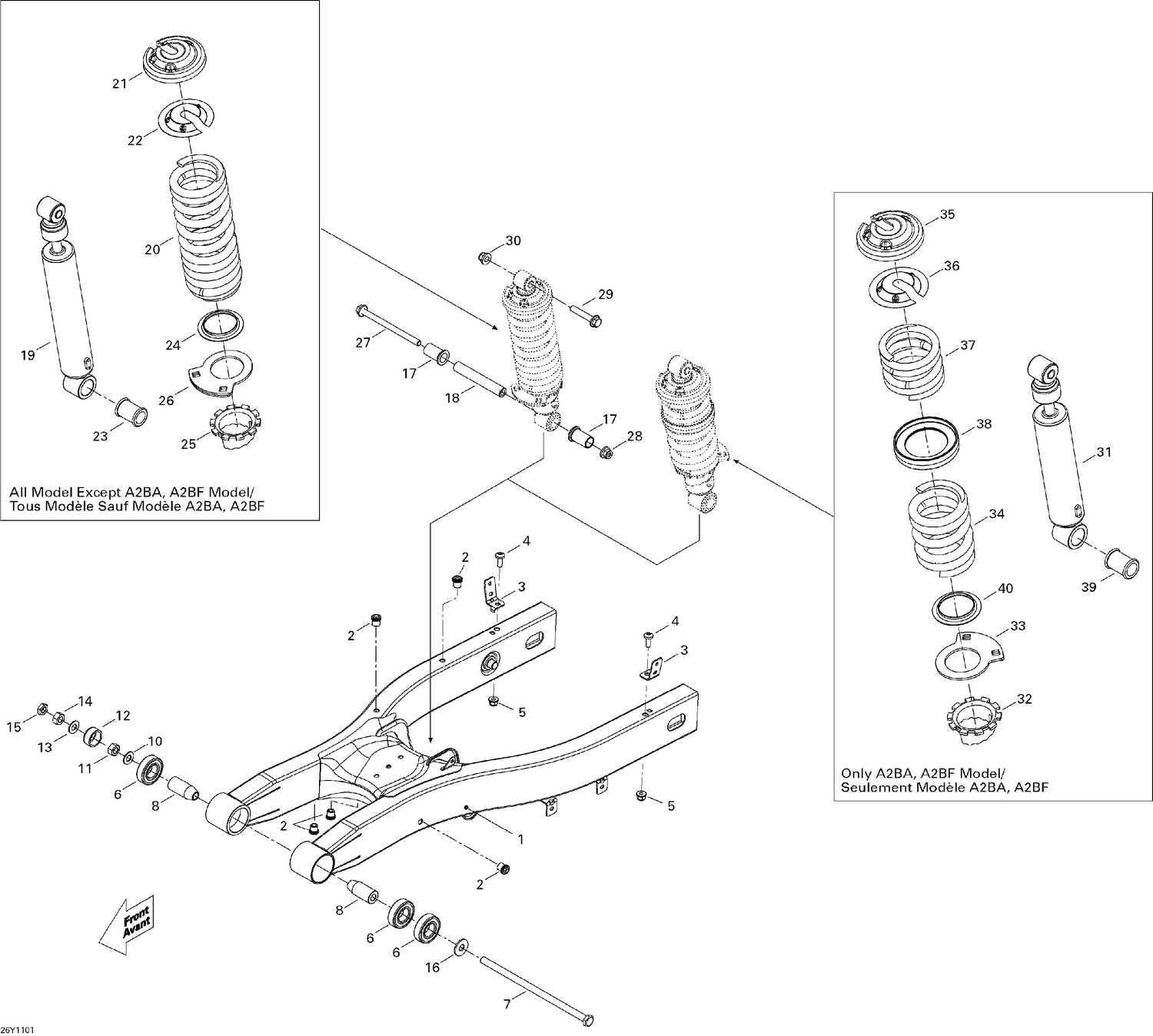

| Ref | Part Number | Description |
|---|
| 2 |
293450275 |
Insert This part replaces 415107300. |
| 6 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 7 |
250000367 |
HEX. SCREW M12 X 265, SCOTCH GRIP - Call your local BRP dealership |
| 8 |
706000474 |
INTERNAL BUSHING - Call your local BRP dealership |
| 10 |
503191435 |
WASHER - Call your local BRP dealership |
| 11 |
232021486 |
HEX. NUT M12 - Call your local BRP dealership |
| 12 |
706000486 |
BUSHING - Call your local BRP dealership |
| 13 |
503191435 |
WASHER - Call your local BRP dealership |
| 14 |
232021486 |
HEX. NUT M12 - Call your local BRP dealership |
| 15 |
232120434 |
HEX. JAM NUT M12 - Call your local BRP dealership |
| 16 |
506136400 |
FLAT WASHER - Call your local BRP dealership |
| 17 |
706000410 |
Spacer |
| 18 |
706000409 |
Shock Absorber Shaft |
| 27 |
230604034 |
Hex. Flange Screw M10 X 140 |
| 28 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 29 |
207605534 |
Hex. Flange Screw |
| 30 |
233201434 |
Hex. Flange Elastic Nut M10 |
