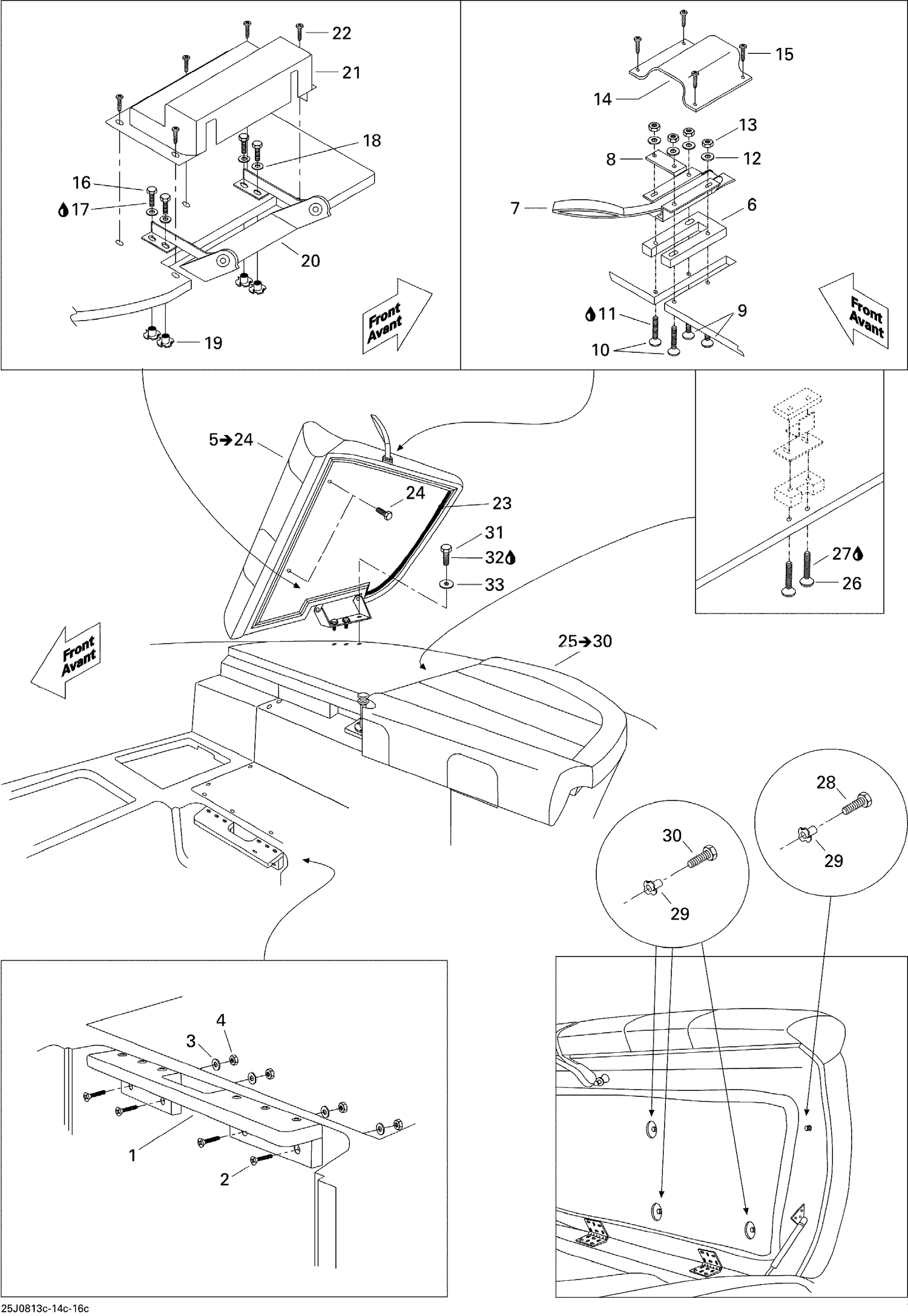

| Ref | Part Number | Description |
|---|
| 1 |
204614380 |
Seat Support Ass'y |
| 2 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 3 |
234062600 |
Flat Washer M6, Stainless |
| 4 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 6 |
204614361 |
Spacer |
| 7 |
204614362 |
LATCH STRAP - Call your local BRP dealership |
| 8 |
204614370 |
RETAINING LATCH - Call your local BRP dealership |
| 9 |
208443570 |
Flange Head Tapping Ph. Screw M4 X 35 |
| 10 |
208444060 |
Screw M4 x 40 |
| 12 |
234041600 |
Flat Washer 4 mm, Stainless |
| 13 |
232541600 |
Elastic Stop Nut M4 |
| 14 |
204614378 |
Latch Cover |
| 15 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 16 |
204100134 |
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership |
| 18 |
204100069 |
FLAT WASHER - Call your local BRP dealership |
| 19 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 20 |
204614364 |
Hinge Ass'y |
| 21 |
204614438 |
Hinge Cover |
| 22 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 23 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 24 |
204100037 |
SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership |
| 26 |
208444060 |
Screw M4 x 40 |
| 28 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 29 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 30 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 31 |
204100037 |
SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership |
| 32 |
293800060 |
Loctite 243, 10 ml |
