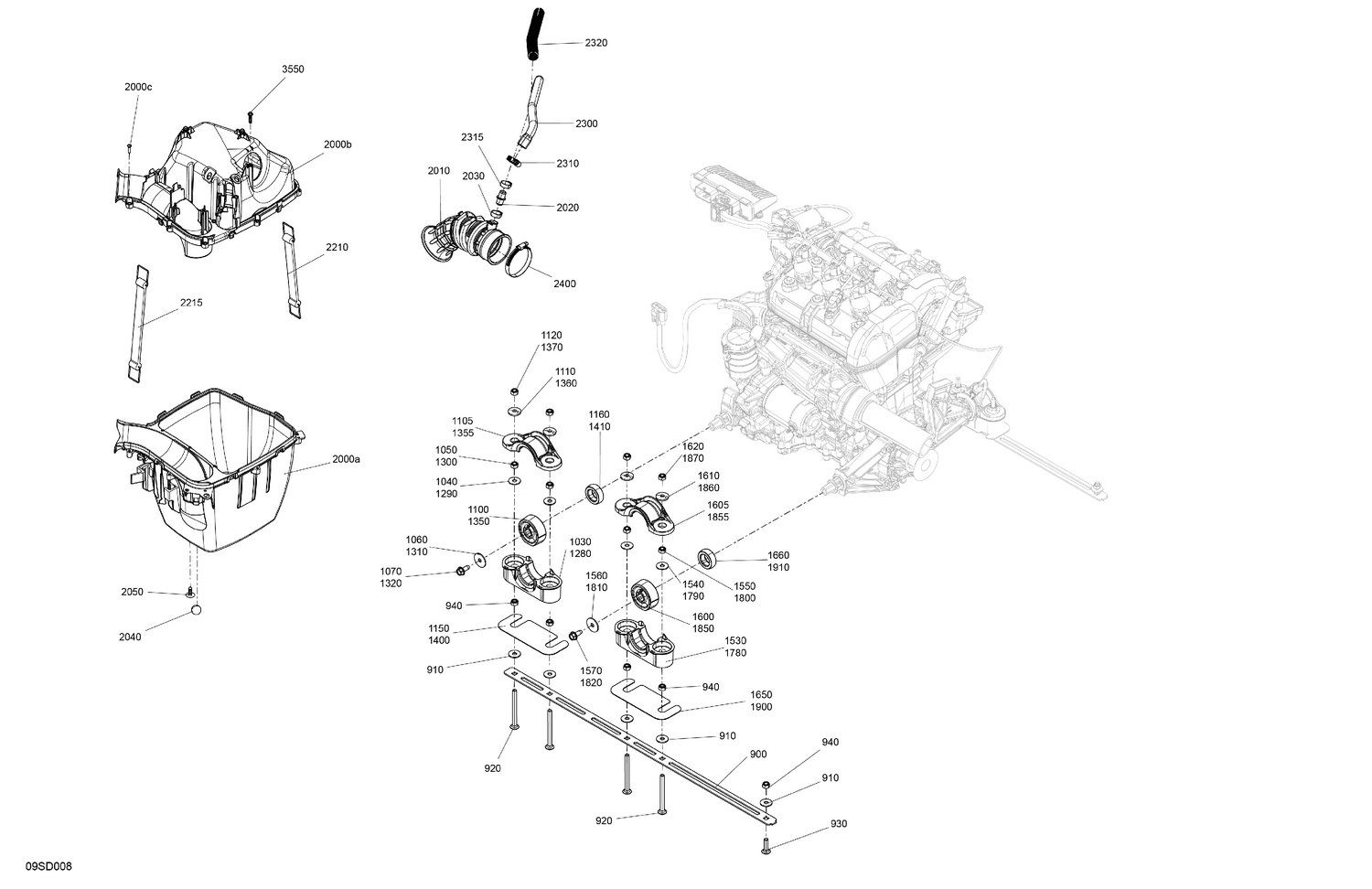

02- Engine - System
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 900 | 270000862 | Retaining Plate |
| 910 | 234082600 | Flat Washer 8 mm, Stainless |
| 920 | 207789060 | Carriage Bolt M8 X 90 |
| 930 | 207783060 | Carriage Bolt M8 X 30 |
| 940 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1030 | 270000978 | Mount Base |
| 1040 | 234082600 | Flat Washer 8 mm, Stainless |
| 1050 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1060 | 250200130 | Flat Washer 8 mm |
| 1070 | 250000645 | Forming Hex Screw M8 X 20 |
| 1100 | 270001097 | Rubber Mount |
| 1105 | 270000859 | Mount Clamp |
| 1110 | 250200137 | Conical Washer |
| 1120 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1150 | 270000865 | Shim 1.3 mm |
| 1160 | 270000863 | Rubber Stopper |
| 1280 | 270000978 | Mount Base |
| 1290 | 234082600 | Flat Washer 8 mm, Stainless |
| 1300 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1310 | 250200130 | Flat Washer 8 mm |
| 1320 | 250000645 | Forming Hex Screw M8 X 20 |
| 1350 | 270001097 | Rubber Mount |
| 1355 | 270000859 | Mount Clamp |
| 1360 | 250200137 | Conical Washer |
| 1370 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1400 | 270000865 | Shim 1.3 mm |
| 1410 | 270000863 | Rubber Stopper |
| 1530 | 270000978 | Mount Base |
| 1540 | 234082600 | Flat Washer 8 mm, Stainless |
| 1550 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1560 | 250200130 | Flat Washer 8 mm |
| 1570 | 250000645 | Forming Hex Screw M8 X 20 |
| 1600 | 270001097 | Rubber Mount |
| 1605 | 270000859 | Mount Clamp |
| 1610 | 250200137 | Conical Washer |
| 1620 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1650 | 270000865 | Shim 1.3 mm |
| 1660 | 270000863 | Rubber Stopper |
| 1780 | 270000978 | Mount Base |
| 1790 | 234082600 | Flat Washer 8 mm, Stainless |
| 1800 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1810 | 250200130 | Flat Washer 8 mm |
| 1820 | 250000645 | Forming Hex Screw M8 X 20 |
| 1850 | 270001097 | Rubber Mount |
| 1855 | 270000859 | Mount Clamp |
| 1860 | 250200137 | Conical Washer |
| 1870 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1900 | 270000865 | Shim 1.3 mm |
| 1910 | 270000863 | Rubber Stopper |
| 2000a | 273000385 | Airbox Base |
| 2000b | 273000386 | Airbox Cover |
| 2000c | 250000287 | Flange Torx Screw K40 X 16 |
| 2010 | 273000318 | Connector Hose |
| 2020 | 270001167 | Straight Pipe Fitting |
| 2030 | 293650011 | Oetiker Clamp |
| 2040 | 293830080 | Floating Ball |
| 2050 | 293730011 | Black, Dart |
| 2210 | 275501161 | Retaining Strap |
| 2215 | 293850112 | Holding Strap |
| 2300 | 270000947 | Formed Hose |
| 2310 | 293650285 | Clamp Gear |
| 2315 | 293650011 | Oetiker Clamp |
| 2320 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 2400 | 293650179 | Tridon Clamp |
