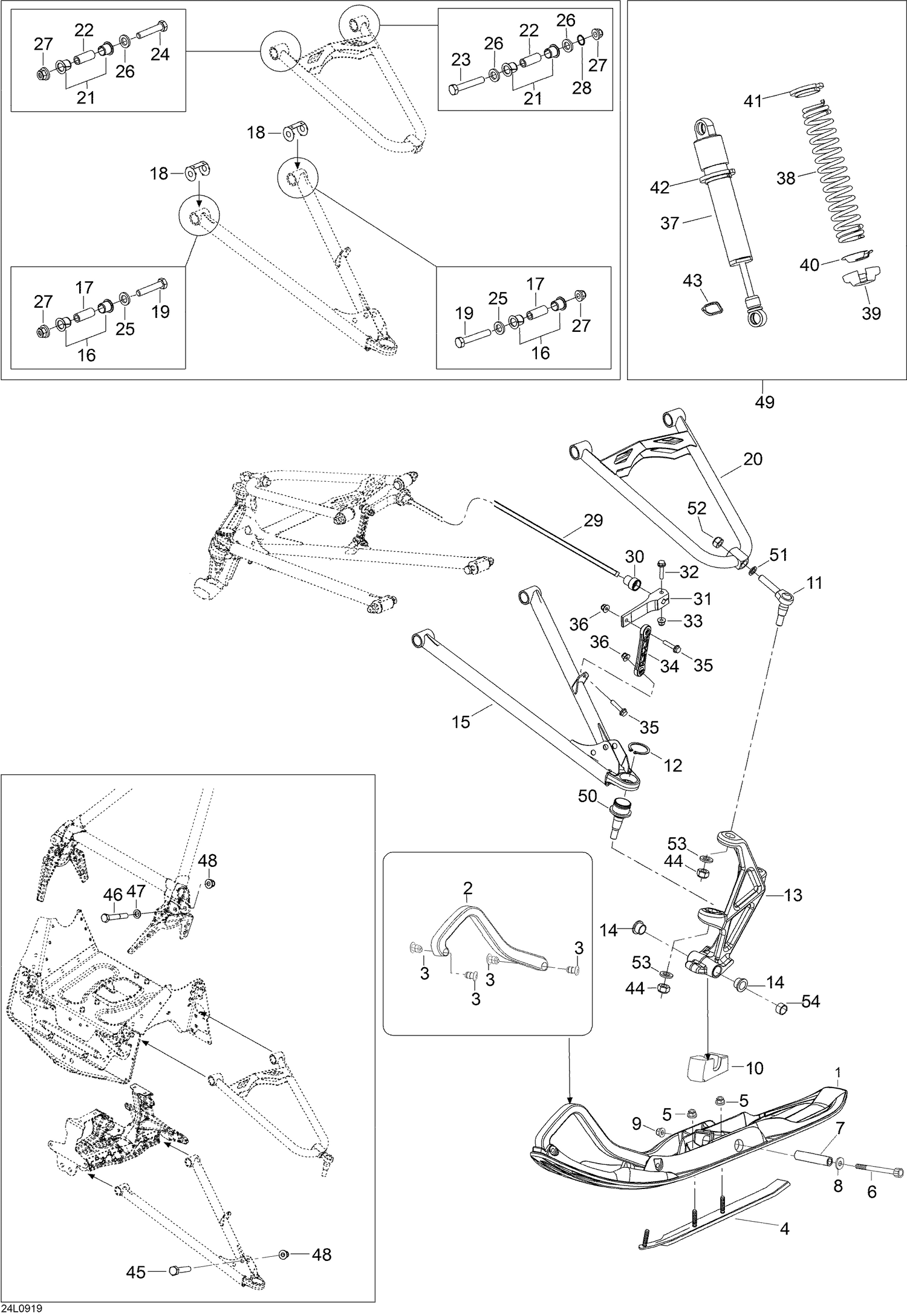

07- Front Suspension And Ski
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505072673 | PLASTIC SKI - Call your local BRP dealership |
| 2 | 505071812 | Retainer 17mm long |
| 3 | 505070963 | Black, Handle |
| 4 | 860202822 | Carbide Round Runner Kit This part replaces 605352643. |
| 5 | 33074 | NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074. |
| 6 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 7 | 506133300 | Spacer This part replaces 505072101. |
| 8 | 732900049 | Washer |
| 9 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 10 | 505072561 | RUBBER DAMPER - Call your local BRP dealership |
| 11 | 505072257 | Upper Ball Joint |
| 12 | 293370035 | Circlip |
| 13 | 505073011 | Clear LH Ski Leg This part replaces 505071997. |
| 13 | 505073012 | Clear RH Ski Leg This part replaces 505071998. |
| 14 | 505072690 | Leg Bushing |
| 15 | 505072497 | Black, RH Lower Arm |
| 15 | 505072498 | Black, LH Lower Arm |
| 16 | 505072208 | Bushing |
| 17 | 505072209 | Sleeve This part replaces 505072393. |
| 18 | 505072634 | Wear Plate |
| 19 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 20 | 505072375 | Upper Arm |
| 21 | 505072250 | Bushing |
| 22 | 505072143 | Sleeve |
| 23 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 24 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 25 | 503189564 | Washer |
| 26 | 505072392 | Washer |
| 27 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 28 | 505072448 | O-Ring |
| 29 | 505072602 | Stabilisator |
| 30 | 505072064 | Bushing |
| 31 | 505072394 | Stabilisator Lever |
| 32 | 207663046 | Hex. Flange Screw M6 X 30 |
| 33 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 34 | 505072204 | Sway Bar Double Joint Link |
| 35 | 207663046 | Hex. Flange Screw M6 X 30 |
| 36 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 37 | 505072517 | Front Shock |
| 38 | 505072668 | FULL MOON SPRING - Call your local BRP dealership |
| 39 | 230076 | Spring Seat This part replaces M230076. |
| 40 | 505072637 | CAP - Call your local BRP dealership |
| 41 | 503191872 | Spring Guide |
| 42 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 43 | 414115200 | Tie-Rap 180 mm |
| 44 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 45 | 207005544 | Hex. Screw M10 X 55 |
| 46 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 47 | 503189564 | Washer |
| 48 | 233201414 | Hex. Flange Elastic Nut M10 |
| 49 | Not | Available As Spare Part - Shock Ass'y |
| 50 | 706202044 | Ball Joint This part replaces 505072362. |
| 51 | 503189276 | Washer |
| 52 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 53 | 234021410 | Flat Washer 12 mm |
