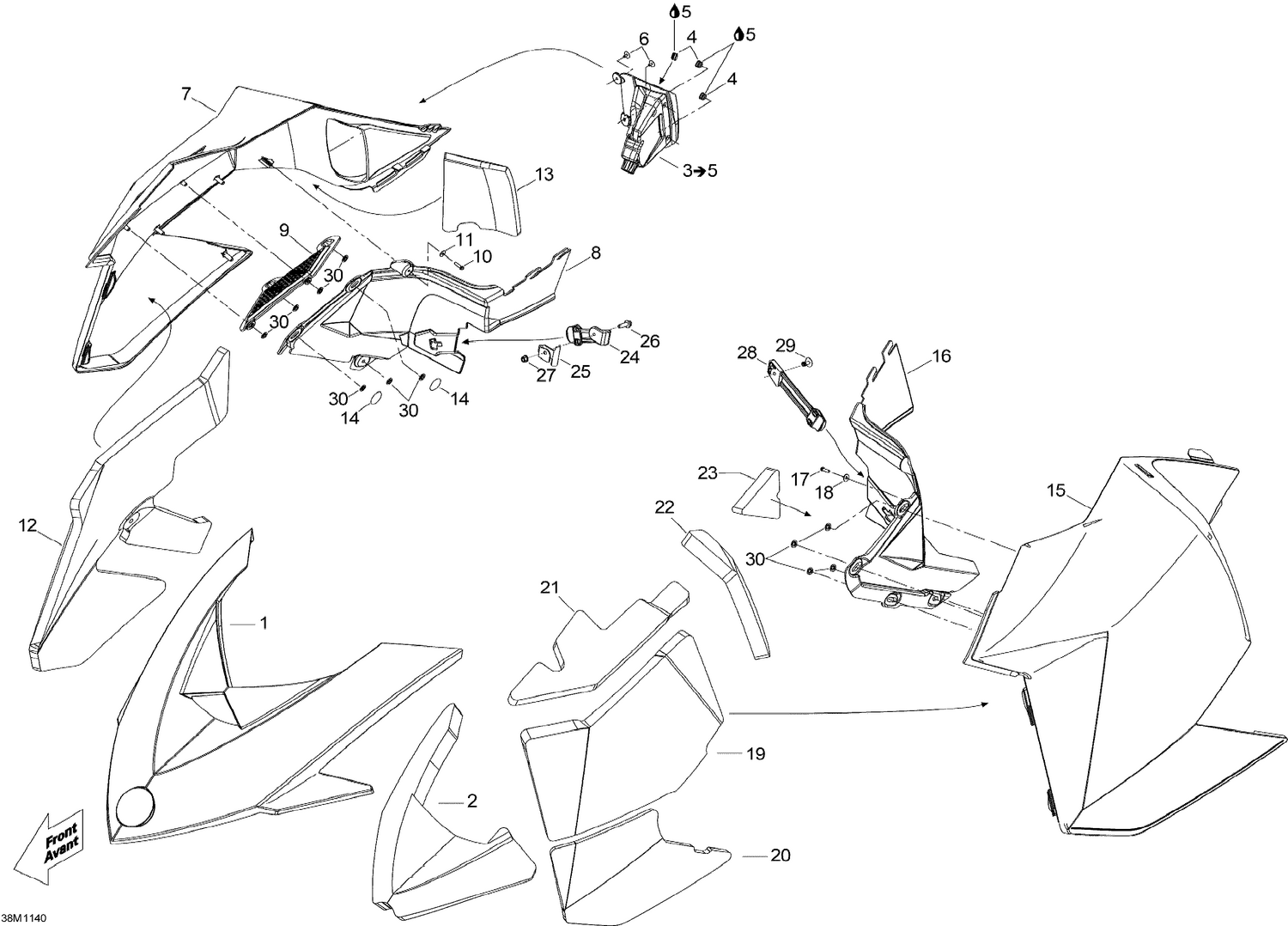

09- Hood
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304529 | Yellow Hood |
| 2 | 517304913 | Hood Foam This part replaces 517304881. |
| 4 | 275500241 | Black, Cap |
| 5 | 413408300 | Loctite, Black Max, 3 ml |
| 6 | 293150170 | Pop Rivet 5/32" |
| 7 | 517304029 | Deep Black, RH Panel |
| 8 | 517303671 | Deep Black RH Moulding Panel |
| 9 | 517303622 | Grille |
| 10 | 241141660 | Hex. Flange Screw K40 X 16 |
| 11 | 234042600 | Flat Washer 4 mm, Stainless |
| 12 | 517304883 | RH Center Foam |
| 13 | 517304884 | RH Panel Rear Foam |
| 14 | 518325560 | Adhesive Patch |
| 15 | 517304030 | Deep Black, LH Panel |
| 16 | 517303673 | Deep Black, LH Moulding Panel |
| 17 | 241141660 | Hex. Flange Screw K40 X 16 |
| 18 | 234042600 | Flat Washer 4 mm, Stainless |
| 19 | 517304887 | LH Panel Center Foam |
| 20 | 517304888 | LH Panel Lower Foam |
| 21 | 517304889 | LH Panel Upper Foam |
| 22 | 517304890 | LH Panel Rear Foam |
| 23 | 517304891 | Foam |
| 24 | 517303612 | RH Panel Latch |
| 25 | 517304221 | Latch Support |
| 26 | 207652044 | Hex.Flange Screw M5 X 20 |
| 27 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 28 | 517303808 | LH Panel Latch |
| 29 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
