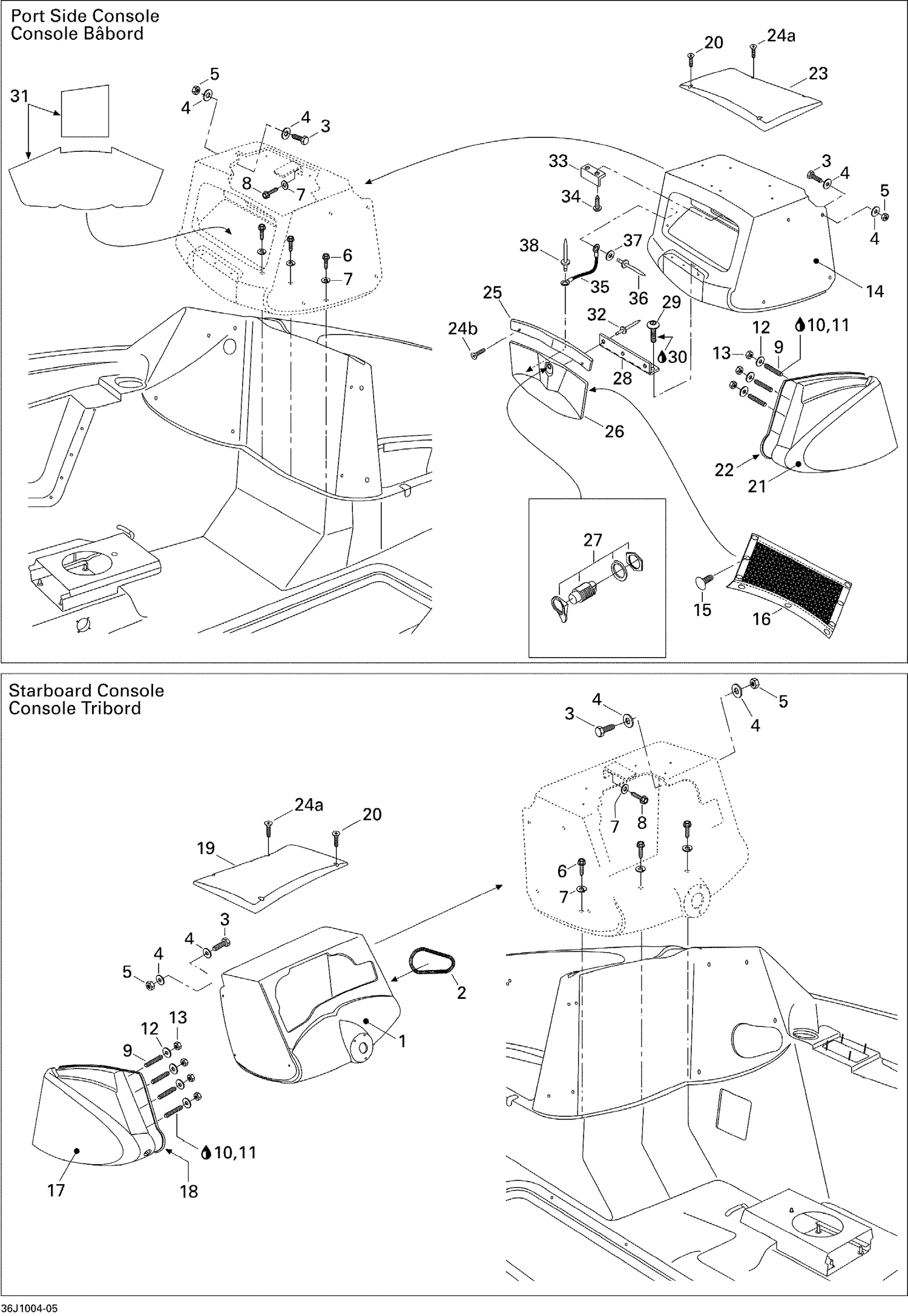

| Ref | Part Number | Description |
|---|
| 1 |
204073430 |
CONSOLE ASS'Y, STARBOARD - Call your local BRP dealership |
| 2 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 3 |
207163560 |
Hex. Screw M6 X 35 |
| 4 |
234062600 |
Flat Washer M6, Stainless |
| 5 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 6 |
204100176 |
SCREW-SELF DRILLING HEX.HD. #14X1-1/2 - Call your local BRP dealership |
| 7 |
211200025 |
Lock Washer 1/4” |
| 8 |
204100176 |
SCREW-SELF DRILLING HEX.HD. #14X1-1/2 - Call your local BRP dealership |
| 9 |
204100159 |
SOCKET SET SCREW, M6 X 35 - Call your local BRP dealership |
| 10 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 11 |
293800005 |
Loctite 271, 10 ml |
| 12 |
234062600 |
Flat Washer M6, Stainless |
| 13 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 14 |
204073534 |
Console Ass'y, Port Side |
| 15 |
204130271 |
DART, BLACK - Call your local BRP dealership |
| 16 |
204073521 |
GLOVEBOX STORAGE NET - Call your local BRP dealership |
| 17 |
204073432 |
Console Cap, Starboard |
| 18 |
204071878 |
TRIM, WHITE - Call your local BRP dealership |
| 19 |
204073374 |
Top Console Cap, Starboard |
| 20 |
209944560 |
PHILLIPS SCREW M4.2 X 45 - Call your local BRP dealership |
| 21 |
204073431 |
CONSOLE CAP, PORT SIDE - Call your local BRP dealership |
| 22 |
204071878 |
TRIM, WHITE - Call your local BRP dealership |
| 23 |
204073376 |
TOP CONSOLE CAP, PORT SIDE - Call your local BRP dealership |
| 24a |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 24b |
204100234 |
PHILLIPS TAPPING SCREW M4.2 X 38 - Call your local BRP dealership |
| 25 |
204073293 |
Glove Box Moulding |
| 26 |
204073433 |
GLOVE BOX DOOR - Call your local BRP dealership |
| 27 |
204072284 |
Latch |
| 28 |
204072286 |
Hinge, Black |
| 29 |
205441660 |
Socket Head Screw M4 X 16 |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
204072704 |
MAT - Call your local BRP dealership |
| 32 |
204130050 |
POP RIVET 3/16 - Call your local BRP dealership |
| 33 |
204072476 |
KEEPER - Call your local BRP dealership |
| 34 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 35 |
204073463 |
RETAINER CABLE - Call your local BRP dealership |
| 36 |
293150088 |
Pop Rivet 3/16" |
| 37 |
234052600 |
Flat Washer 5 mm, Stainless |
