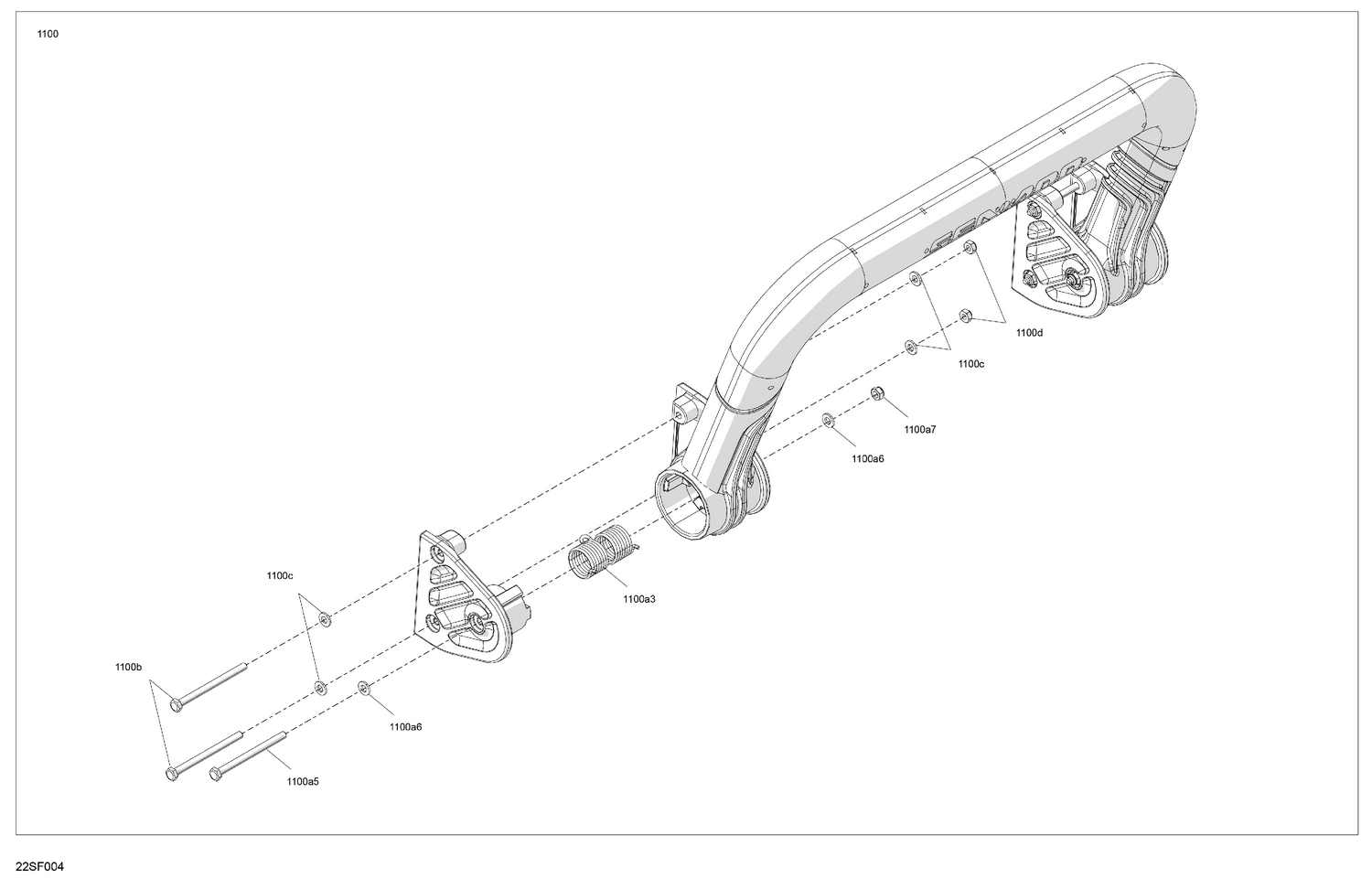

07- Body - Ladder

07- Body - Ladder

Parts (6)

RefPart NumberDescription
1100a3 292002107 Spring
1100a5 207068060 Hex. Screw M6 x 80
1100a6 234061600 Stainless Flat Washer M6
1100a7 232561200 Brass Elastic Stop Nut M6
1100b 207068060 Hex. Screw M6 x 80
1100c 234061600 Stainless Flat Washer M6
