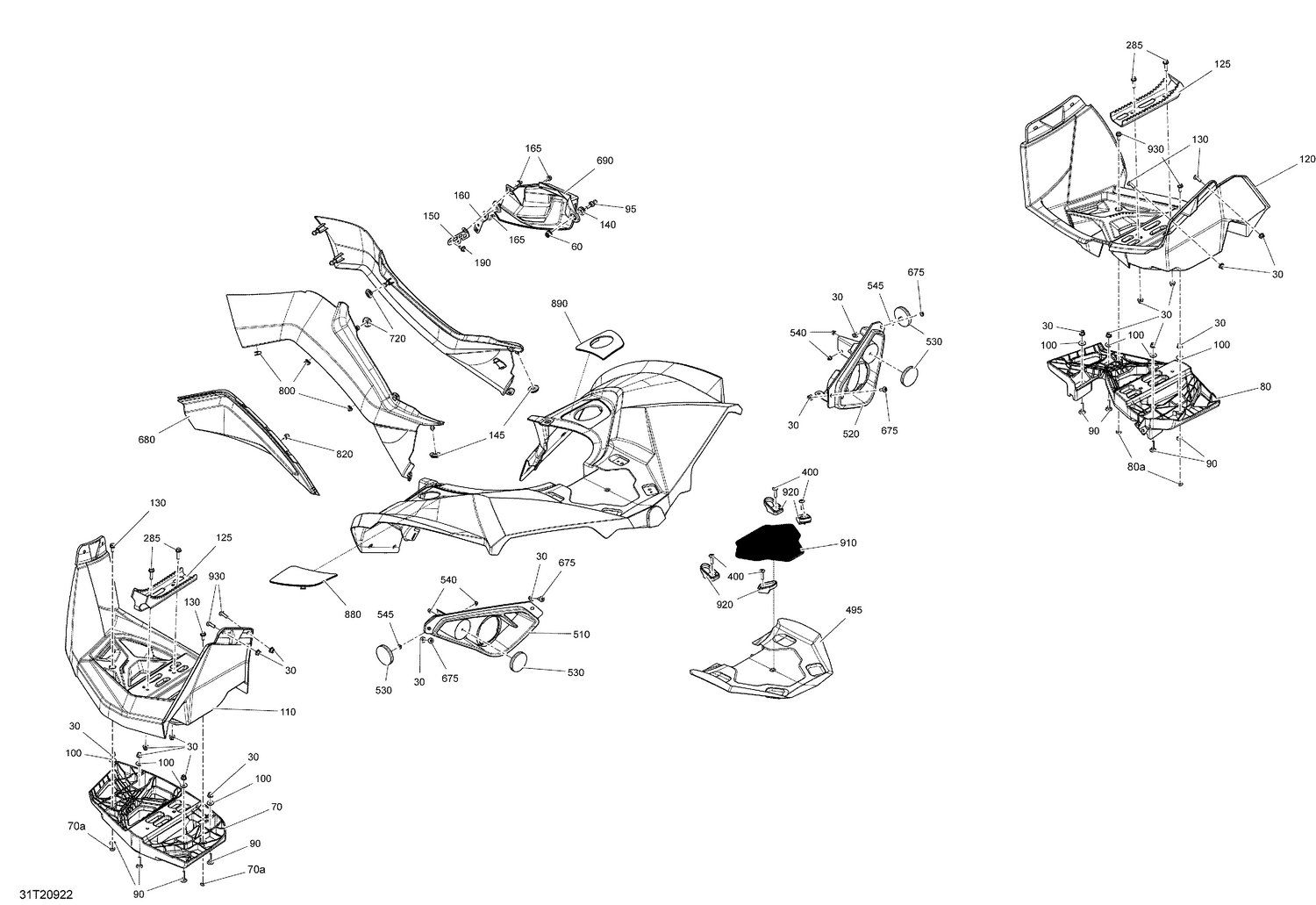

09- Body - Rear Section - Black
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 70a | 232862412 | Square Nut M6 |
| 80a | 232862412 | Square Nut M6 |
| 90 | 207763044 | Carriage Bolt M6 X 30 |
| 95 | 250300039 | Ball Head Stud |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705004730 | LH Footboard/Fender |
| 120 | 705004729 | RH Footboard/Fender |
| 125 | 705002326 | Footrest |
| 130 | 207661654 | Hex. Flange Screw M6 X 16 |
| 140 | 709000582 | Grommet This part replaces 293720053. |
| 145 | 705000321 | Oval Washer |
| 150 | 705011461 | Engine Cover Support |
| 160 | 705003646 | Engine Cover Support |
| 165 | 210261250 | Hex. Flange Screw M6 X 12 |
| 190 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 285 | 207662554 | Hex. Flange Screw M6 X 25 |
| 400 | 250000758 | Torx Screw M6 X 25 |
| 495 | 705005840 | Reflective Sheet |
| 510 | 705004731 | LH Rear Facia |
| 520 | 705004732 | RH Rear Facia |
| 530 | 705011221 | Red Reflector |
| 540 | 233251434 | Flange Elastic Nut M5 |
| 545 | 517225900 | Flat Washer |
| 675 | 250000755 | Torx Screw M6 X 16 |
| 680 | 705004988 | Panel Extension |
| 690 | 705004966 | Engine Cover |
| 720 | 705003264 | Grommet |
| 800 | 414479100 | Clip |
| 820 | 293830005 | Rubber Bumper |
| 880 | 705017923 | LH Rear Body Panel Cap This part replaces 705001910. |
| 890 | 705017924 | RH Rear Body Panel Cap This part replaces 705002420. |
| 910 | 705002343 | Rear Carpet |
| 920 | 705017925 | Hook This part replaces 705002342. |
