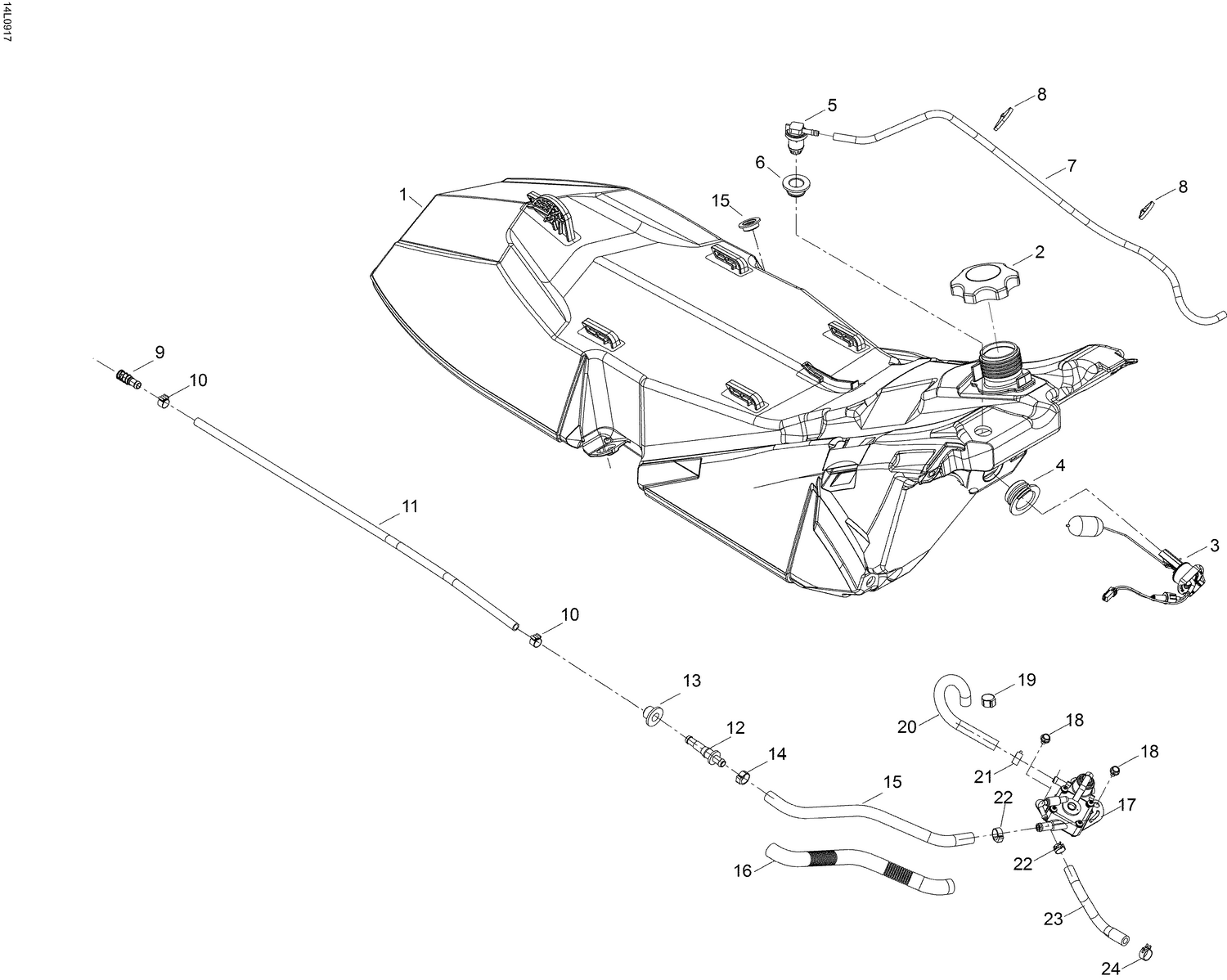

02- Fuel System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033438 | Fuel Tank |
| 2 | 513033025 | Cap |
| 3 | 513033958 | Sensor Level Fuel This part replaces 513033168. |
| 4 | 513033193 | GROMMET - Call your local BRP dealership |
| 5 | 513033842 | Check Valve This part replaces 513033188. |
| 6 | 513033596 | Grommet This part replaces 513033189. |
| 7 | 513033331 | Polyurethane Hose |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 414872100 | Filter |
| 10 | 513033010 | Clamp |
| 11 | 219704391 | POLYURETHANE HOSE 1000MM LONG This part replaces 513033332. |
| 12 | 414872700 | Connector |
| 13 | 513033435 | Grommet |
| 14 | 293650053 | Crimp Clamp |
| 15 | 513033165 | Hose |
| 16 | 513033234 | Protector tube |
| 17 | 513033184 | Fuel Pump |
| 18 | 210261040 | Screw |
| 19 | 414415200 | Clamp |
| 20 | 513033327 | Hose- Formed |
| 21 | 513033029 | Clamp |
| 22 | 293650125 | Oetiker Clamp |
| 23 | 513033327 | Hose |
