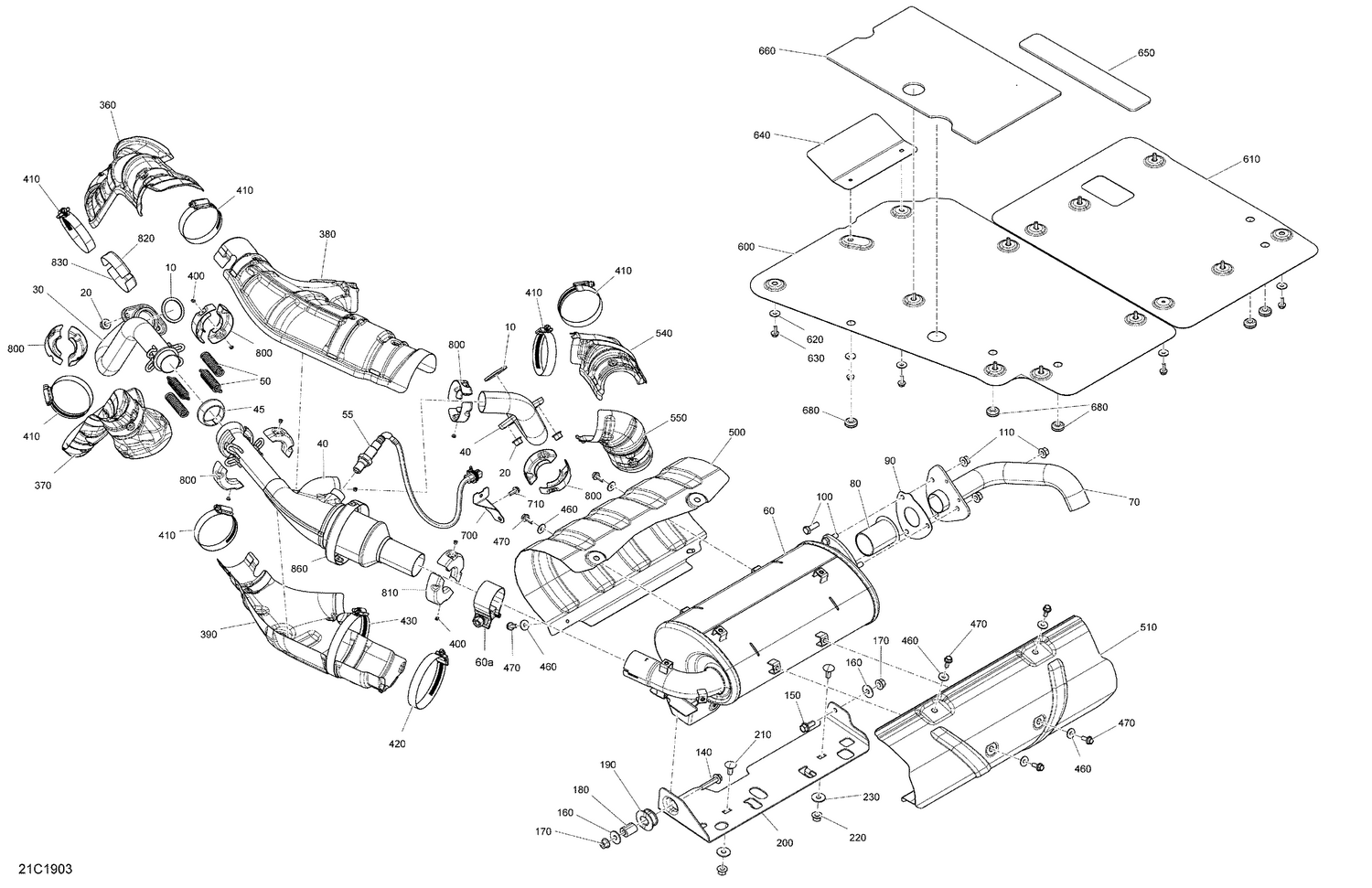

01- Exhaust - HD10
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 55 | 707600872 | Oxygen Sensor |
| 60a | 293650228 | Exhaust Pipe Clamp |
| 90 | 707602205 | Gasket |
| 100 | 207182546 | Hex. Screw Cap DIN.933 |
| 110 | 233081416 | Hex. Flange Nut M8 |
| 140 | 207684044 | Hex. Flange Screw M8 X 40 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 160 | 234082410 | Flat Washer 8 mm |
| 170 | 233081416 | Hex. Flange Nut M8 |
| 180 | 707601969 | Spacer |
| 190 | 707602102 | Rubber Mount |
| 200 | 707601588 | Muffler Support |
| 210 | 207782044 | Carriage Bolt, M8 X 20 |
| 220 | 233081416 | Hex. Flange Nut M8 |
| 230 | 234082410 | Flat Washer 8 mm |
| 360 | 707601923 | Heat Shield, Front |
| 370 | 707602403 | Front Heat Shield |
| 600 | 707602083 | Heat Shield |
| 610 | 707601759 | Heat Shield |
| 620 | 234062410 | Flat Washer 6 mm |
| 630 | 210261640 | Hex. Flange Screw M6 X 16 |
| 640 | 707601970 | Heat Shield |
| 650 | 707601921 | Reflective Sheet |
| 660 | 707602032 | Reflective Sheet |
| 680 | 709000582 | Grommet |
| 800 | 707602026 | Exhaust Pipe Spacer |
| 820 | 707601948 | Exhaust Pipe Spacer |
| 830 | 707602016 | Exhaust Pipe Spacer |
