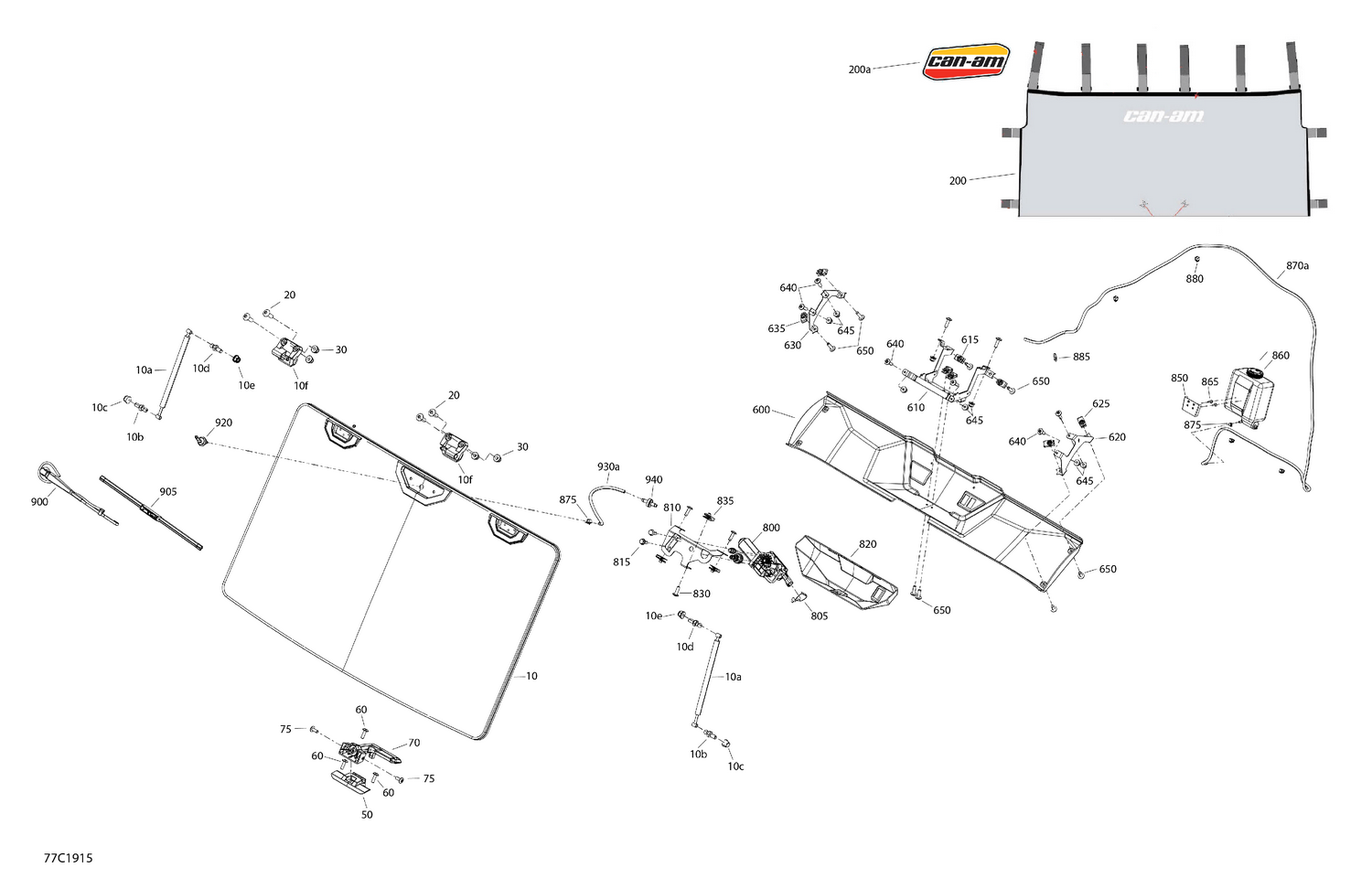

09- Enclosure Cab - HD8 - Pro International
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 705800030 | Shock |
| 10b | 250300039 | Ball Head Stud |
| 10c | 233281414 | Hex. Flange Elastic Nut M8 |
| 10d | 250300039 | Ball Head Stud |
| 10e | 233281414 | Hex. Flange Elastic Nut M8 |
| 10f | 705800082 | Windshield Hinges |
| 20 | 250000874 | Torx Truss M8 X 25 |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 50 | 705800008 | Handle Anchor |
| 60 | 250001007 | Screw Torx M6.81 X 30 |
| 70 | 705800085 | Mobile Handle Ass'y |
| 75 | 250000881 | Torx Truss M8 X 16 |
| 200a | 704904566 | Decal "Can-Am" |
| 600 | 715006524 | Radio Support Kit This part replaces 715005562. |
| 610 | 705800060 | Support |
| 615 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 620 | 705800108 | LH Support |
| 625 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 630 | 705800109 | RH Support |
| 635 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 640 | 250000722 | Torx Screw M6 X 20 |
| 645 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 650 | 207662044 | Hex. Flange Screw M6 X 20 |
| 800 | 705010657 | Wiper Motor |
| 805 | 293750008 | Tie Wrap 368 mm |
| 810 | 705800073 | Cover Support Ass'y |
| 815 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 820 | 705800805 | Wiper Motor Trim This part replaces 705800072. |
| 830 | 250000722 | Torx Screw M6 X 20 |
| 835 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 850 | 705800086 | Windshield Washer Tank Support |
| 860 | 705800039 | Windshield Washer Tank |
| 865 | 250000720 | Torx Screw K50 X 16 |
| 870a | 219704389 | Polyurethane Hose 4000MM Long |
| 875 | 414554800 | Spring Clamp |
| 880 | 414227300 | Clip |
| 885 | 293750008 | Tie Wrap 368 mm |
| 900 | 705010656 | Wiper Arm |
| 905 | 705011443 | Winshield Wiper |
| 920 | 705800103 | Connecteur Coudé 90° |
| 930a | 219704389 | Polyurethane Hose 4000MM Long |
| 940 | 275500398 | Check Valve |
