Parts Catalog

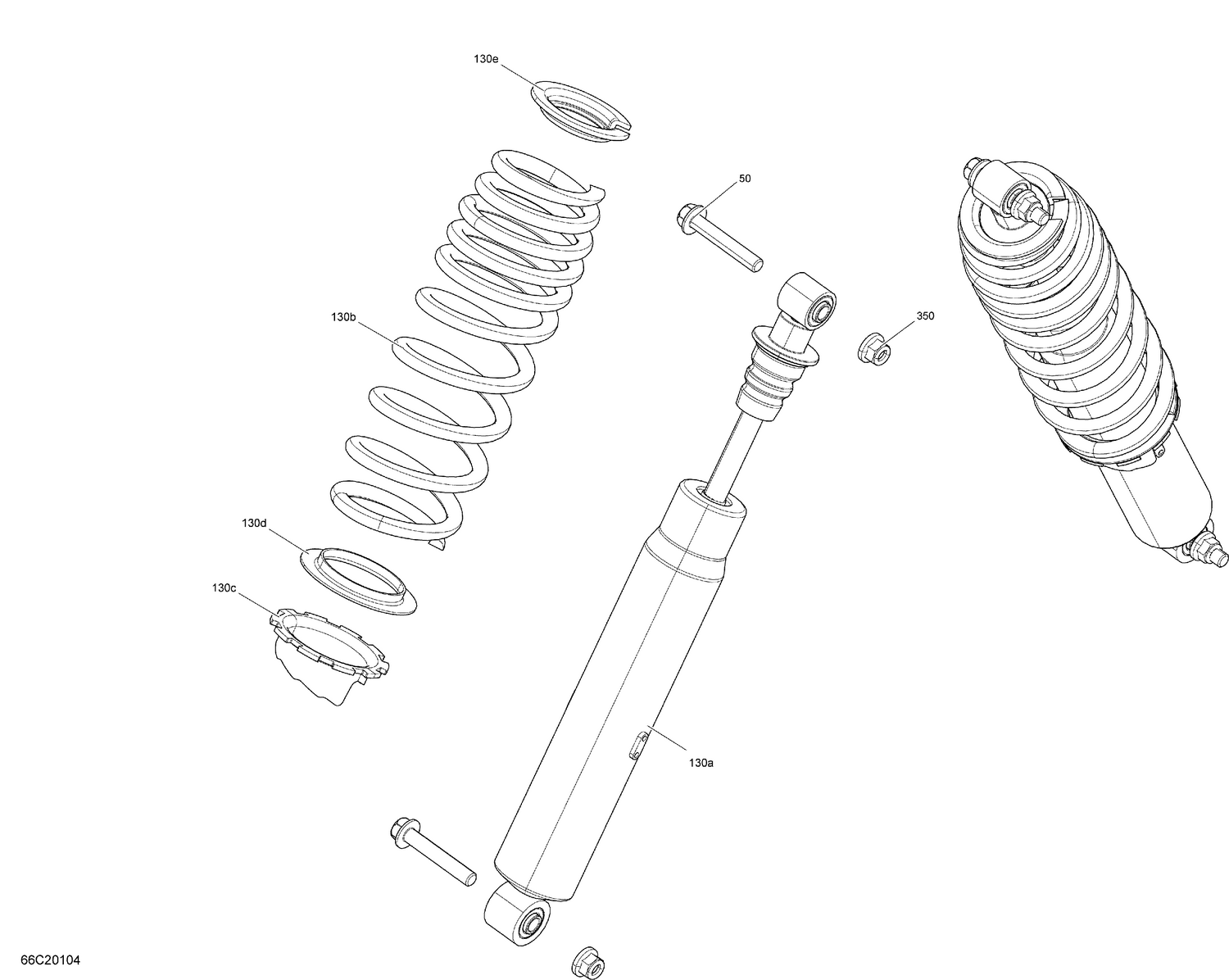

07- Front Shocks - XT - Boreal Green

Parts (6)

Ref	Part Number	Description
50	207607046	Hex. Flange Screw M10 X 70
130a	706201758	Front Shock
130b	706202774	Black, Front Spring
130c	706000910	Adjustment Ring
130d	706000911	Protector Ring
130e	706000567	Spring Stopper
