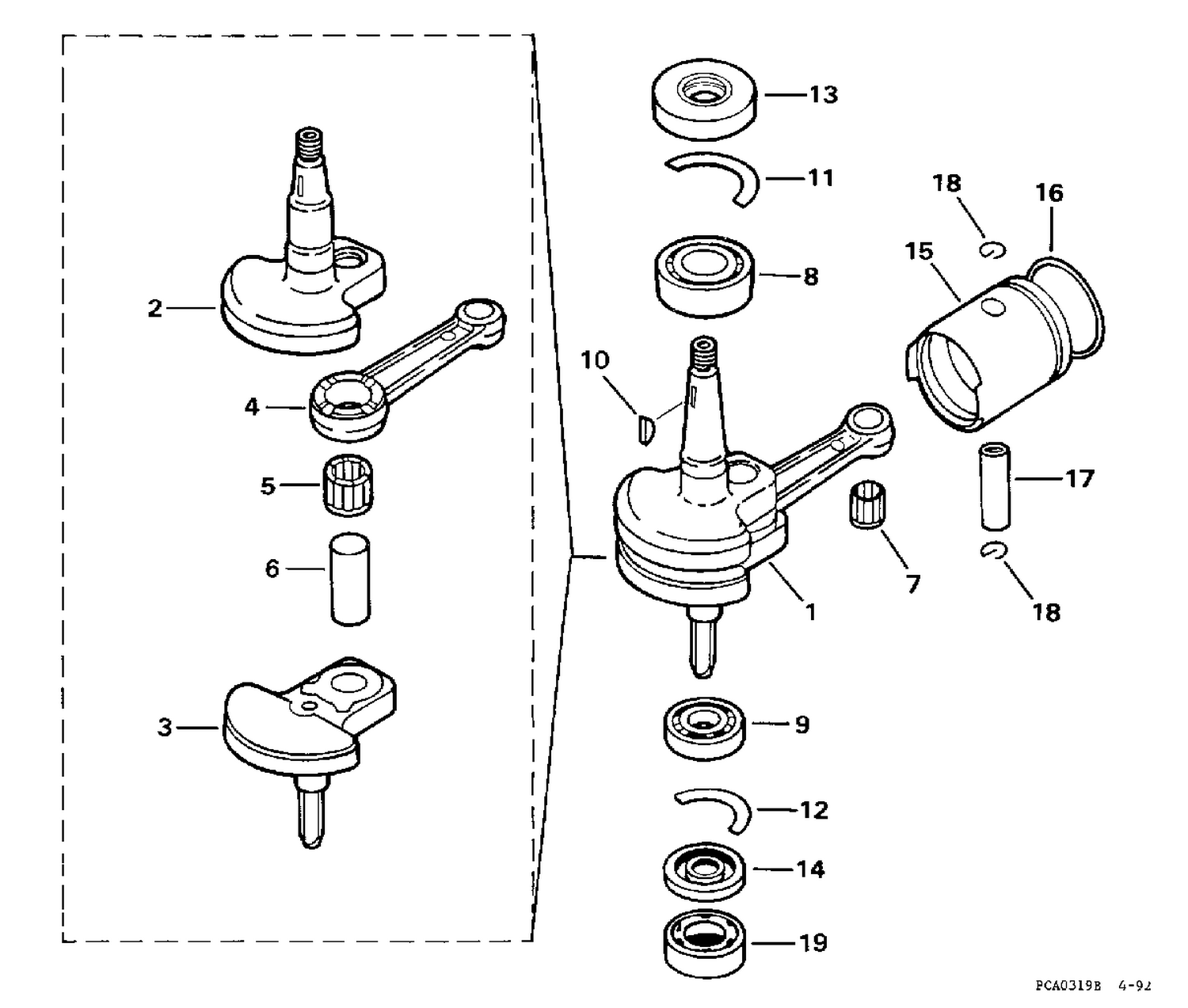

PISTON & CRANKSHAFT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0114819 | CRANKSHAFT & CONNECTING ROD ASSY. |
| 7 | 0115514 | BEARING, Wrist pin |
| 8 | 0115517 | BEARING, Crankshaft, upper |
| 9 | 0115518 | BEARING, Crankshaft, lower |
| 10 | 0115519 | KEY, Flywheel |
| 11 | 0115507 | RETAINER, Upper bearing |
| 12 | 0115508 | RETAINER, Lower bearing |
| 13 | 0115500 | CRANKSHAFT SEAL, Upper |
| 14 | 0115604 | CRANKSHAFT SEAL, Lower |
| 15 | 0114822 | PISTON & DOWEL ASSY. |
| 16 | 0115506 | RING, Piston |
| 17 | 0115513 | WRIST PIN |
| 18 | 0115515 | CLIP, Wrist pin |
