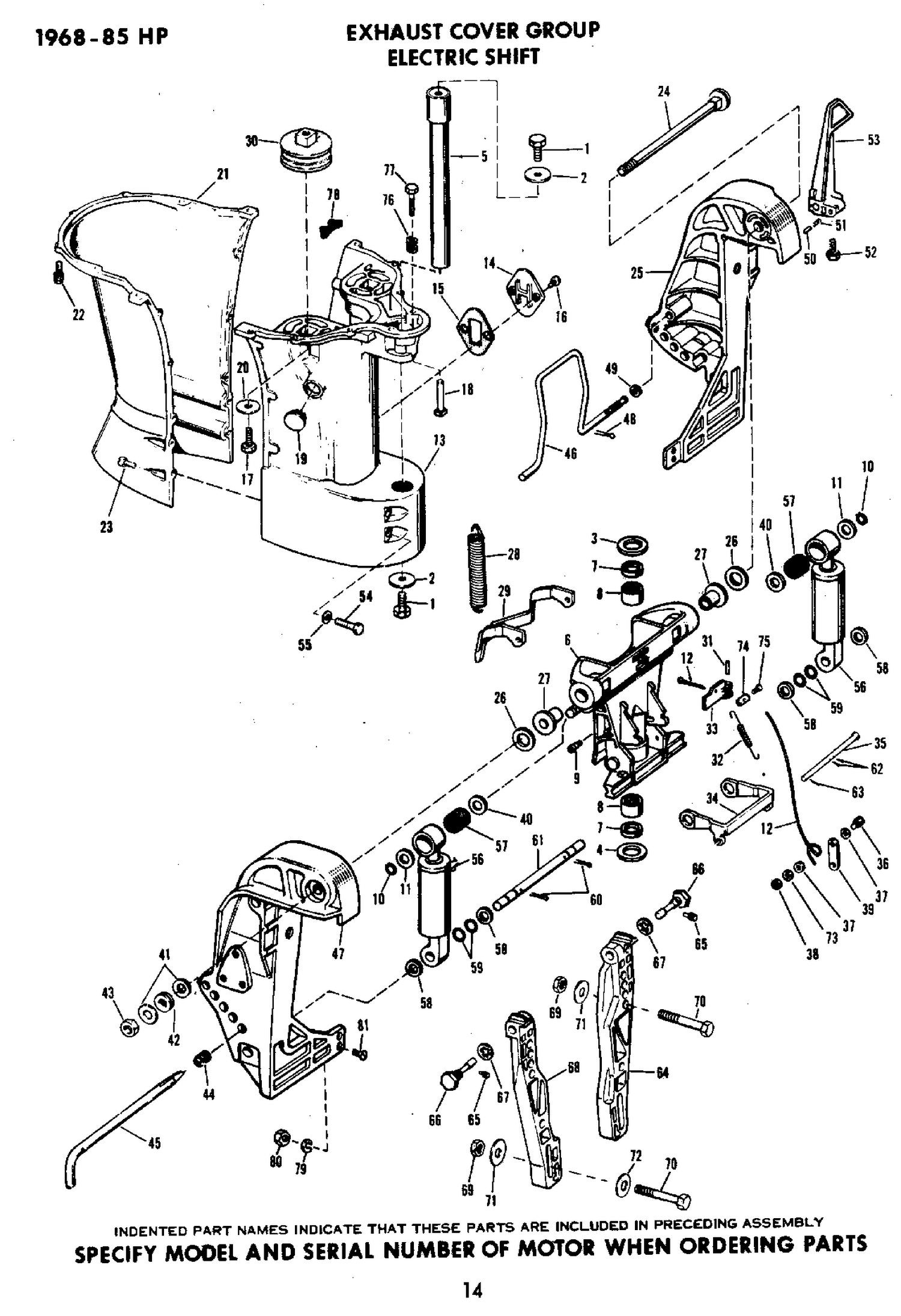

| Ref | Part Number | Description |
|---|
| 2 |
0343600 |
WASHER, Screw, pulley This part replaces 0305273. |
| 3 |
0305637 |
THRUST WASHER,Top |
| 4 |
0305638 |
THRUST WASHER,Bottom |
| 5 |
0377227 |
PIVOT SHAFT & BUSHING |
| 6 |
0381427 |
SWIVEL BRACKET ASSY |
| 8 |
0377135 |
BEARING, Gearcase |
| 10 |
0307763 |
RETAINER, Shock abs. |
| 11 |
0307764 |
WASHER, Inner |
| 12 |
0381440 |
CABLE, Release, lock |
| 13 |
0382069 |
COVER, Exh.hsg., front |
| 14 |
0305405 |
PLATE, Cover, exh.hsg. |
| 15 |
0305396 |
GASKET, Cover plate |
| 16 |
0303397 |
SCREW, Cover plate |
| 17 |
0312455 |
BOLT,Throttle lever retainer |
| 18 |
0310742 |
PIN, Steering friction |
| 19 |
0305275 |
PLUG BUTTON, Eexhaust cover |
| 20 |
0343600 |
WASHER, Screw, pulley This part replaces 0305273. |
| 21 |
0382060 |
COVER, Exhaust housing, rear |
| 22 |
0313076 |
SCREW |
| 24 |
0307226 |
BOLT, Tilting |
| 25 |
0313669 |
SCREW, Lower mount |
| 26 |
0305684 |
WASHER, Bushing |
| 27 |
0305686 |
BUSHING, Tilting shaft |
| 28 |
0305642 |
SPIRNG, Reverse lock 5 INCH LONGER PARTS |
| 29 |
0313671 |
LEVER, Reverse locking |
| 30 |
0381302 |
MOUNT, Rubber, upper side |
| 31 |
0308695 |
PIN, Manual lever |
| 32 |
0307408 |
SPRING |
| 33 |
0312463 |
LEVER, Manual, rev.lock |
| 34 |
0305635 |
LINK, Reverse lock |
| 35 |
0305157 |
ROD, Reverse lock |
| 36 |
0305401 |
SCREW, Cable to conn. |
| 37 |
0300721 |
WASHER, Cable connector |
| 39 |
0307511 |
CONNECTOR, Cable to rod |
| 40 |
0307224 |
WASHER, Inner, shock abs. |
| 41 |
0127386 |
RONDELLE This part replaces 0303913. |
| 42 |
0305155 |
SPRING, Tilting shaft |
| 43 |
0305590 |
NUT, Tilting bolt |
| 44 |
0307068 |
SPRING & Thrust rod |
| 45 |
0383568 |
THRUST ROD & RETAINER This part replaces 0377930. |
| 46 |
0307245 |
LOCK, Trailer |
| 47 |
0313670 |
STERN BRACKET, Stbd. |
| 49 |
0307536 |
WASHER, Lock to bracket |
| 50 |
0307275 |
DETENT PIN, Trailer lock |
| 51 |
0300327 |
SPRING, Detent |
| 52 |
0309705 |
SCREW This part replaces 0307155. |
| 53 |
0307276 |
HANDLE, Trailer lock |
| 54 |
0306503 |
SCREW, Short |
| 56 |
0379148 |
SHOCK ABSORBER ASSY |
| 57 |
0377954 |
MOUNT, Shock absorber |
| 58 |
0307225 |
WASHER, Pin, shock abs. |
| 60 |
0302804 |
COTTER IN |
| 61 |
0307229 |
PIN, Pivot, brackets |
| 63 |
0306285 |
PIN, Cotter, reverse lock rod |
| 64 |
0387482 |
CLAMP ASSEMBLY, Port This part replaces 0278848. |
| 68 |
0387483 |
CLAMP ASSY, Starboard (incl items 7,8, and 9 This part replaces 0278849. |
| 69 |
0363254 |
NUT, Stern bracket screw This part replaces 0307407. |
| 70 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 71 |
0307238 |
RONDELLE |
| 72 |
0320248 |
RONDELLE, écrou This part replaces 0312910. |
| 73 |
0305847 |
WASHER, Cable connector |
| 74 |
0304222 |
COLLAR |
| 75 |
0304221 |
SCEW,Collar to cable |
| 77 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 78 |
0310741 |
SEAL, Housing to cover |
| 0278847 |
0278847 |
TRANSOM MOUNT KIT |
| 0312911 |
0322751 |
TEMPLATE, Clamp screw This part replaces 0312911. |
